Crankshaft Main Bearing

Main bearing bore inside diameter 72.400-72.424 mm (2.850-2.851 inch)
Main bearing journal diameter 67.482-67.504 mm (2.6568-2.6576 inch)
Main bearing journal maximum taper 0.004 mm (0.0002 inch)
Main bearing journal maximum out-of-round 0.0075 mm (0.0003 inch) between cross sections
Main bearing journal-to-cylinder block clearance 0.048-0.024 mm (0.001891-0.0009 inch)





Vertical main bearing cap fasteners and sequence.
Stage 1 40 Nm (30 ft. lbs.).
Stage 2 90°.





Side bolts main bearing cap fasteners and sequence.
Step 1 30 Nm (22 ft. lbs.).
Step 2 90°.

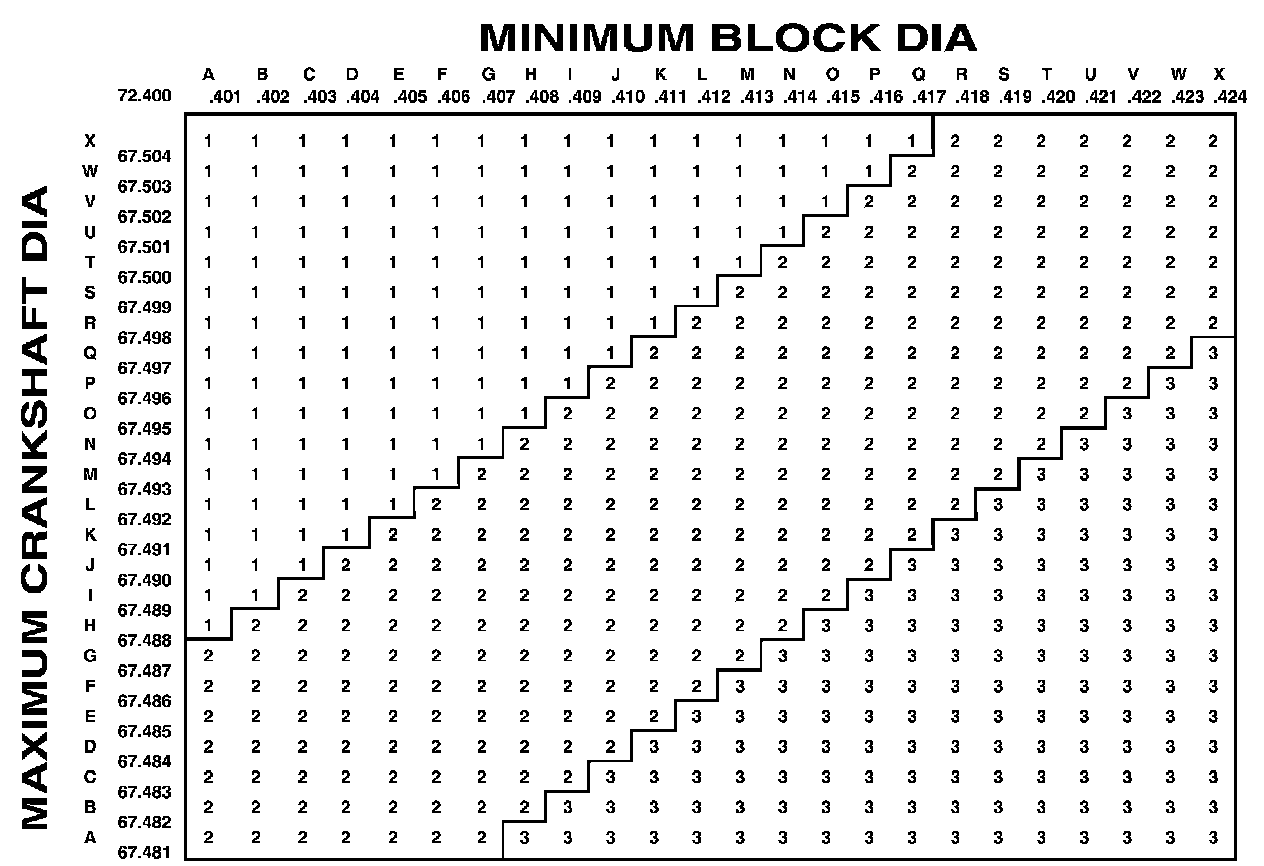

Bearing Select Fit Chart
