EGR Tube: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) VALVE - VALVE AND TUBE

REMOVAL
1. Remove the upper intake manifold.

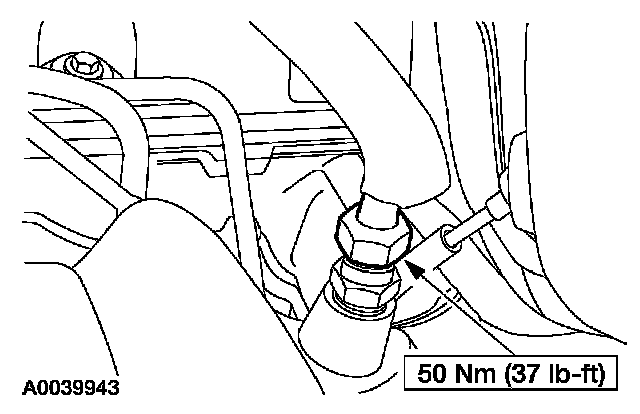

2. Disconnect the EGR valve tube lower fitting.
3. Remove the EGR valve and tube as an assembly.

INSTALLATION
1. To install, reverse the removal procedure.
