EGR Electronic Vacuum Regulator Solenoid: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) VACUUM REGULATOR SOLENOID

REMOVAL
1. Disconnect the battery ground cable.

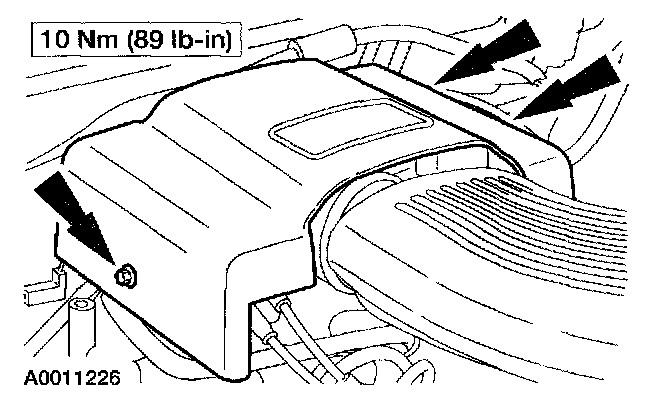

2. NOTE: The 4.6L engine is shown, the 5.4L engines are similar.

Remove the bolts and remove the engine appearance cover (if equipped).

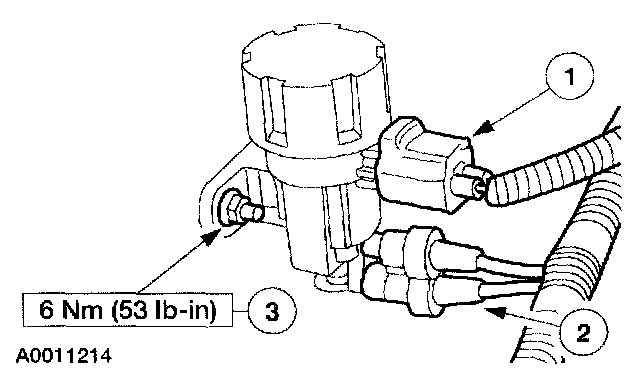

3. Remove the exhaust gas recirculation (EGR) vacuum regulator solenoid.
1 Disconnect the electrical connector.
2 Disconnect the vacuum lines.
3 Remove the bolts (nuts if applicable).

INSTALLATION
1. To install, reverse the removal procedure.
