Tests JH: Tachometer Signal Output CTO
Tests JH: Tachometer Signal Output CTO
PINPOINT TEST JH: TACHOMETER SIGNAL OUTPUT CTO

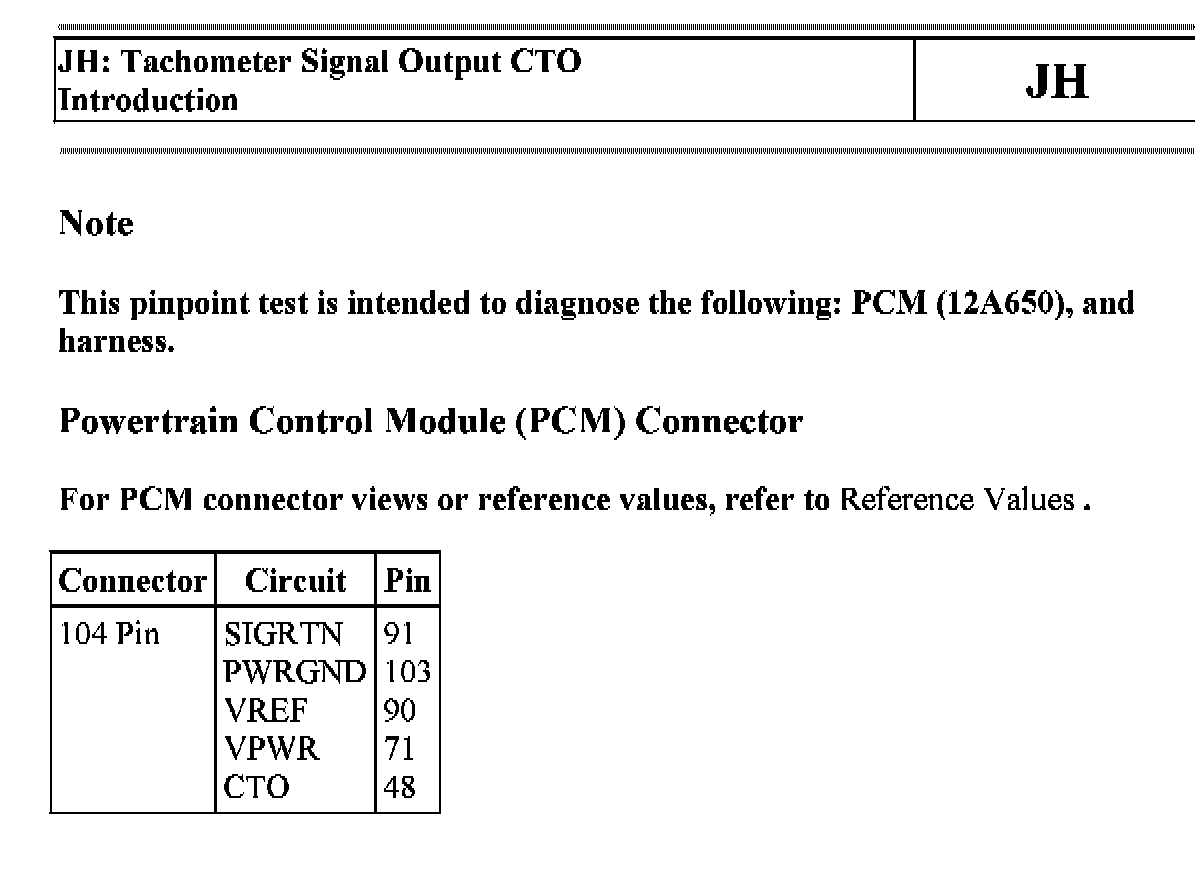

JH Introduction:

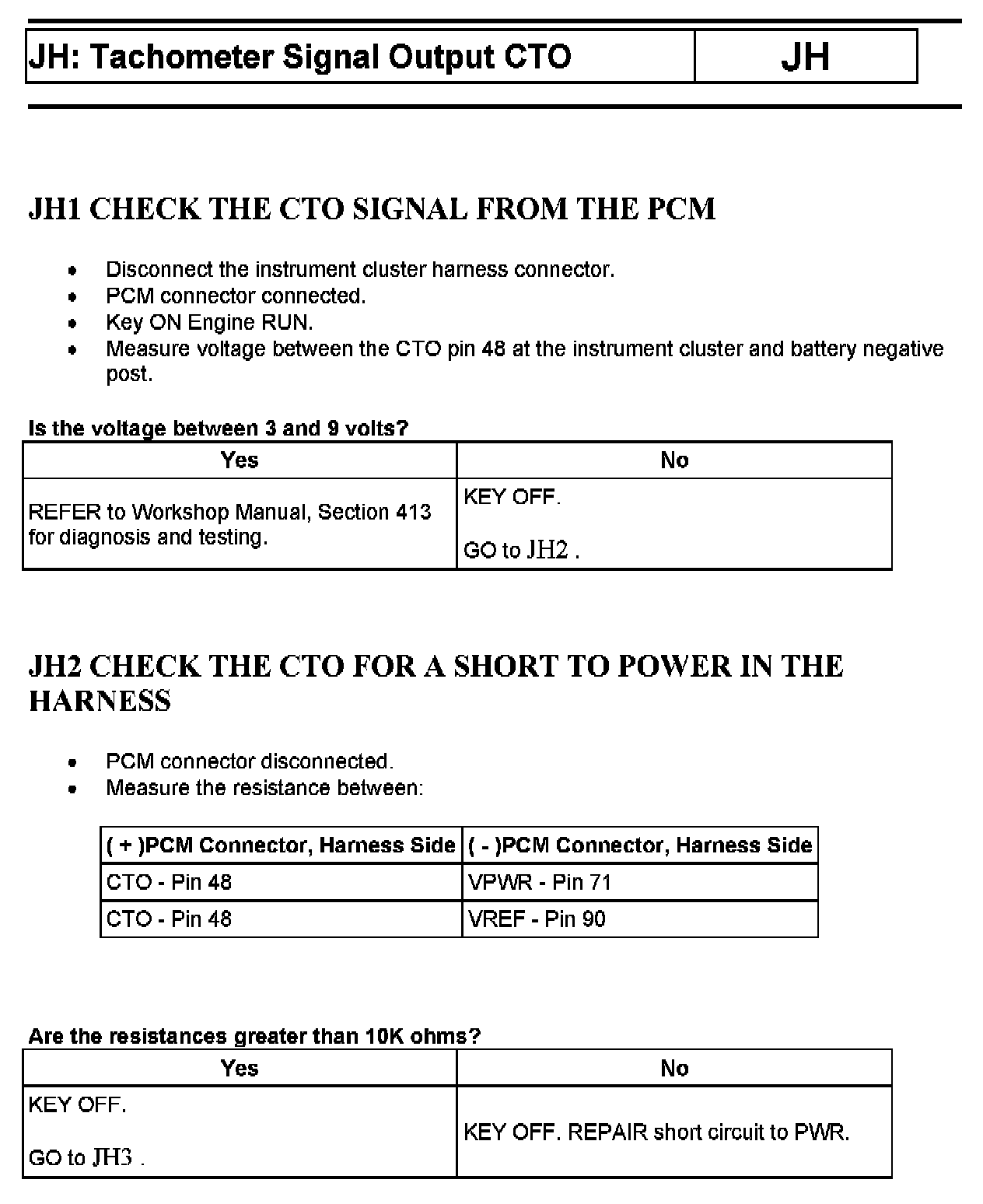

JH1 - JH2:
JH3 - JH5:
