Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation

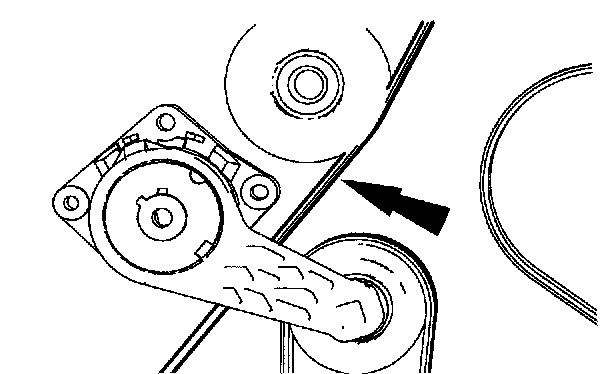

1. Rotate the drive belt tensioner clockwise and remove the drive belt.
2. Refer to the Component Locations for the drive belt routing.
3. To install, reverse the removal procedure.
