Door Switch: Service and Repair
DOOR AJAR SWITCHREMOVAL
1. Remove the door latch.
2. Remove the door ajar switch.

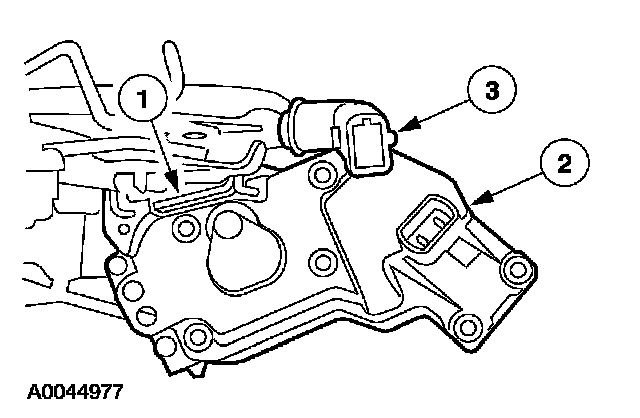

1 Release the door lock actuator locking tab.
2 Remove the door lock actuator.
3 Release the locking tab and remove the door ajar switch.
INSTALLATION
1. To install, reverse the removal procedure.
