Tire Pressure Module: Service and Repair

Tire Pressure Monitoring System Module

Removal and Installation

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage can result.

1. Disconnect the battery ground cable.
2. Remove the LH C-pillar trim panel.

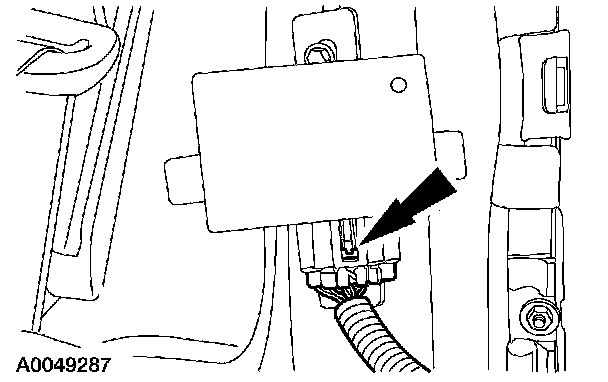

3. Disconnect the electrical connector.

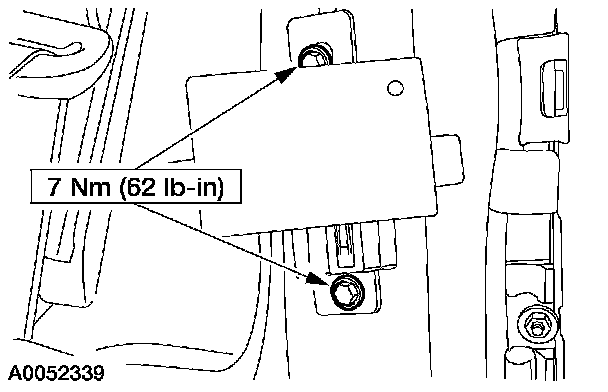

4. Remove the bolts and the module.
5. To install, reverse the removal procedure.
6. Reconfigure the TPMS module.
7. Train the tire pressure sensors.
8. Clear the DTCs. Repeat the self-test.
