Test O

PINPOINT TEST O: THE BLOWER MOTOR IS INOPERATIVE - MANUAL CLIMATE CONTROL

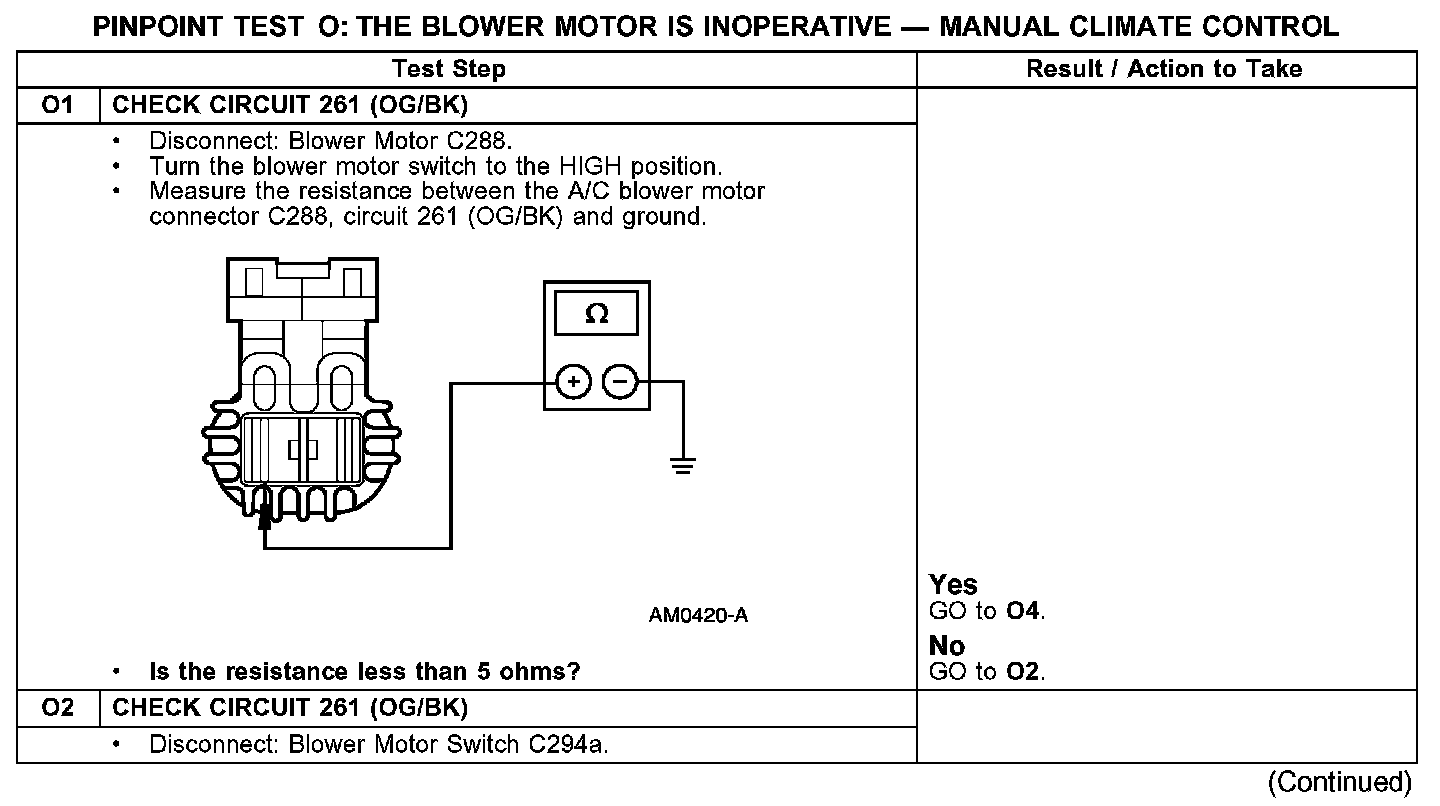

Test O1-O2:

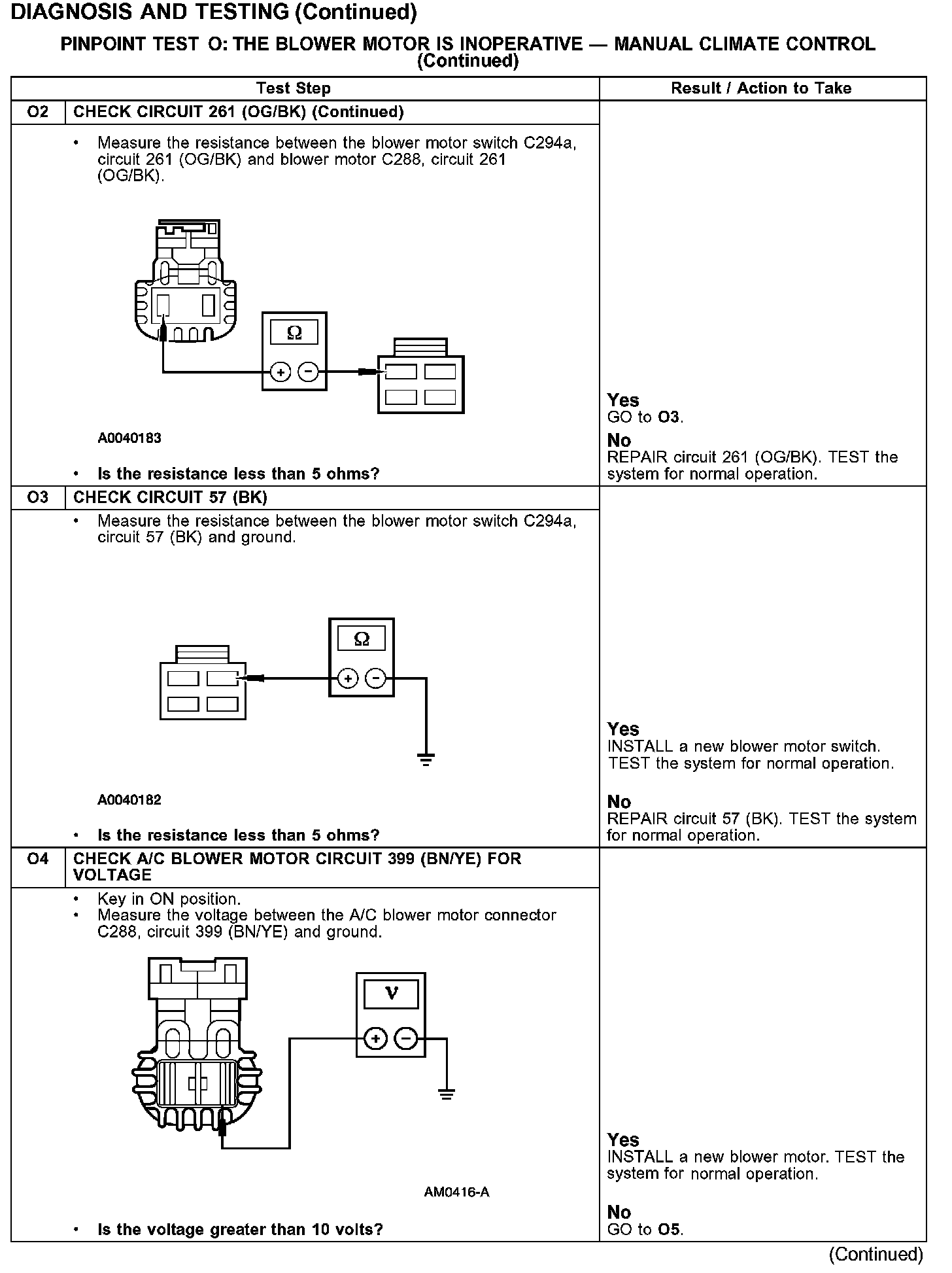

Test O2-O4:

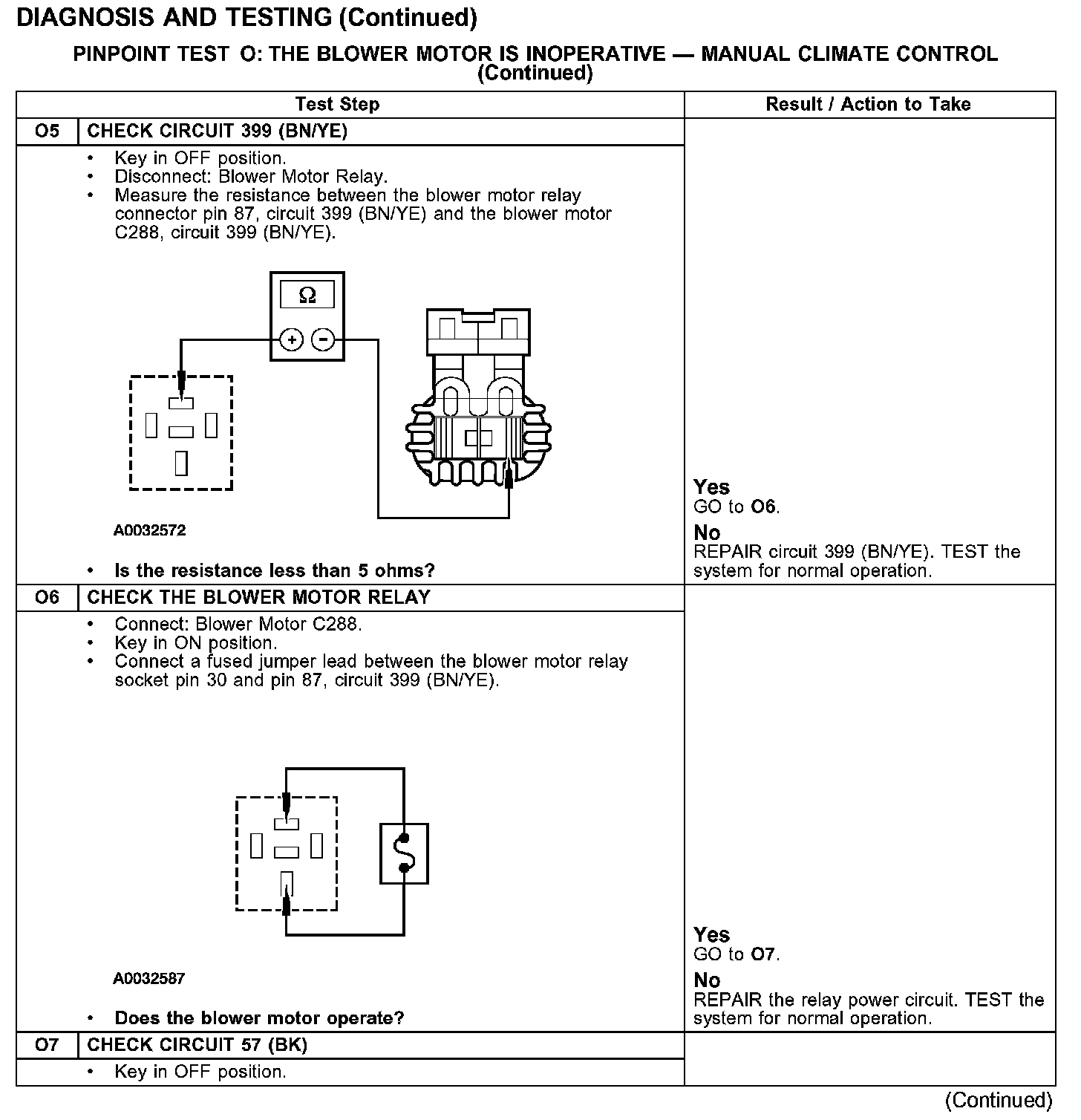

Test O5-O7:

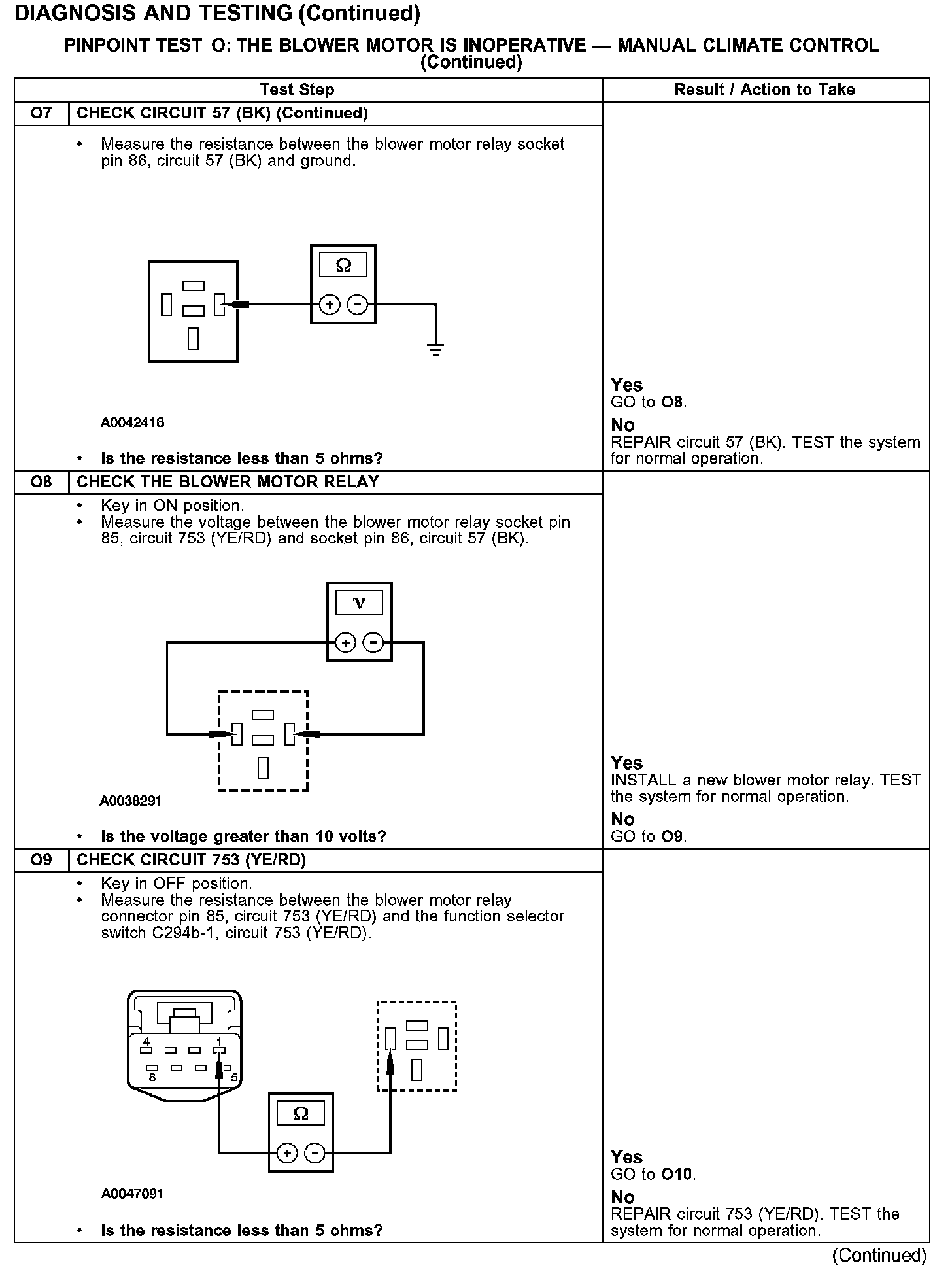

Test O7-O9:






Test O10:
