Test A

PINPOINT TEST A: DTC B2266 OR DTC B2267 - BLEND DOOR FAILURE OR SHORT

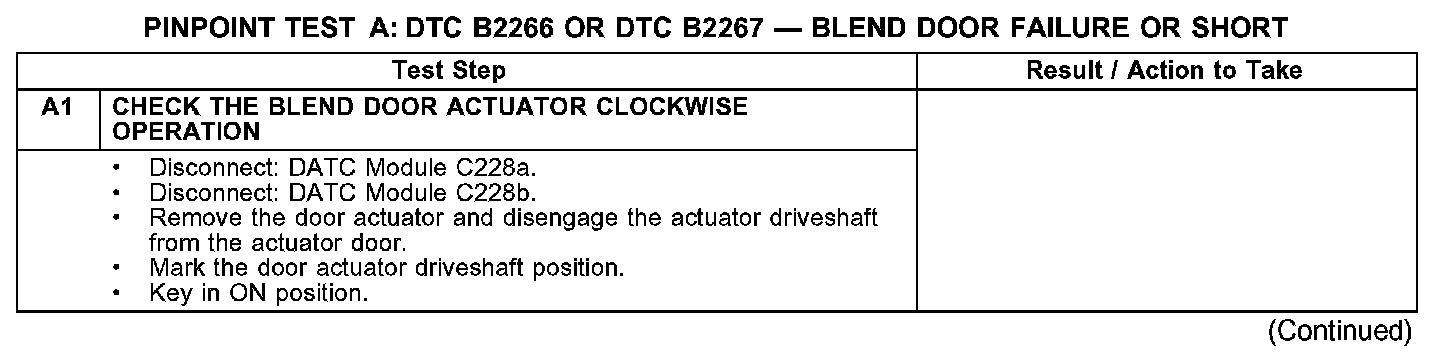

Test A1:

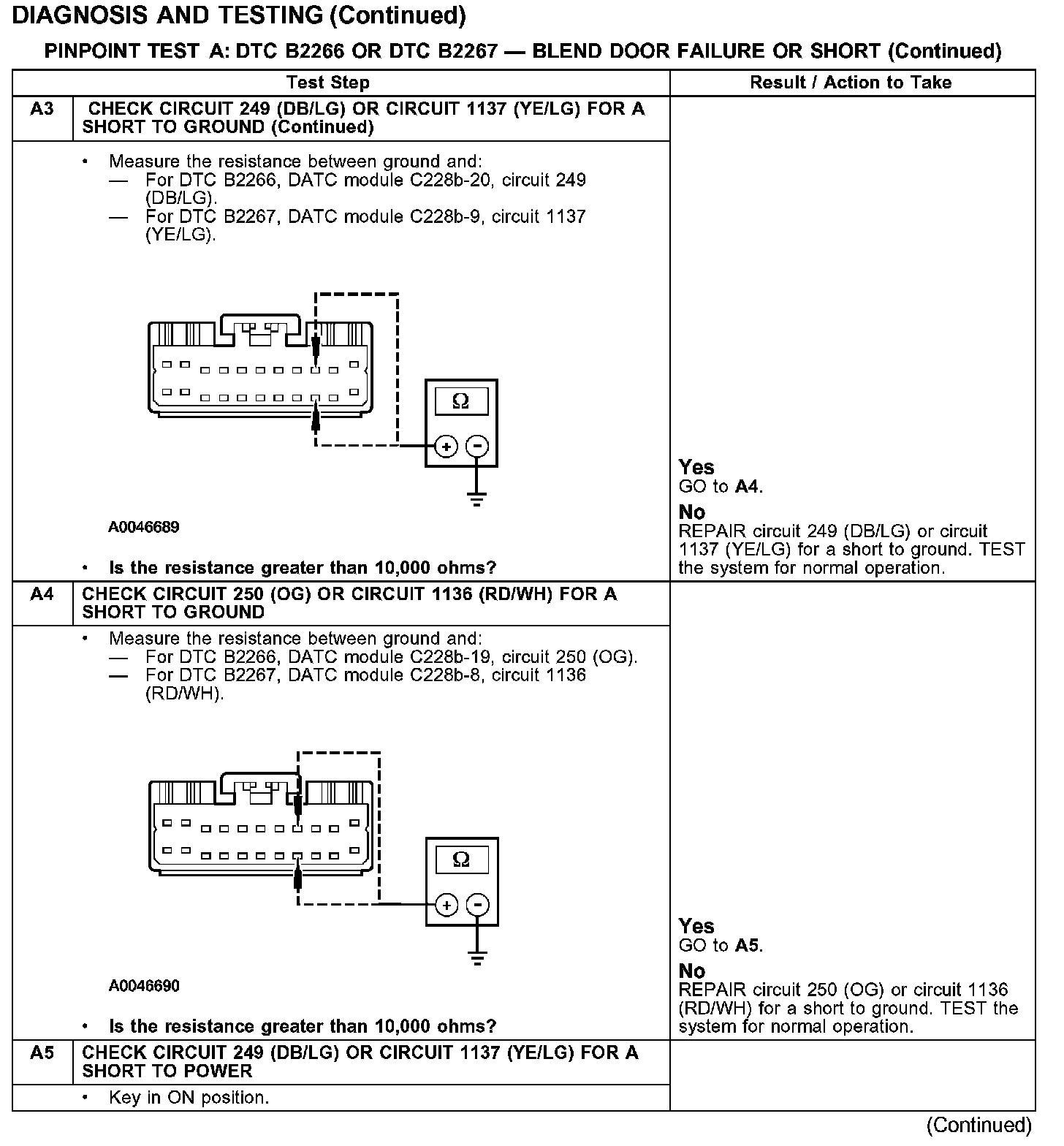

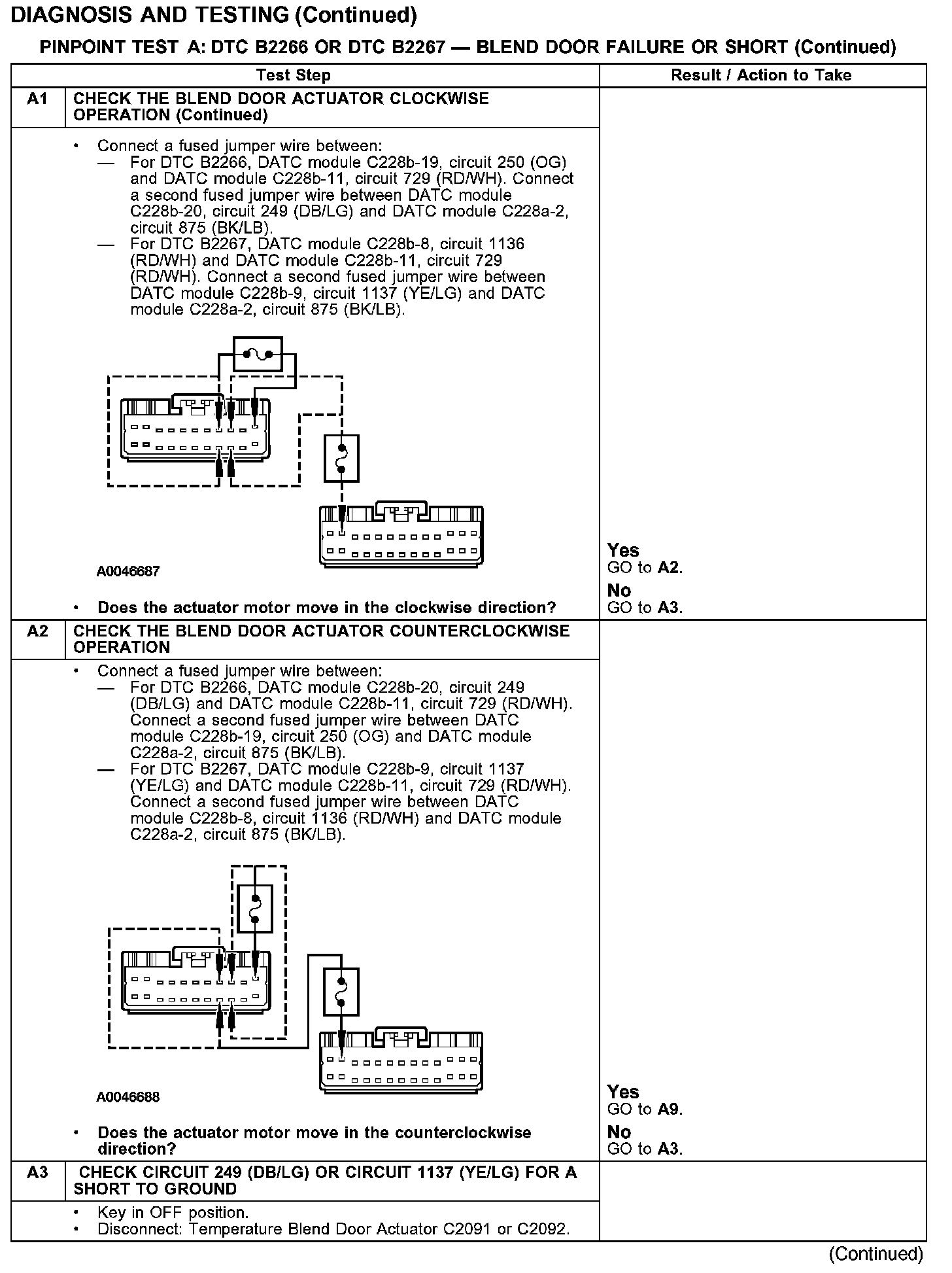

Test A1-A3:

Test A3-A5:

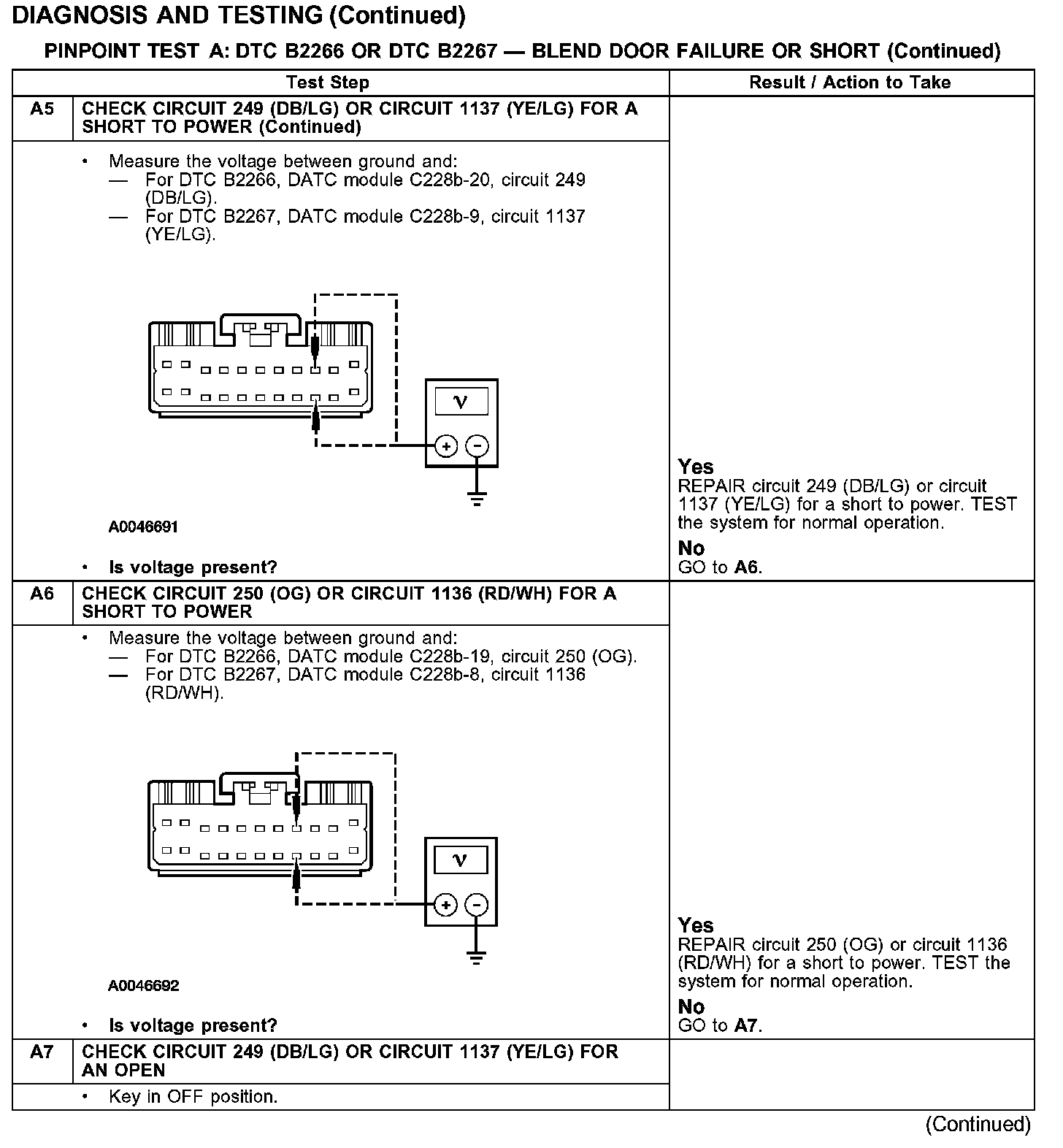

Test A5-A7:

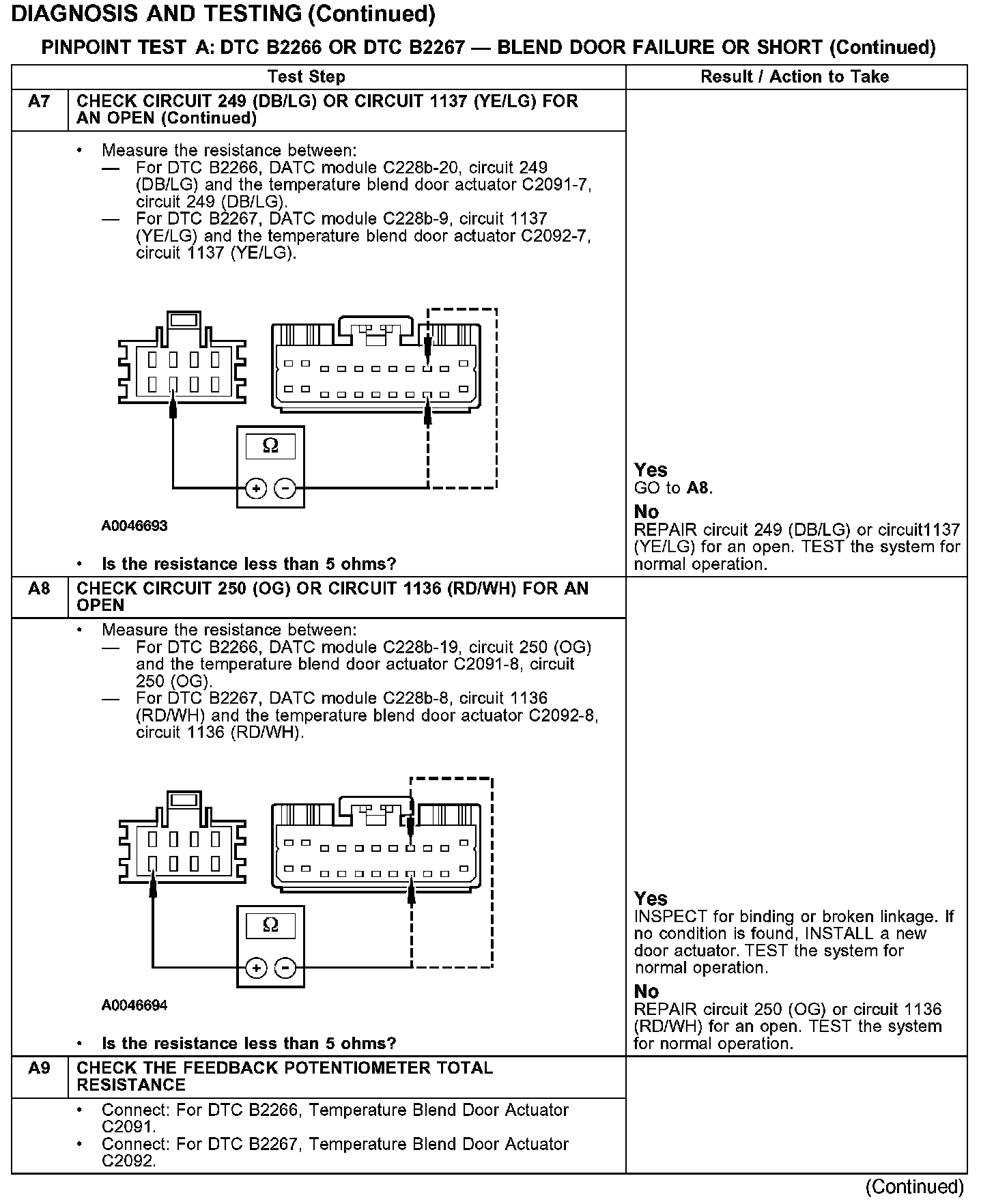

Test A7-A9:

Test A9-A10:

Test A11-A13:

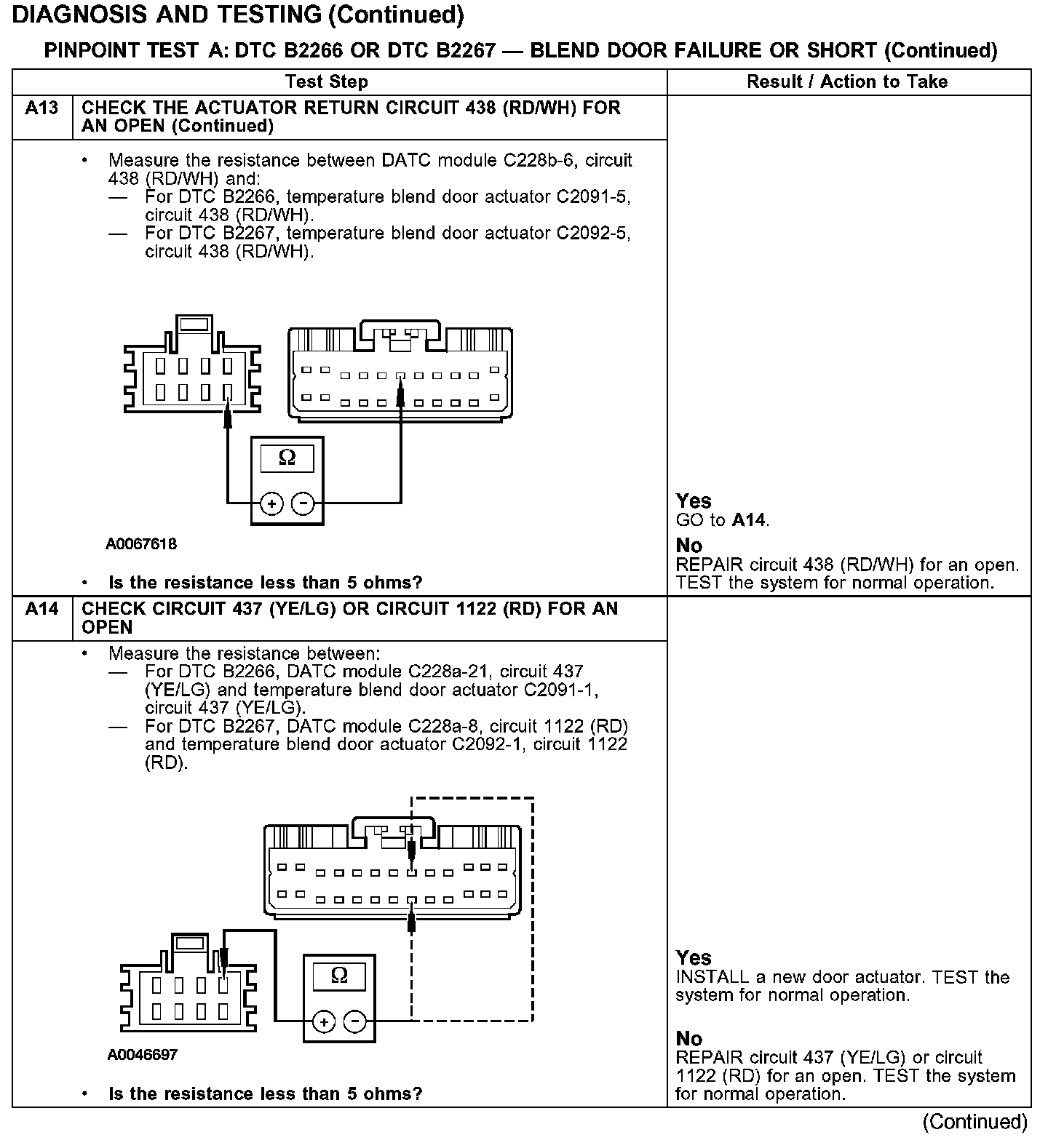

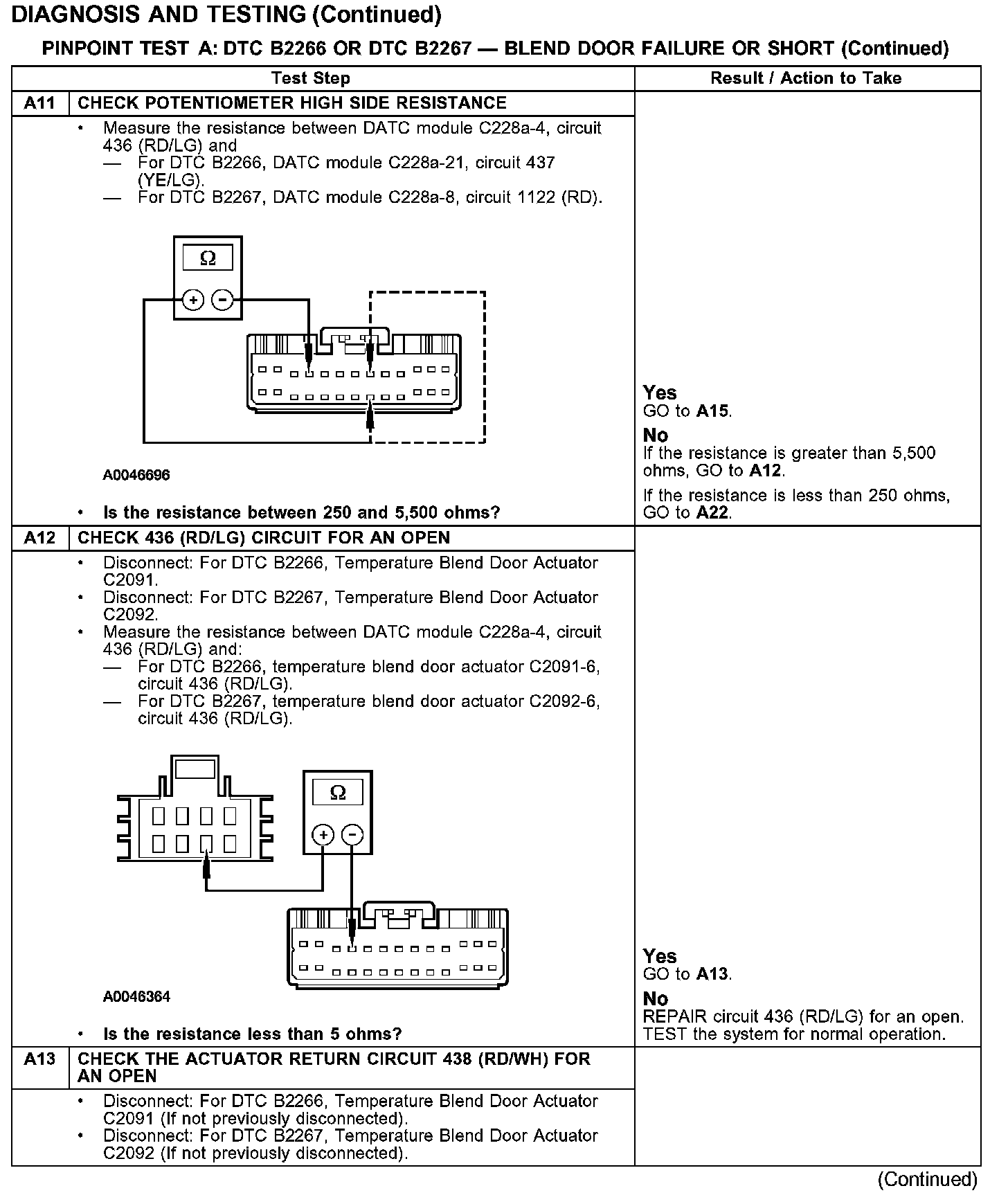

Test A13-A14:

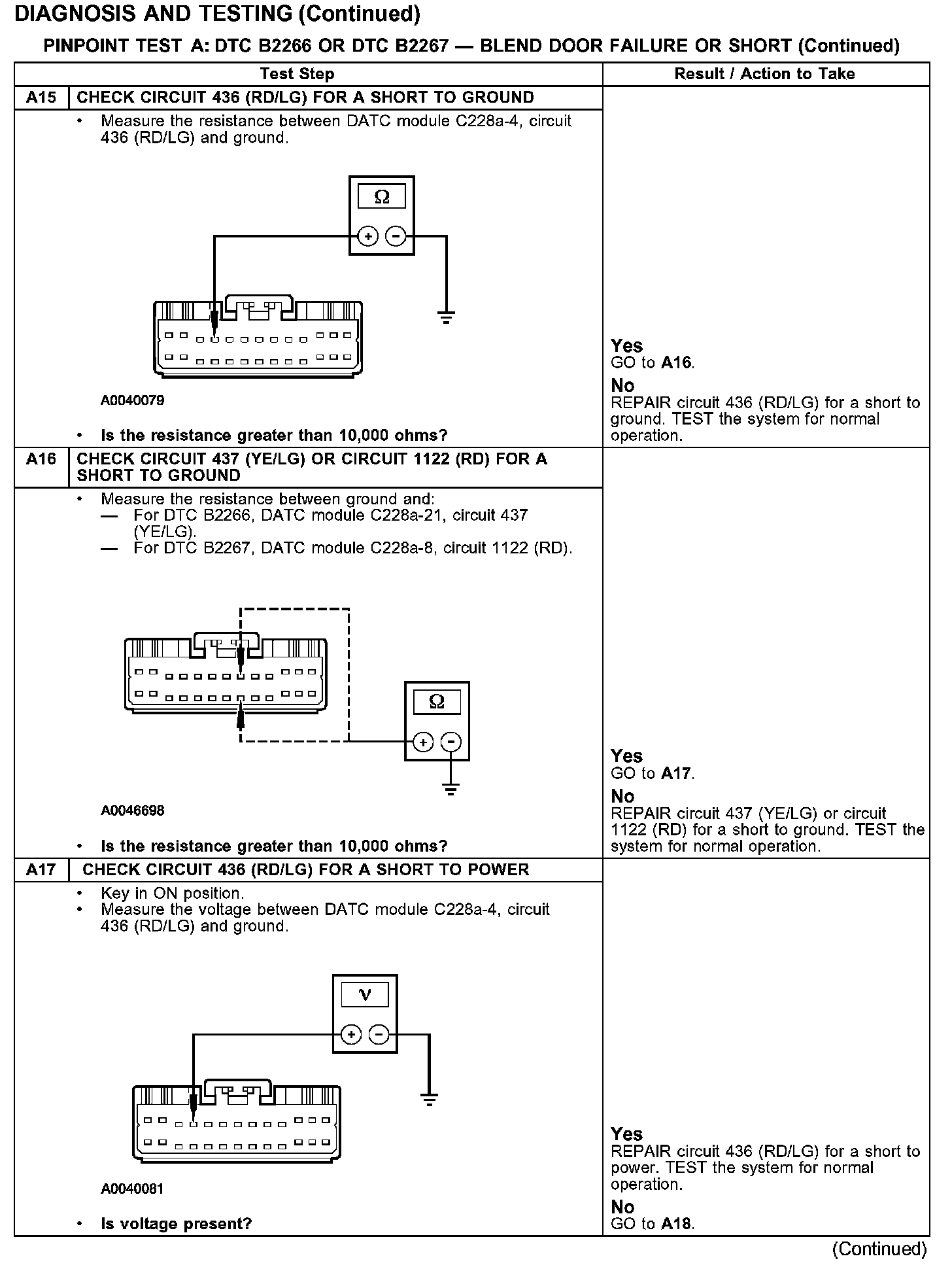

Test A15-A17:

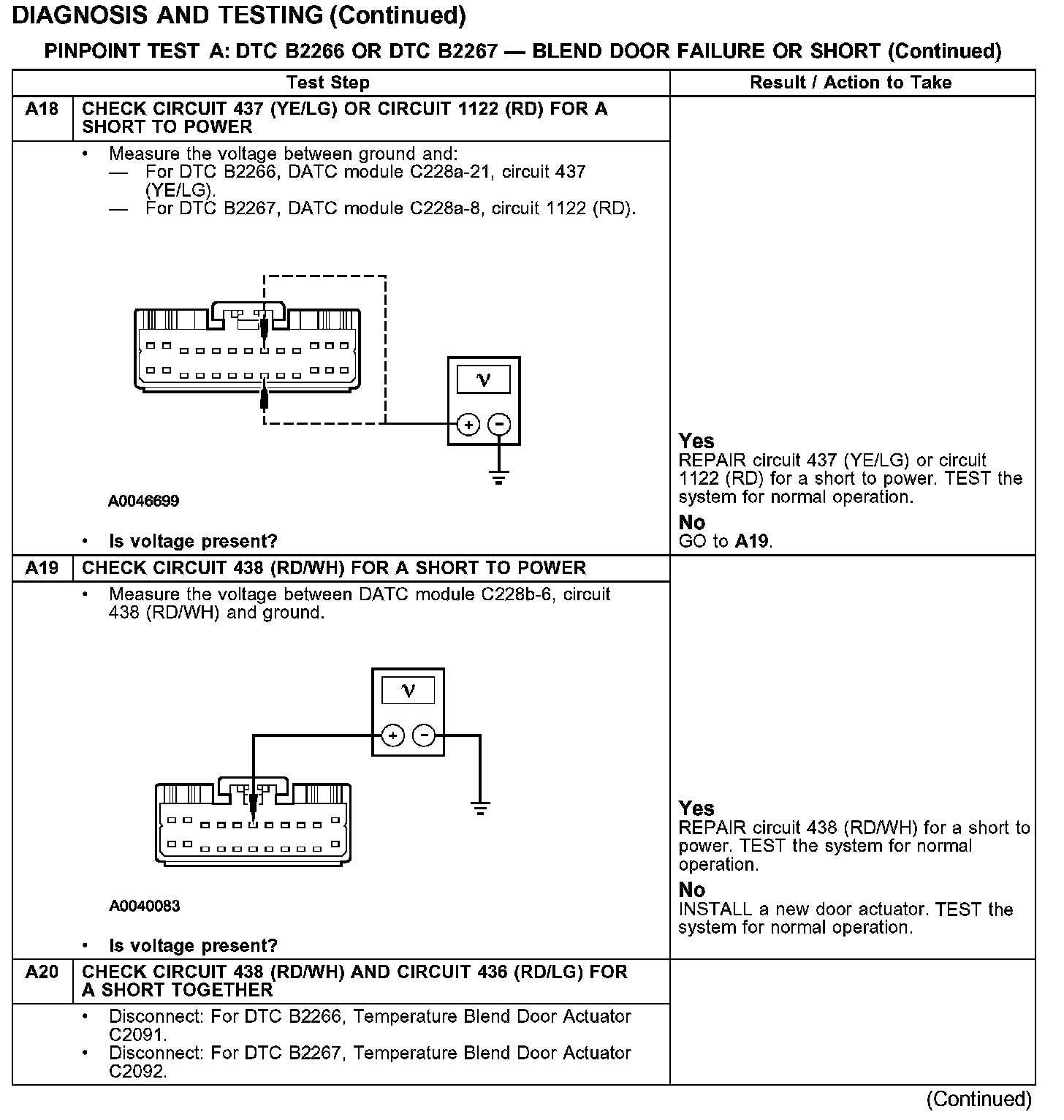

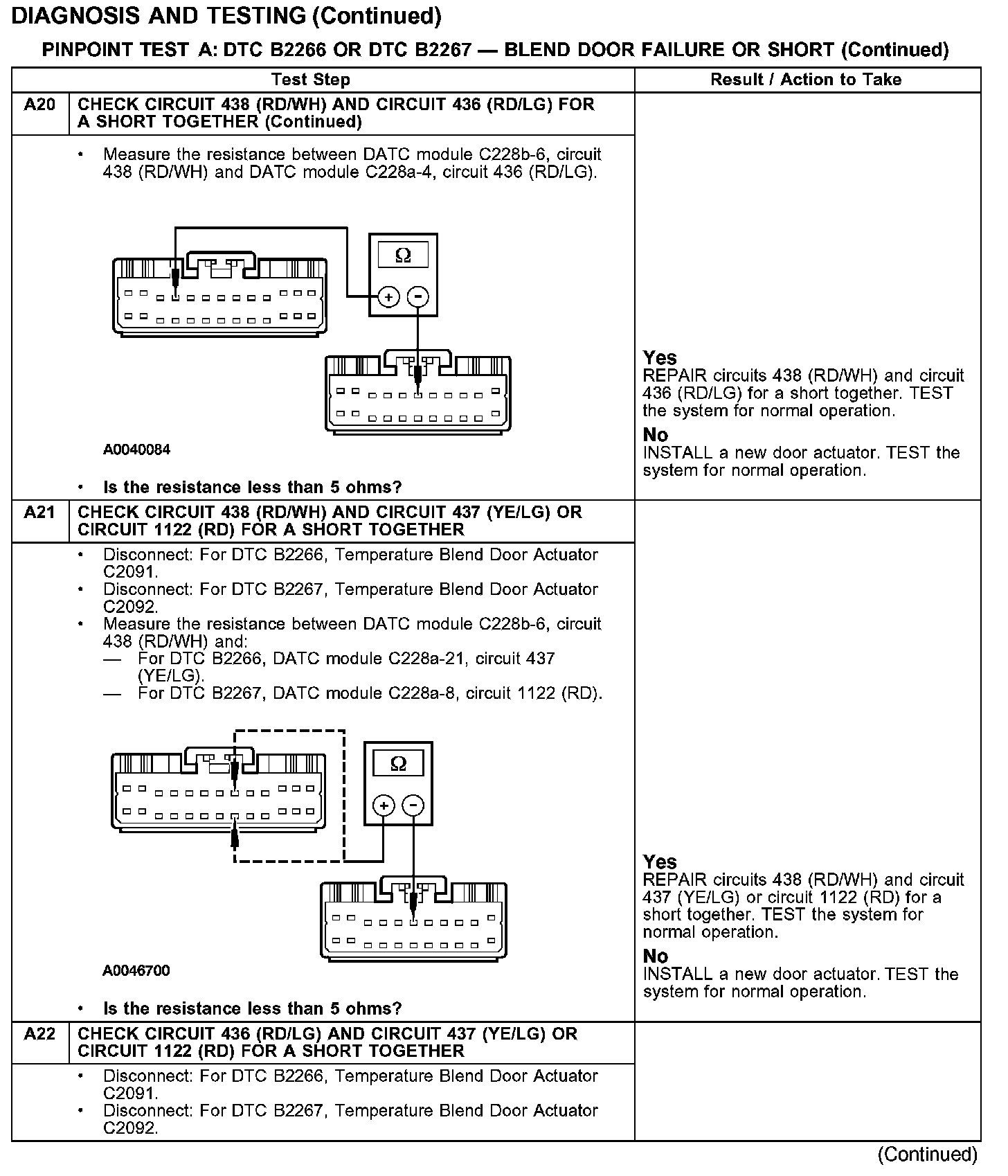

Test A18-A20:

Test A20-A22:

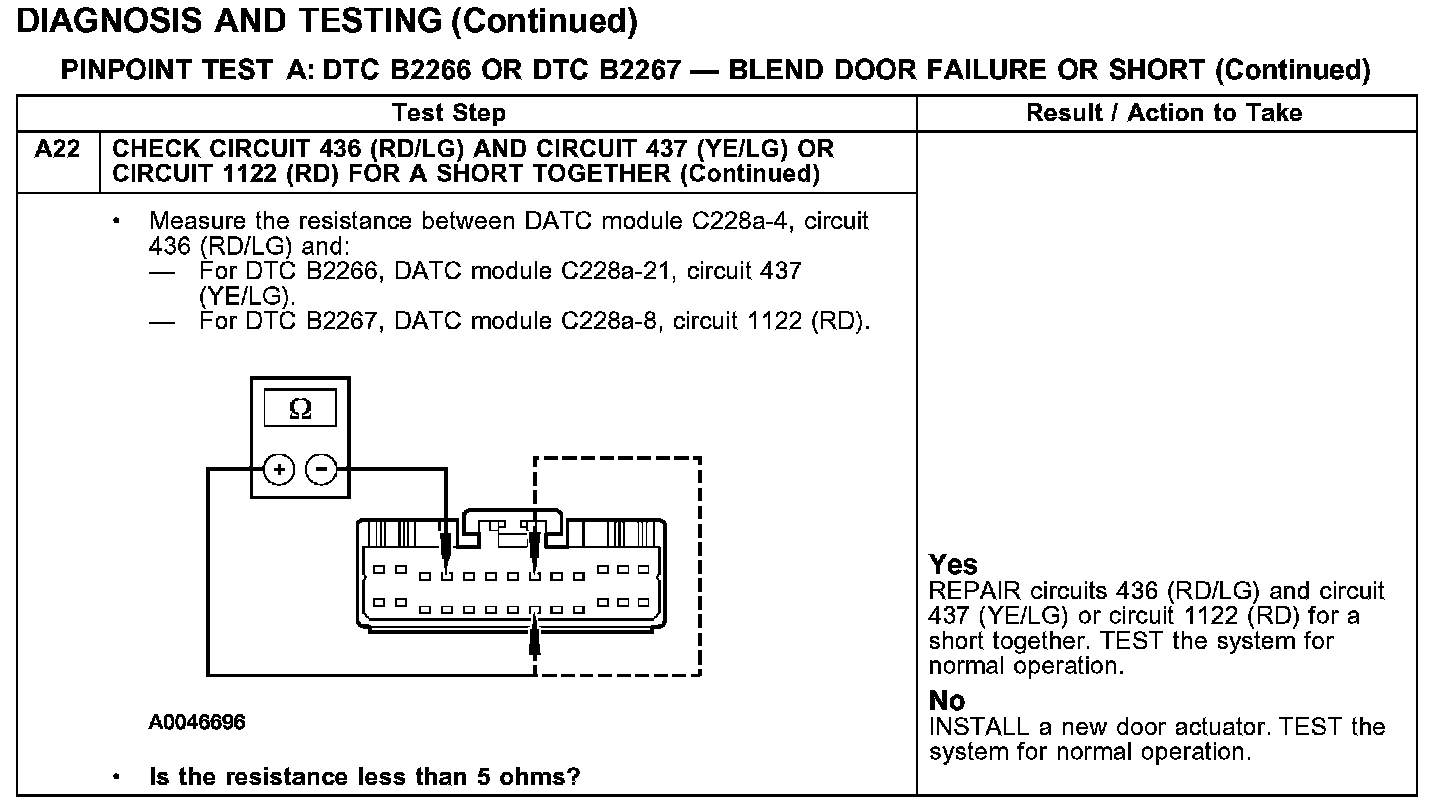

Test A22 Continued:
