Driver Side Register

DRIVER SIDE REGISTER

REMOVAL







1. Remove the screws and remove the lower steering column cover.

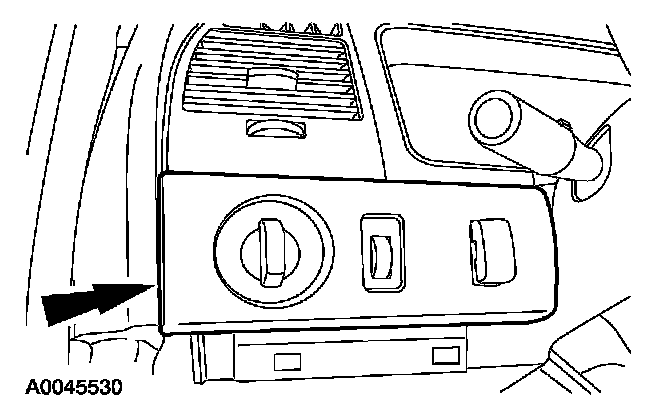

2. Remove the headlamp switch trim panel.
- Disconnect the electrical connectors.

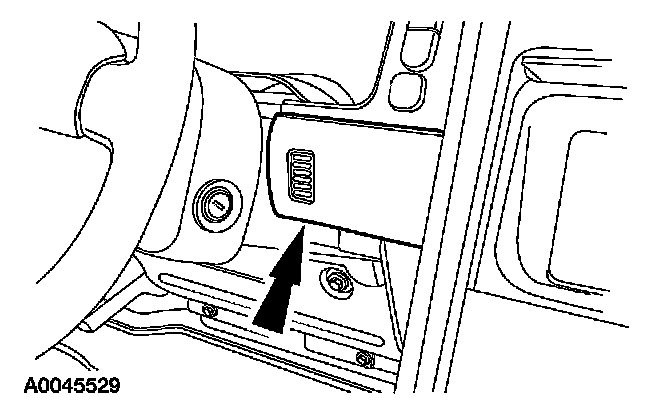

3. Remove the in-vehicle temperature sensor trim panel.
- Disconnect the aspirator hose and in-vehicle temperature sensor electrical connector.

4. Lower the steering wheel to the lowest position.







5. Remove the instrument cluster finish panel lower screws.

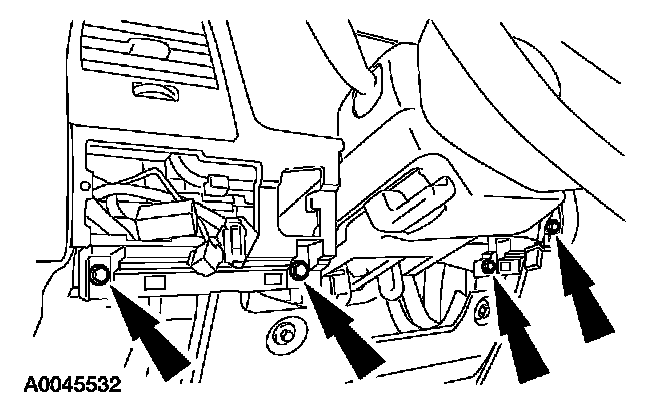

6. Remove the screws and remove the instrument panel finish panel.
- Disconnect the electrical connectors.

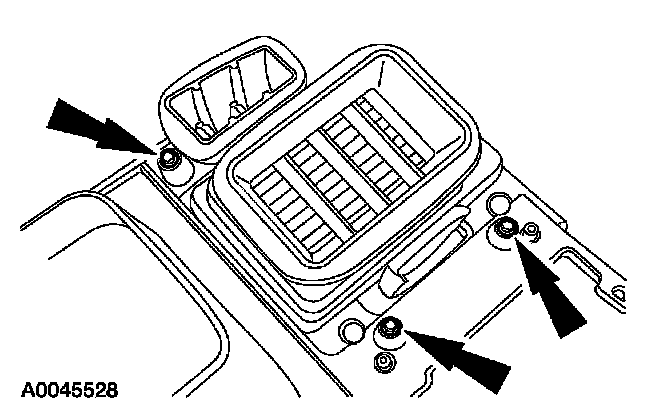

7. Remove the screws and remove the driver side register.

INSTALLATION
1. To install, reverse the removal procedure.
