Disassembly and Assembly

INSTRUMENT PANEL AIR DISTRIBUTION DUCTS

DISASSEMBLY
1. Remove the instrument cluster. Refer to: Instrument Panel, Gauges and Warning Indicators, Instrument Cluster/Carrier, Service and Repair, Removal and Installation, Service and Repair

2. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

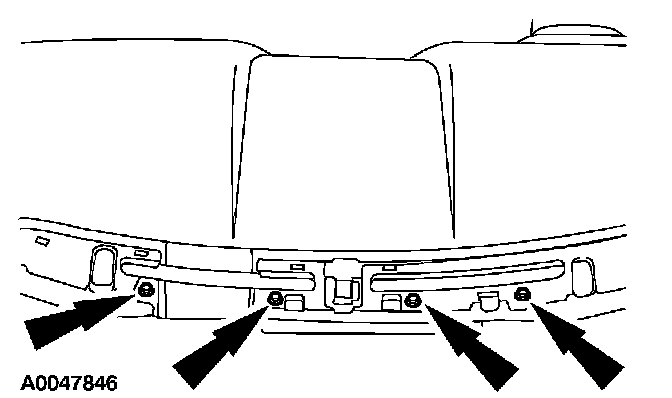

3. Remove the defroster duct screws.

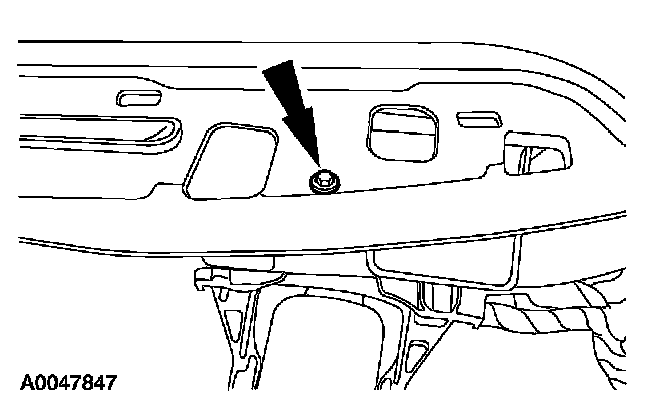

4. Remove the instrument panel upper pad screw.

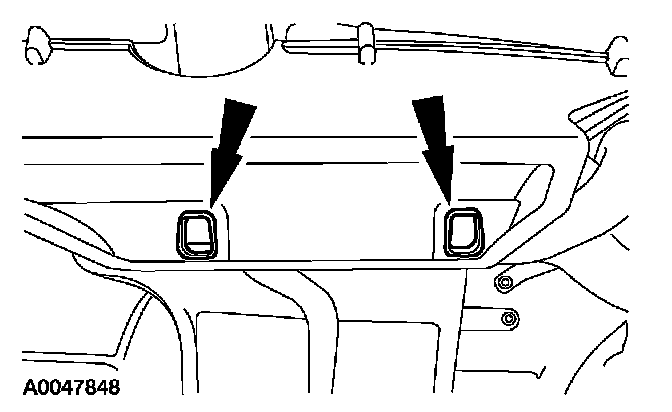

5. Detach the demisters and remove the defroster duct.

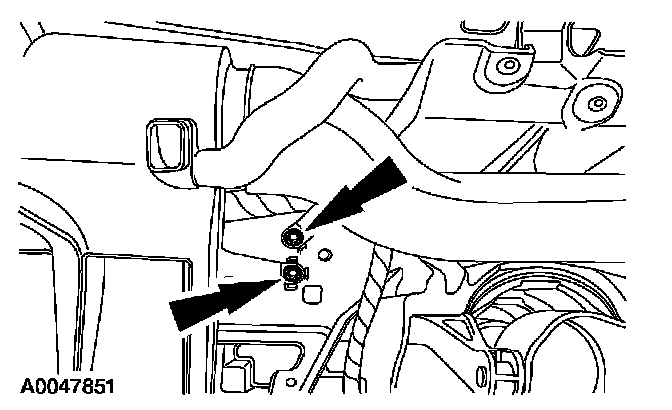

6. Remove the screws.

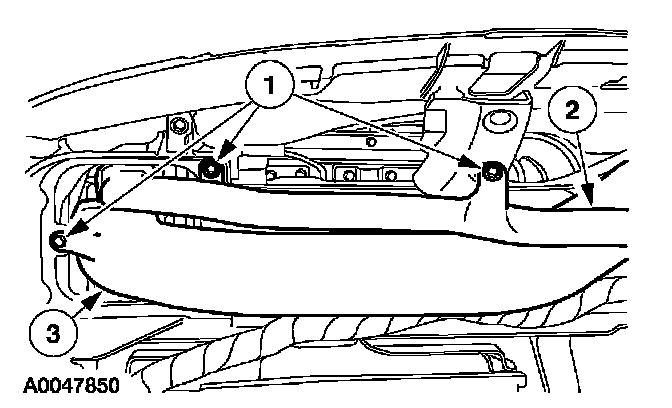

7. Remove the RH ducts.
1 Remove the screws.
2 Remove the RH demister.
3 Remove the RH instrument panel duct.

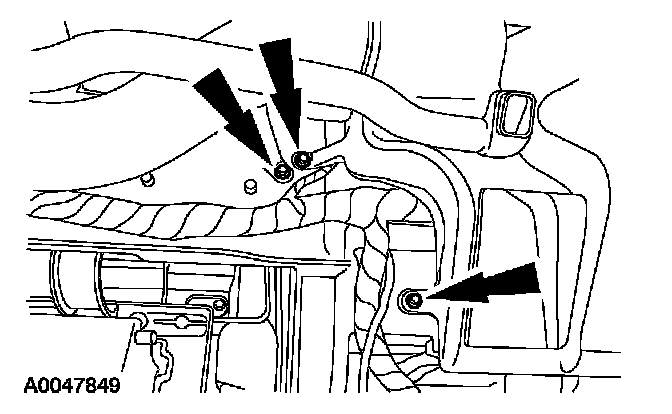

8. Remove the screws and the center instrument panel duct.

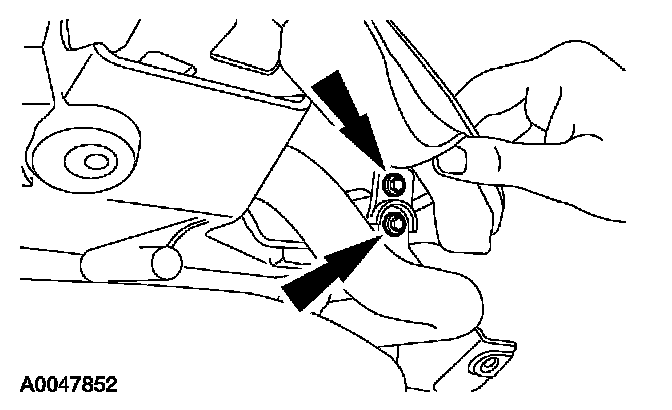

9. Remove the screws.

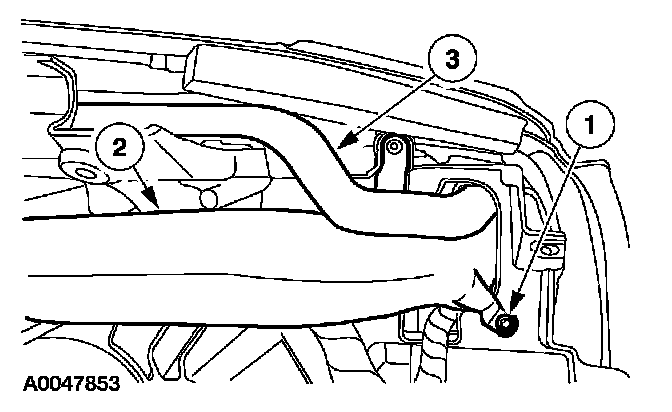

10. Remove the LH ducts.
1 Remove the screw.
2 Rotate upwards, and remove the LH instrument panel duct.
3 Remove the LH demister.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
