Home >> Lincoln Truck >> 2004 >> Navigator 2WD V8-5.4L DOHC VIN R >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> 4R70W >> Bushings, Bearing and Thrust Washer Locator

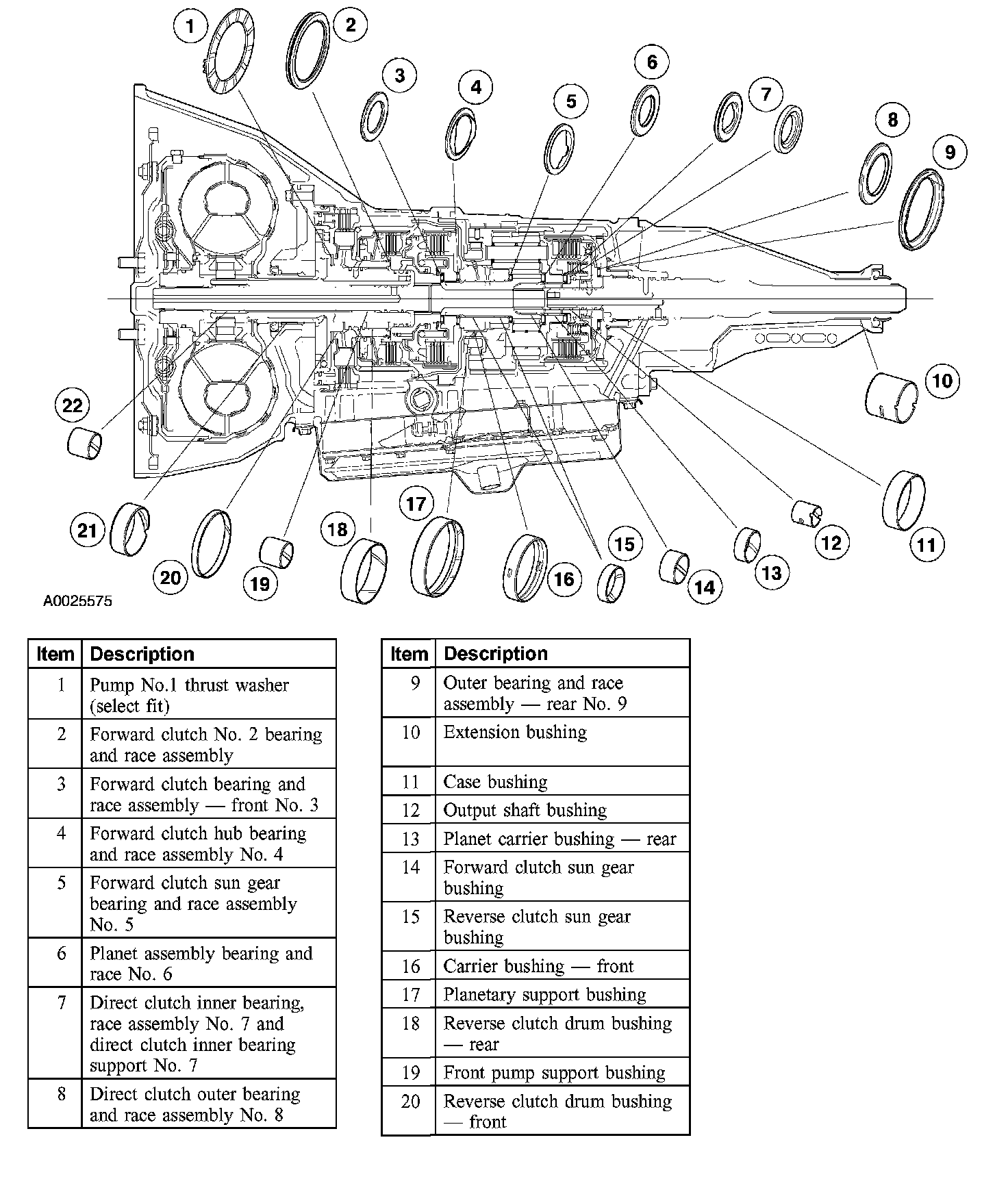

Bushings, Bearing and Thrust Washer Locator

Part 1:



Part 2:

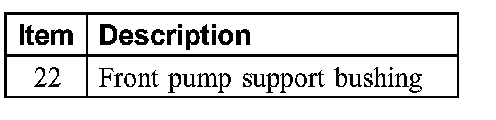

Part 3:
