Parking Brake Control: Service and Repair

Removal and Installation





1. NOTE: The parking brake control is shown removed for clarity.

Make sure tension on the parking brake cables is fully released.
^ While a helper pulls down on the front cable, insert a pin through the park brake control frame and cam.

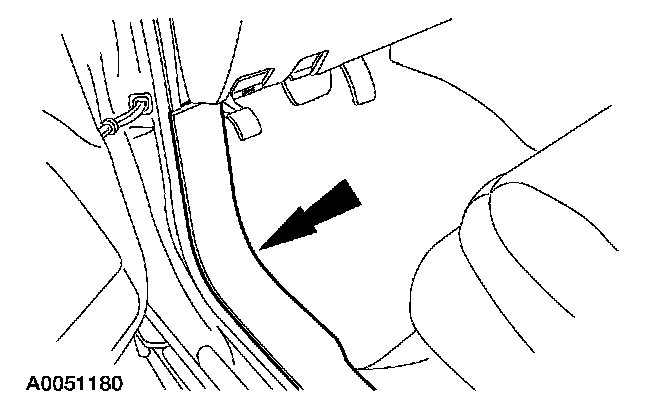

2. Remove the door scuff plate.

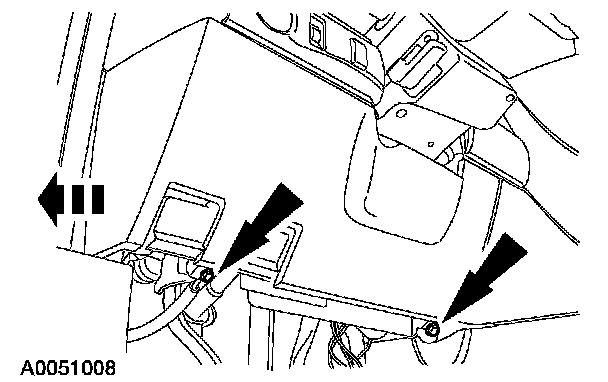

3. Remove the screws and the finish panel.
^ Pull the weatherstrip back to release the edge of the panel.

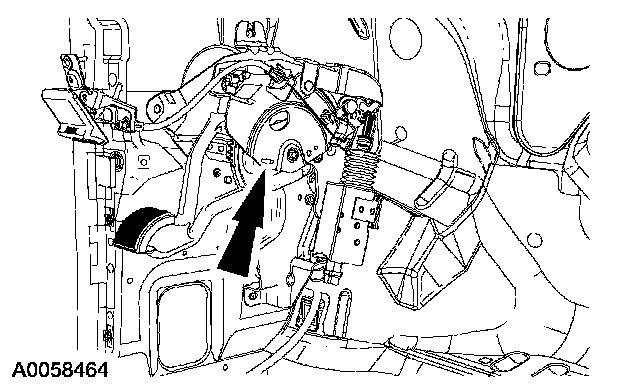

4. Remove the release handle bolt.

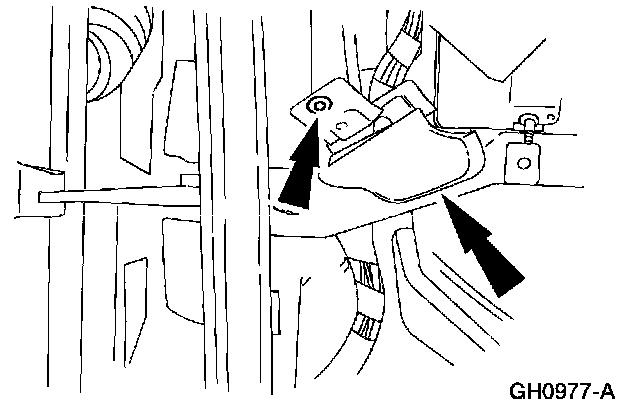

5. Remove the retainer and the cowl trim panel.

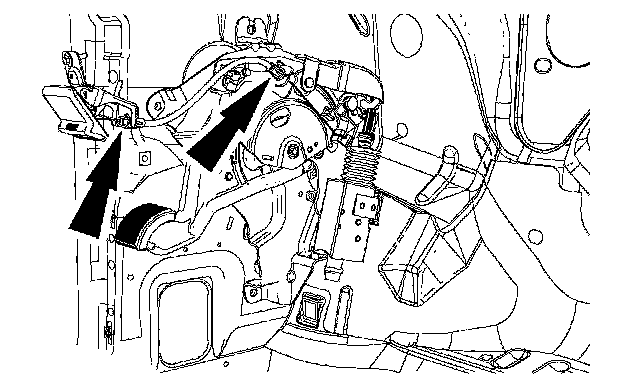

6. Disconnect the electrical connector at the solenoid.

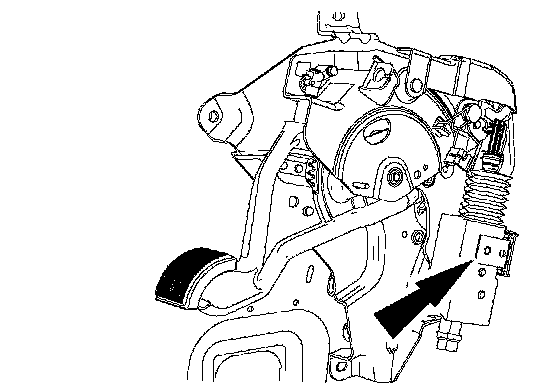

7. Disconnect the electrical connector at the park detection switch.

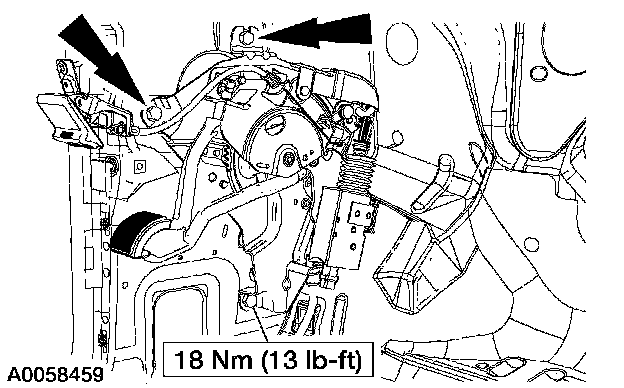

8. Remove the park brake control bolts.

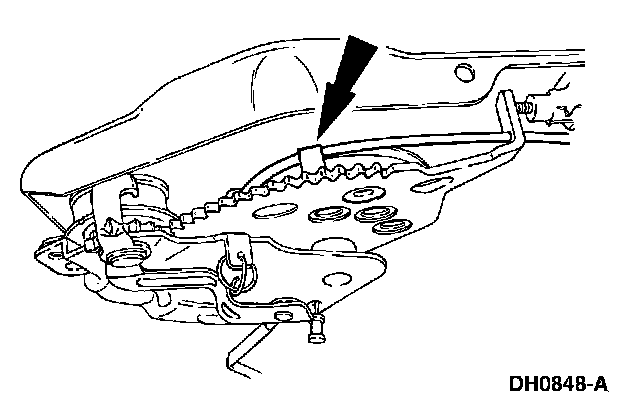

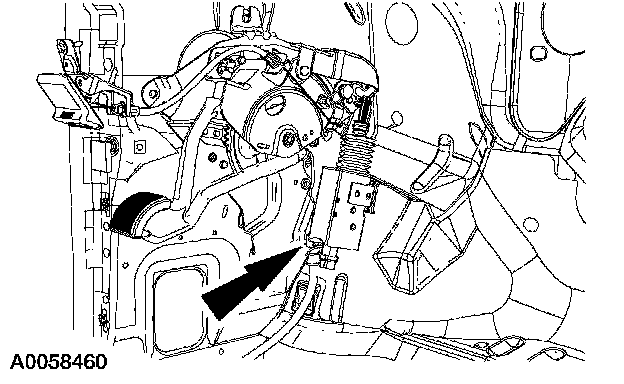

9. Straighten the tab on the take-up spool.

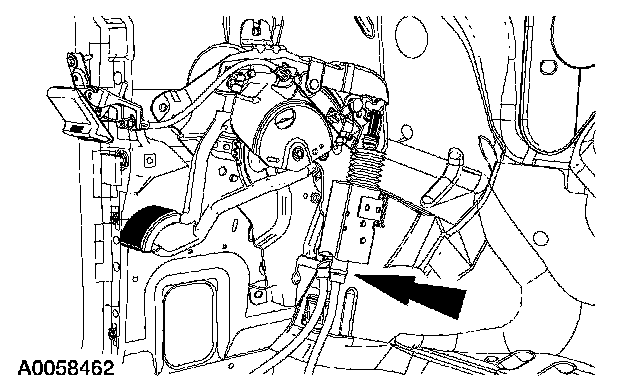

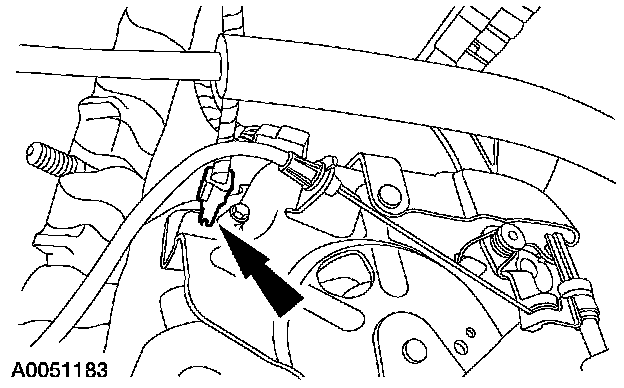

10. Disconnect the conduit and remove the park brake control.
^ Compress the conduit retainer to disconnect it from the control.





11. Remove the release handle and cable assembly.





12. Remove the release solenoid.
^ Pry the mounting bracket apart slightly to release the solenoid.
13. To install, reverse the removal procedure.
