Brake Disc Shield

1. Remove the brake disc.

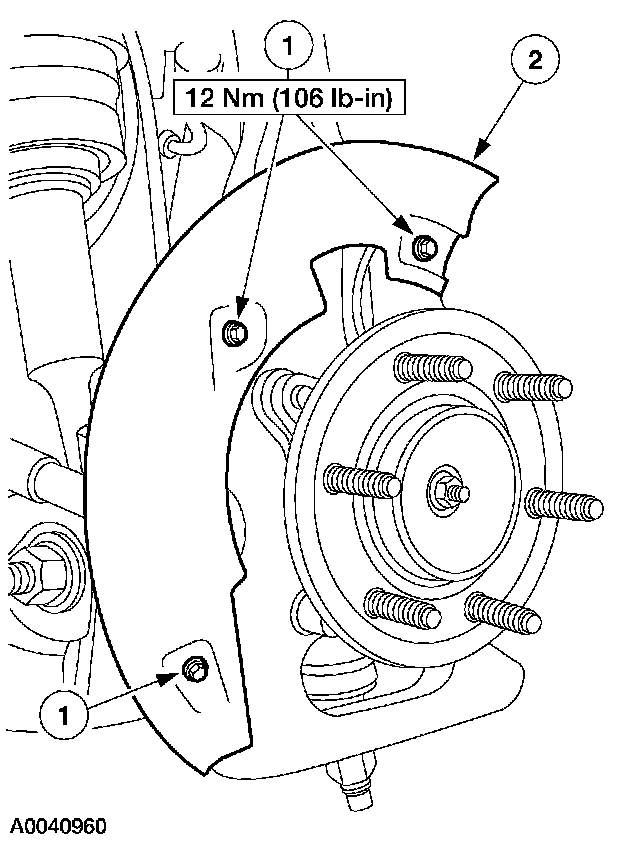

2. Remove the brake disc shield.
1 Remove the brake disc shield screws.
2 Remove the brake disc shield.
3. To install, reverse the removal procedure.
