Sensor, Rear
Removal and Installation1. Remove the parking brake shoes.

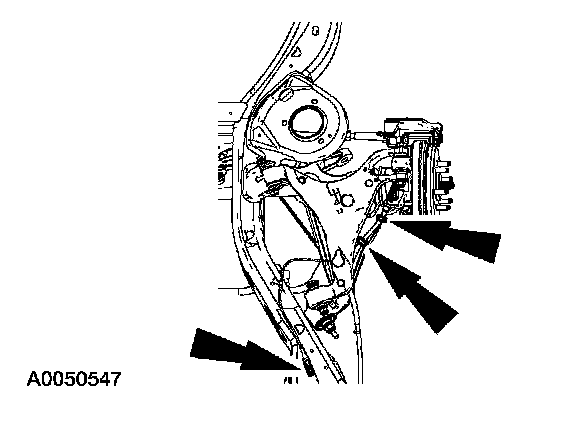

2. Disconnect the wheel speed sensor wire from the retaining clips.

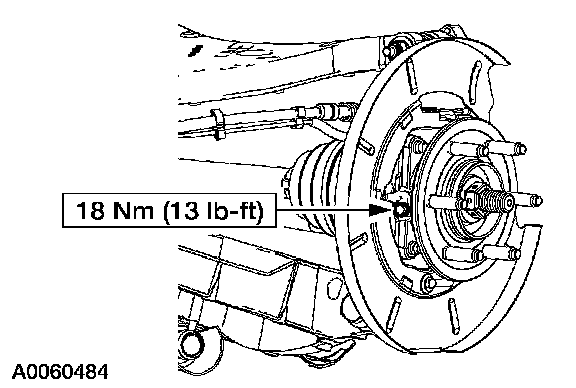

3. Remove the bolt and remove the rear wheel speed sensor.
4. To install, reverse the removal procedure.
1. Remove the parking brake shoes.
2. Disconnect the wheel speed sensor wire from the retaining clips.
3. Remove the bolt and remove the rear wheel speed sensor.
4. To install, reverse the removal procedure.
