Sensor, Front

Removal and Installation
1. If equipped, turn the air suspension switch to the OFF position.

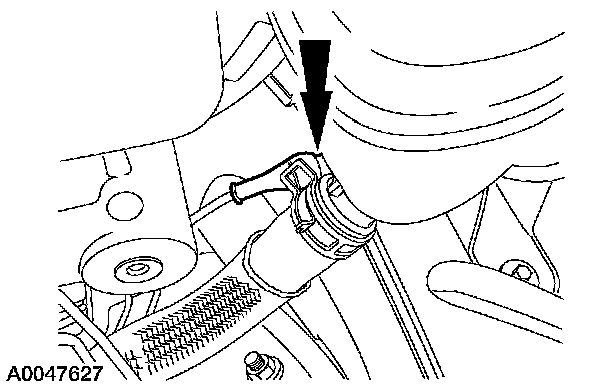

2. Disconnect the wheel speed sensor connector.
3. Remove the wheel and tire assembly.

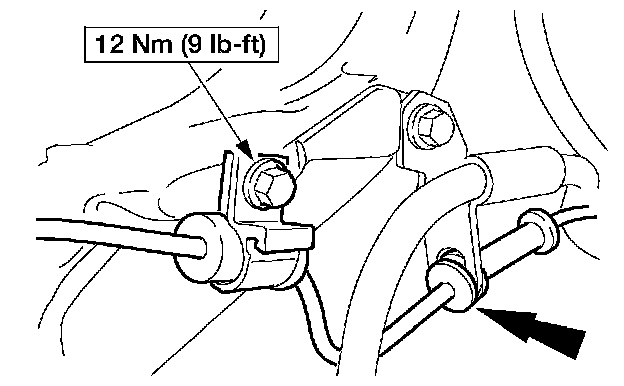

4. Remove the bolt and detach the retainers.

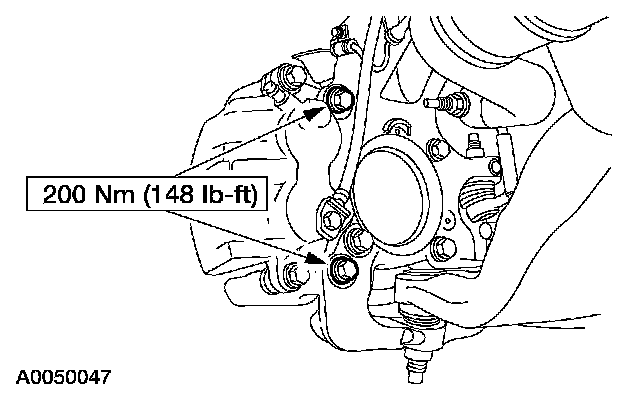

5. CAUTION: Do not allow the caliper to hang from the brake hose or damage to the hose can result.

Remove the bolts, and position the caliper, pads and anchor plate aside.





6. Remove the brake disc.

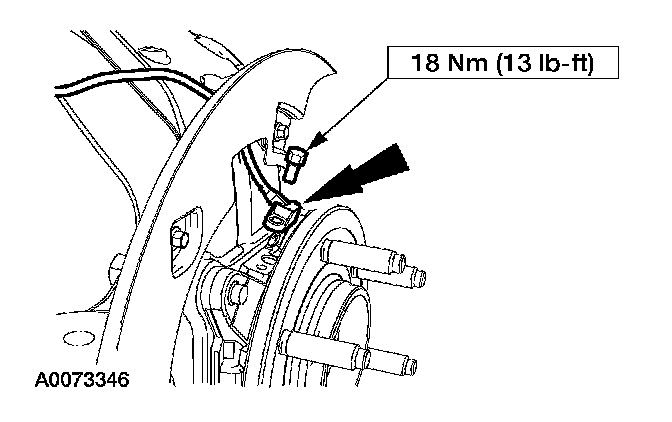

7. Remove the bolt and the front wheel speed sensor.
8. To install, reverse the removal procedure.
