Home
>>
Lincoln Truck
>>
2004
>>
Navigator 2WD V8-5.4L DOHC VIN R
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
O
O
PINPOINT TEST O: THE STABILITY ASSIST CANNOT BE DISABLED

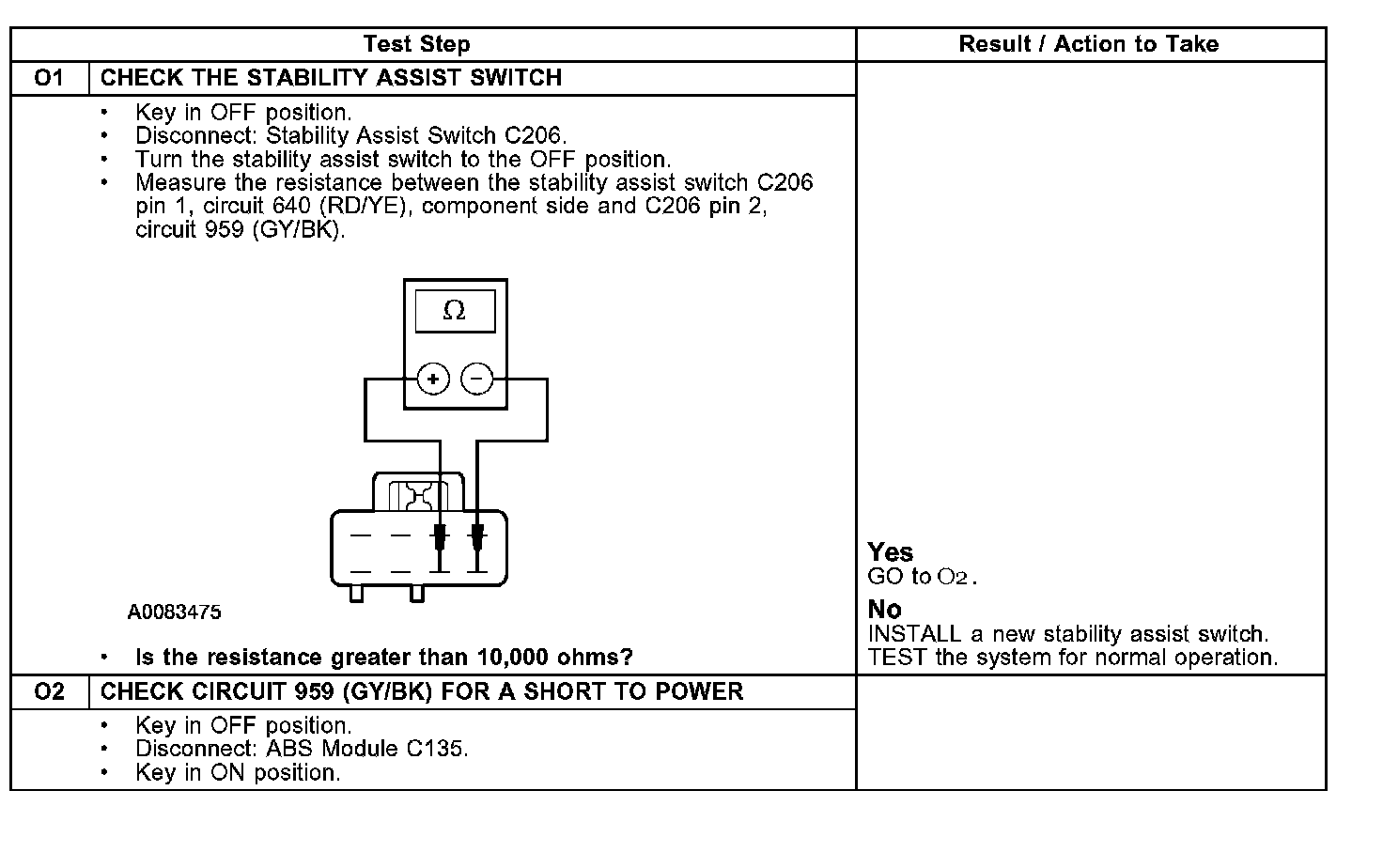

Steps O1 - O2:

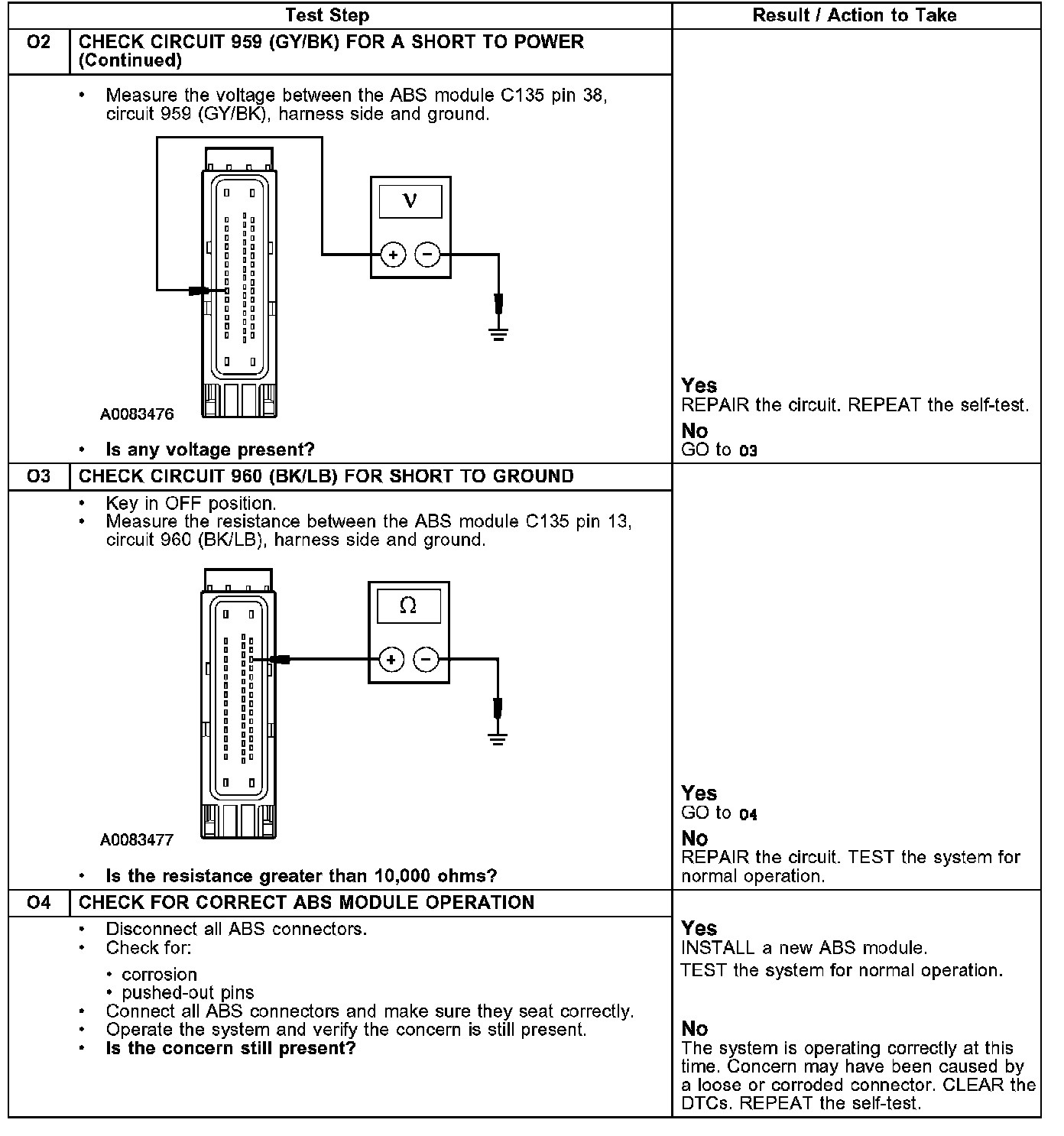

Steps O2 - O4:
CAUTION:
Use the flex probe kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
