Test U

PINPOINT TEST U: A SINGLE CLIMATE CONTROLLED SEAT DOES NOT OPERATE CORRECTLY - ONE OR MORE CLIMATE CONTROLLED SEAT SWITCH LEDs ARE INOPERATIVE

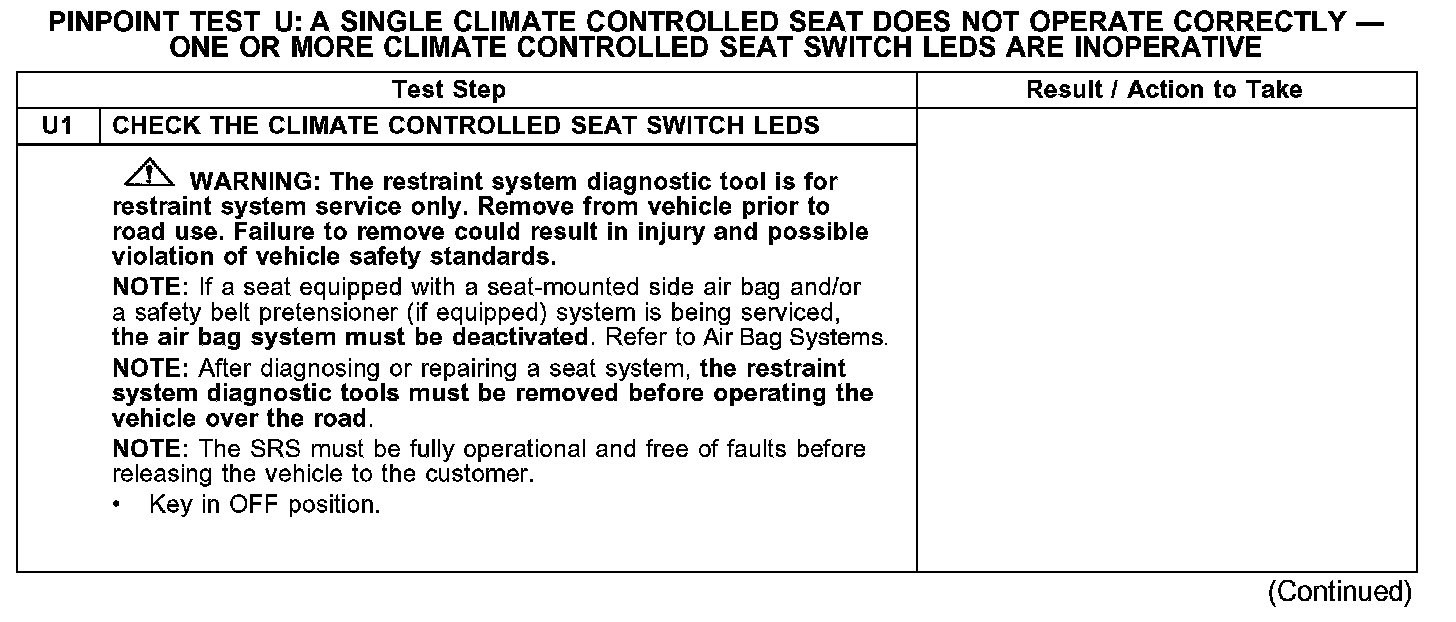

Test U1:

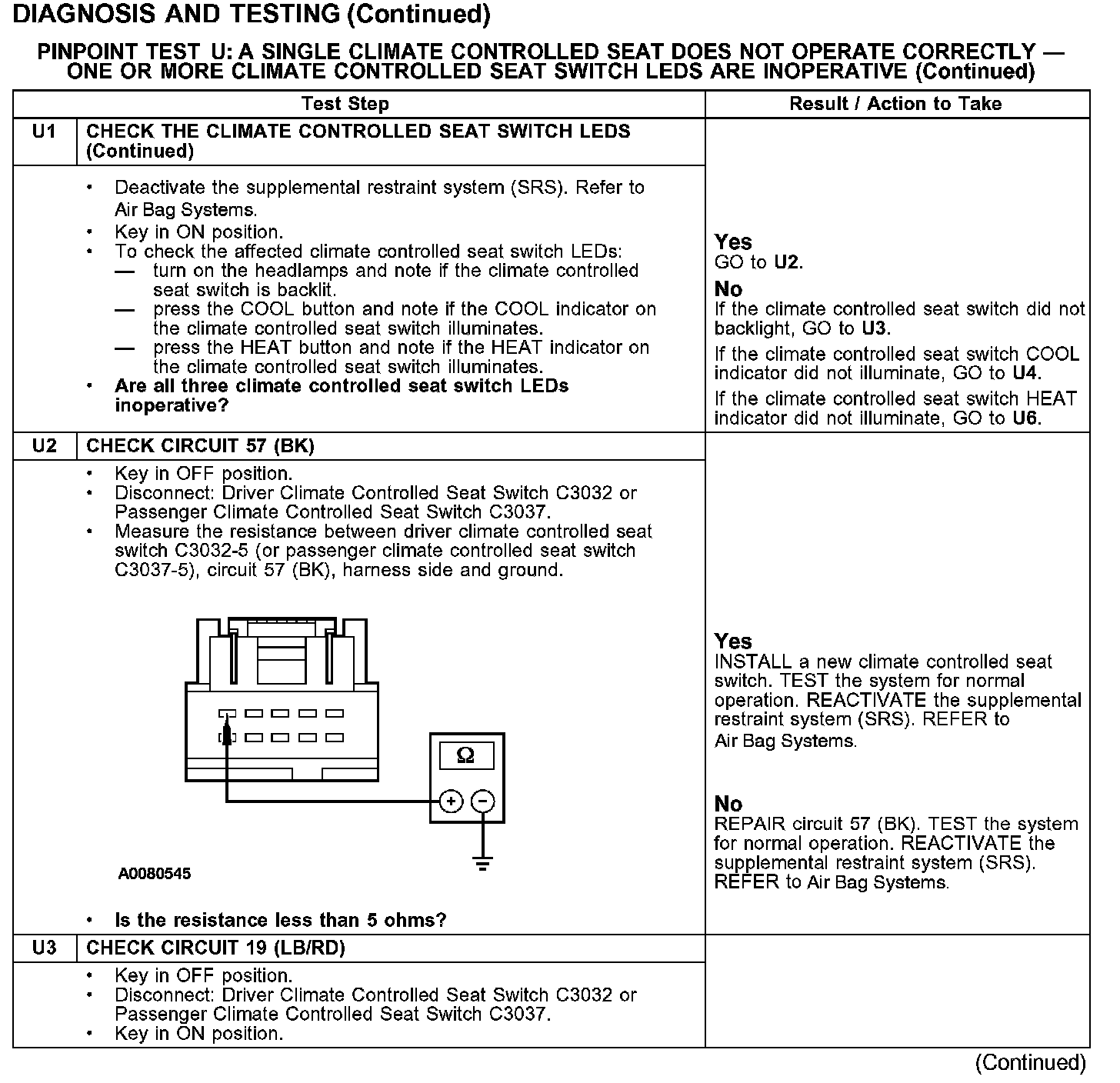

Test U1-U3:

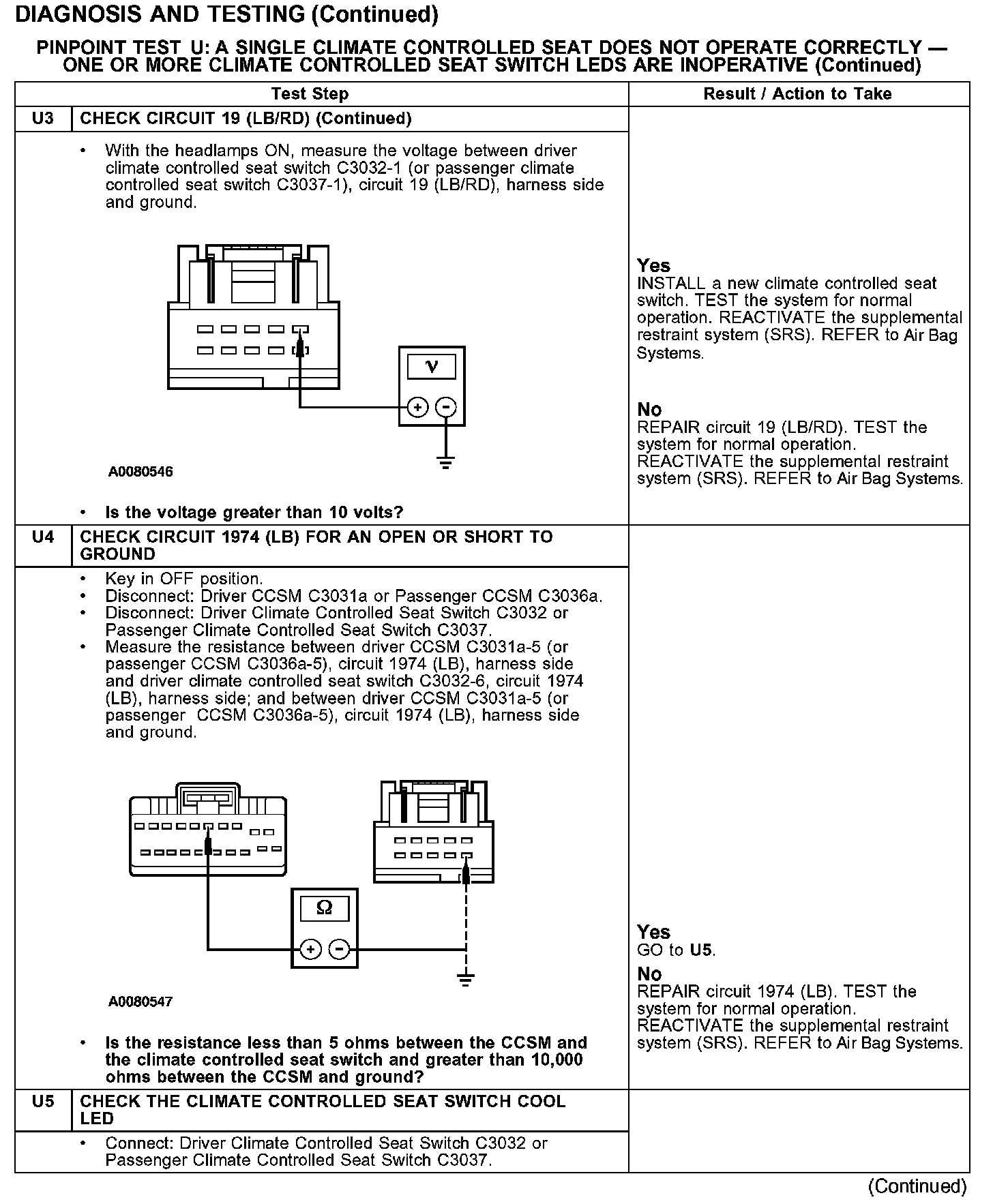

Test U3-U5:

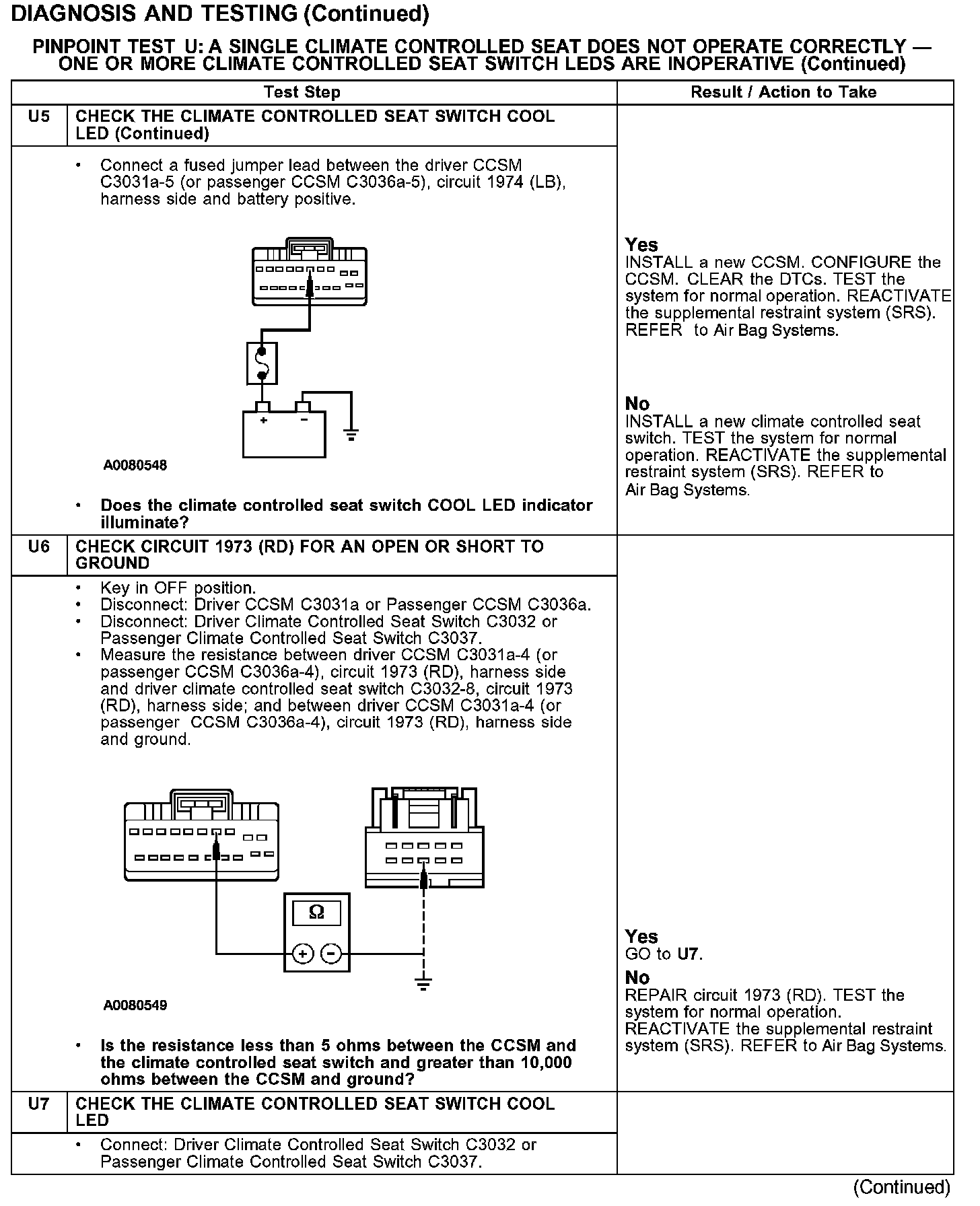

Test U5-U7:

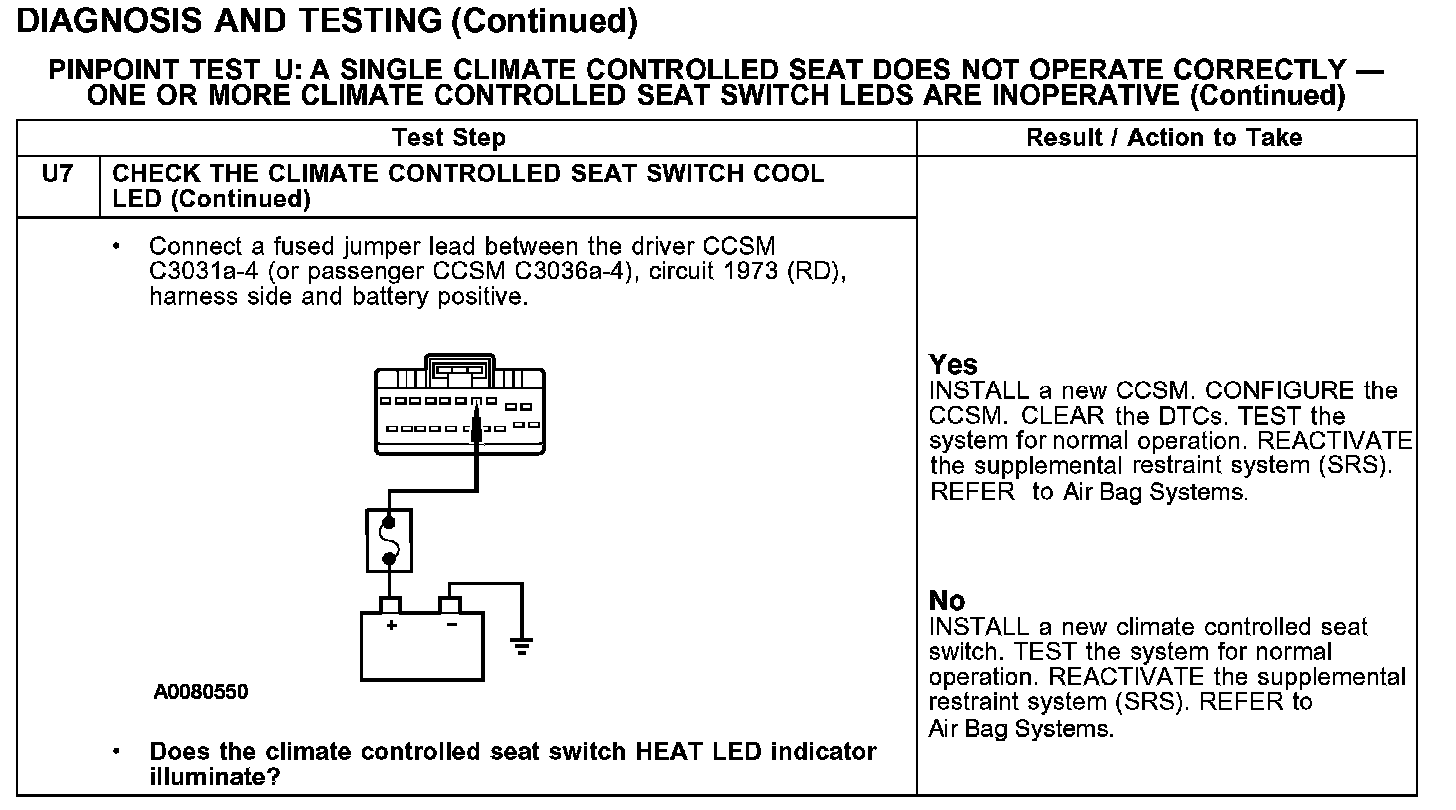

Test U7 Continued:
