SEAT TRACK - MANUAL

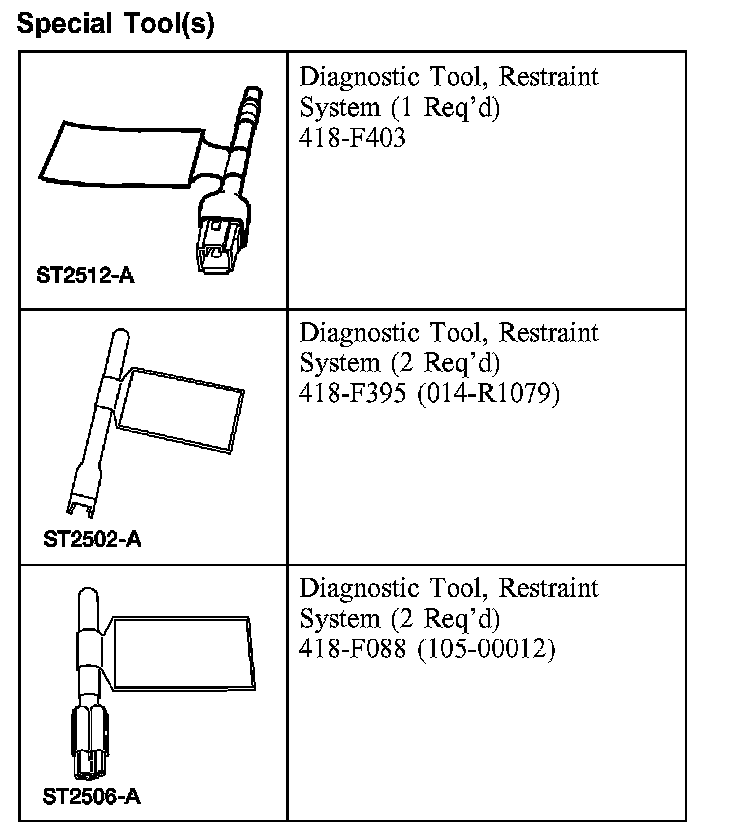

Special Tool(s):

SPECIAL TOOL(S)

REMOVAL

WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe pretensioner electrical connectors. Doing so could result in pretensioner or air bag deployment and could result in personal injury.

1. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

The front impact severity sensor is located at the bottom of the hood latch support bracket.

The first row side impact sensors (if equipped) are located in the first row doors, behind the door trim panel.

The second row side impact sensors (if equipped) are located at or near the base of the C-pillars.

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

NOTE: Before disconnecting the battery in vehicles with power seats, adjust the seat position to allow for access to the necessary components.

Disconnect the battery ground cable and wait at least one minute.

2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Deactivate the supplemental restraint system (SRS).

3. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the front seat removal and installation procedure.

NOTE: 60 percent seat shown, the 40 percent seat similar.

Remove the affected seat.

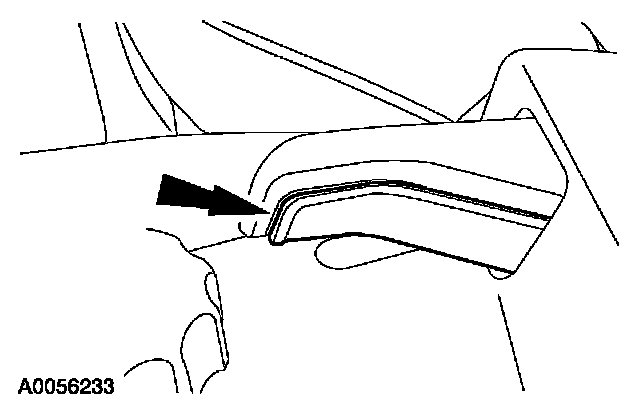

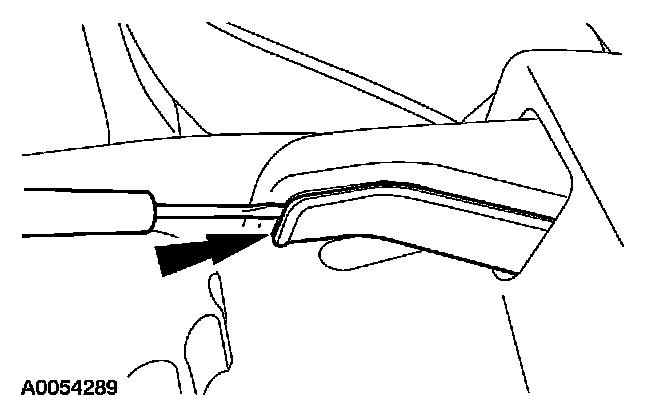

4. Remove recliner handle cover.

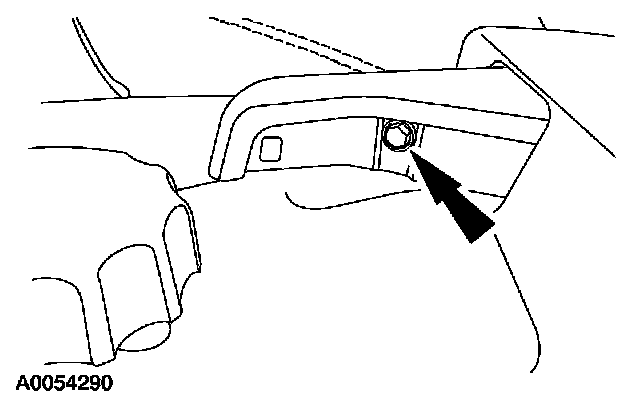

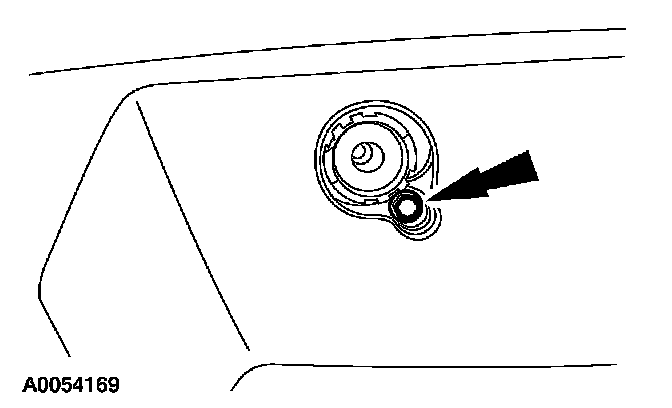

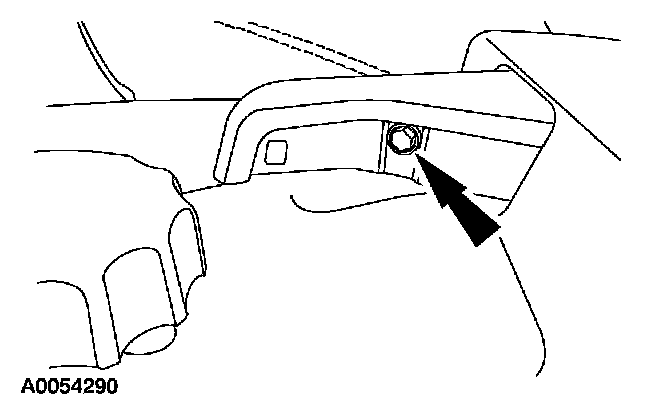

5. Remove the recliner handle screw and remove handle.

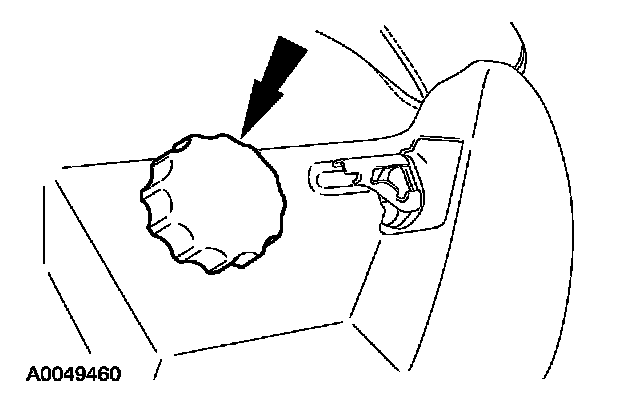

6. CAUTION: Use care when removing the lumbar knob. Using both hands, pull with even pressure on both sides of the knob to remove.

Remove the lumbar knob.

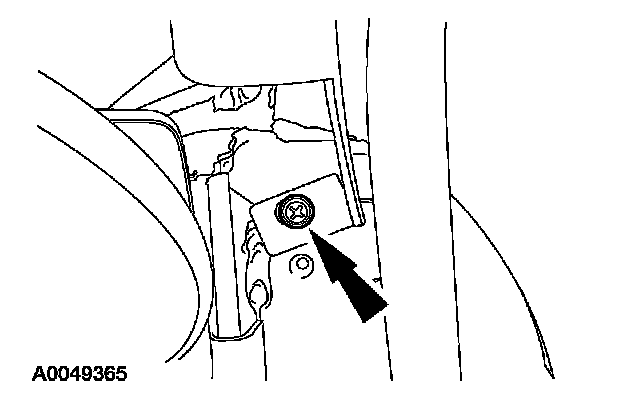

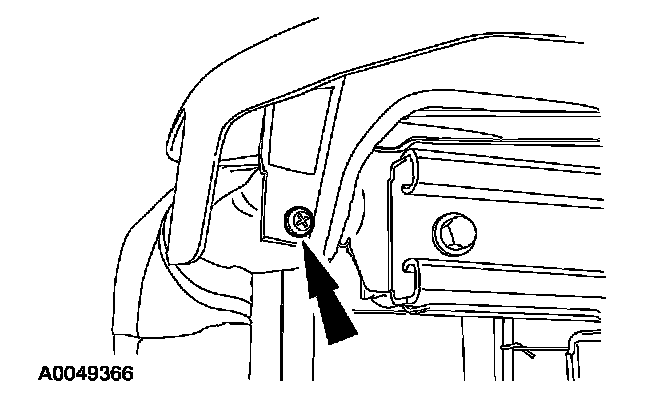

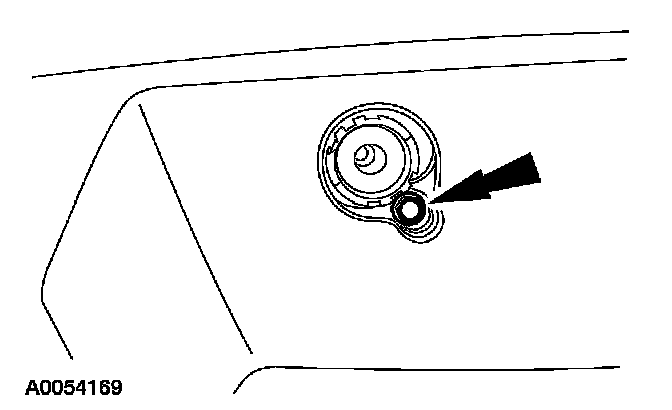

7. Remove the screw from the side shield under lumbar knob.

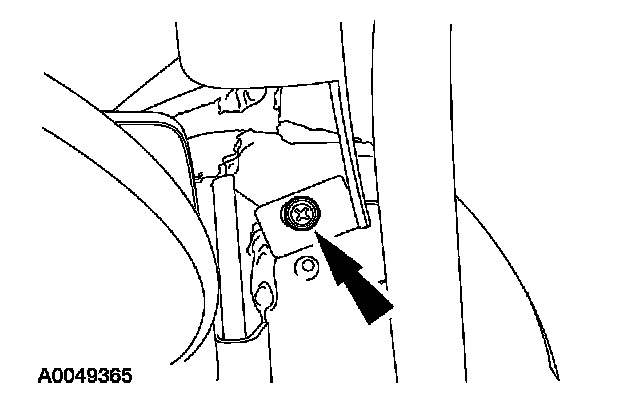

8. Remove the screw from the front of the side shield.







9. Remove the screw from the back of the side shield.

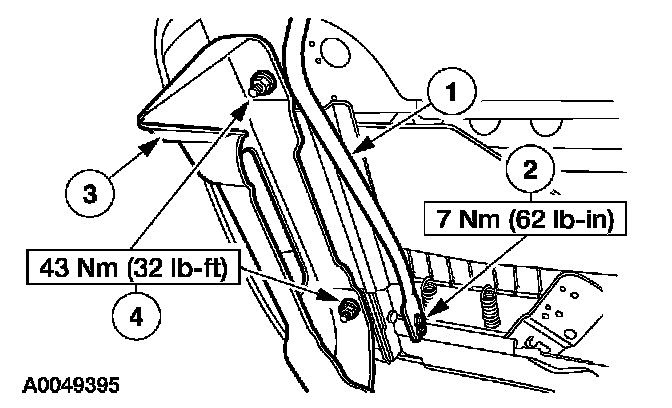

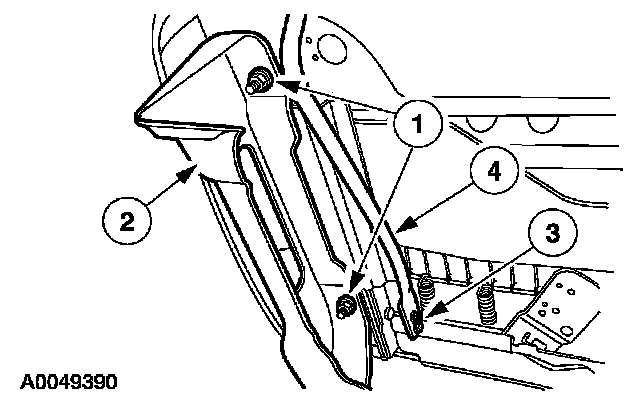

10. Remove the manual seat track riser and adjust handle.
1 Remove the four seat riser nuts (two shown).
2 Remove the seat riser.
3 Remove the four adjust handle bolts (two shown).
4 Remove the manual seat track handle.

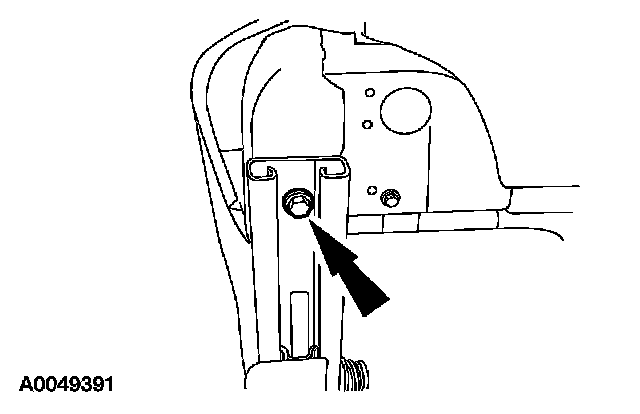

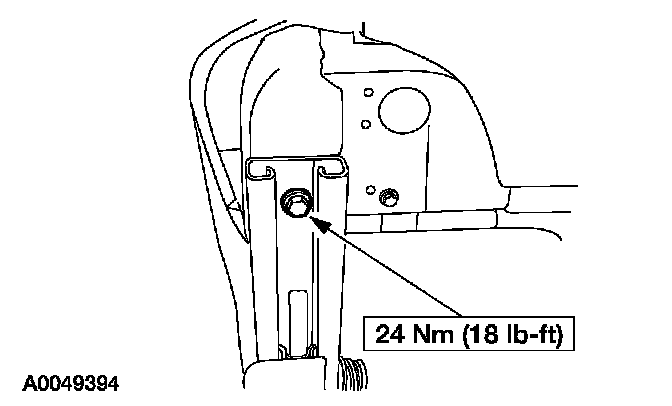

11. Remove the two front manual seat track-to-cushion frame bolts (one shown).

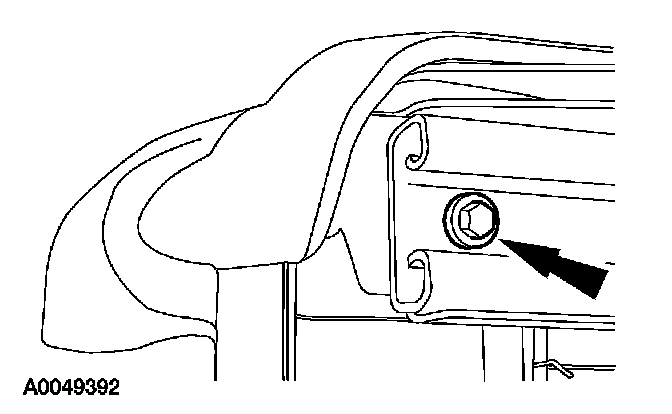

12. Remove the two rear manual seat track-to-cushion frame bolts (one shown).
13. Remove the manual seat track.

INSTALLATION

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.

1. Install the manual seat track.

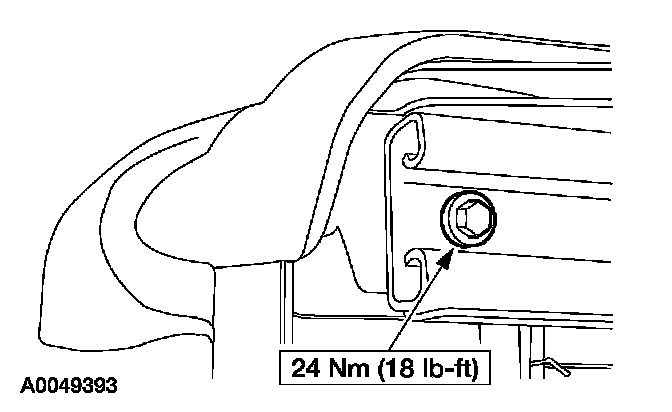

2. Install the two rear manual seat track-to-cushion frame bolts (one shown).







3. Install the two front manual seat track-to-cushion frame bolts (one shown).







4. Install the seat track riser and adjust handle.
1 Install the manual seat track adjust handle.
2 Install the four seat track adjust handle bolts (two shown).
3 Install the manual seat track risers.
4 Install the four seat riser to seat track nuts (two shown).







5. Install the screws on the back of the side shield.







6. Install the screw on the front of side shield.

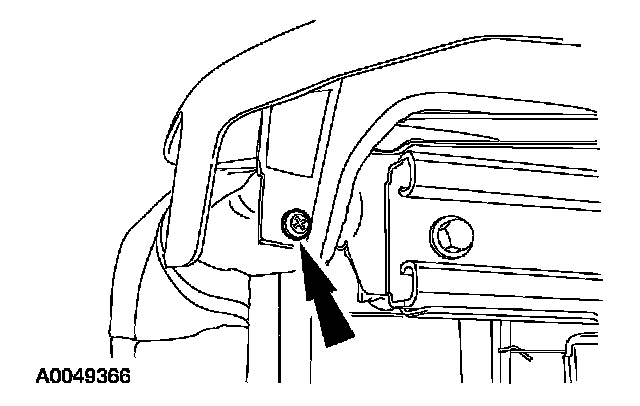

7. Install the screw on side shield.

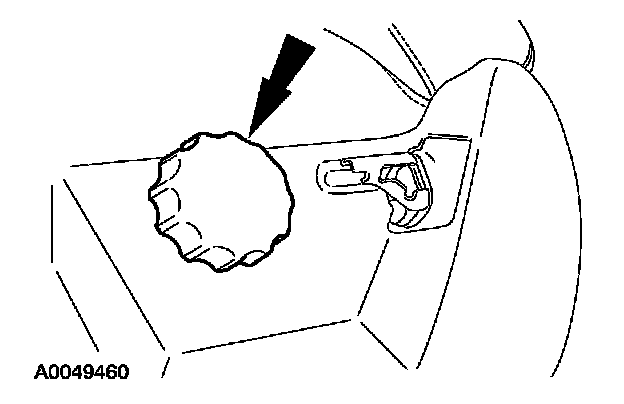

8. Align and install the lumbar knob.







9. Install recliner handle and install the screw.







10. Install the recliner handle cover.

11. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the front seat removal and installation procedure.

Install the affected seat.

12. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Reactivate the supplemental restraint system (SRS).

13. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.

With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
