Front Seat Track Motor

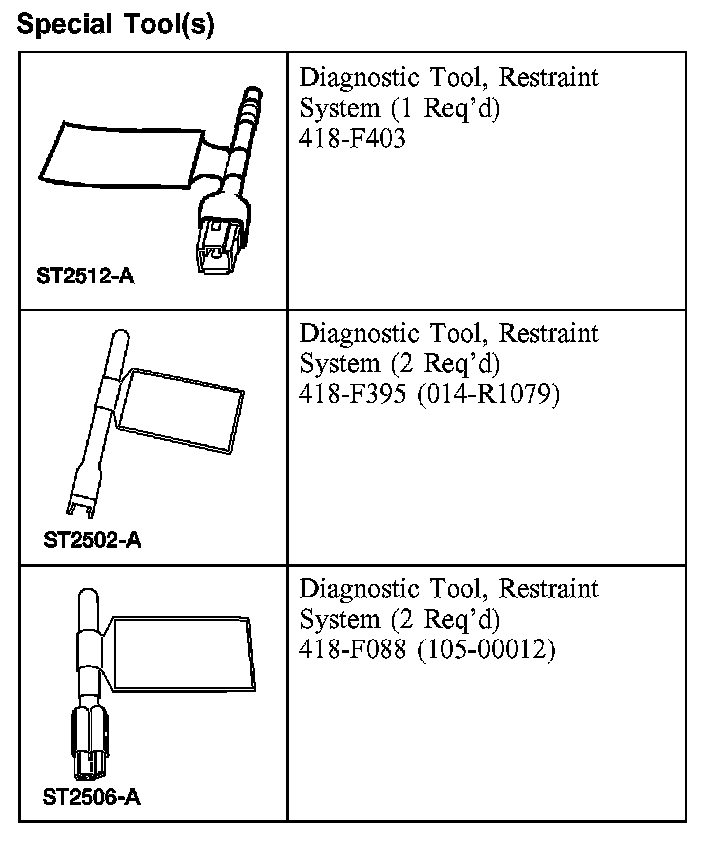

FRONT SEAT TRACK MOTORSpecial Tool(s):
SPECIAL TOOL(S)
REMOVAL
WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe pretensioner electrical connectors. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
All motors
1. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The front impact severity sensor is located at the bottom of the hood latch support bracket.
The first row side impact sensors (if equipped) are located in the first row doors, behind the door trim panel.
The second row side impact sensors (if equipped) are located at or near the base of the C-pillars.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Disconnect the battery ground cable and wait at least one minute.
2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
Deactivate the supplemental restraint system (SRS).
3. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the front seat removal and installation procedure.
Remove the 40 percent seat.
Forward/Reverse motor
4. NOTE: If equipped with memory seat, disconnect the memory seat motor sensor electrical connector and remove sensor from the motor.

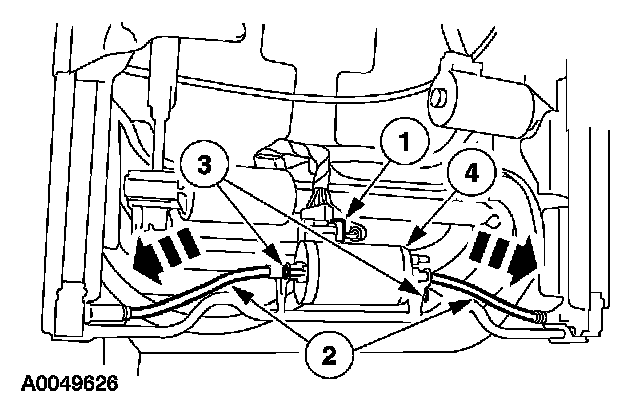

Remove the forward/reverse motor.
1 Disconnect the electrical connector.
2 Pull to release the power seat drive cables from the motor.
3 Remove the four screws (two shown).
4 Remove the power seat motor.
Rear height motor
5. NOTE: If equipped with memory seat, disconnect the memory seat motor sensor electrical connector and remove sensor from the motor.

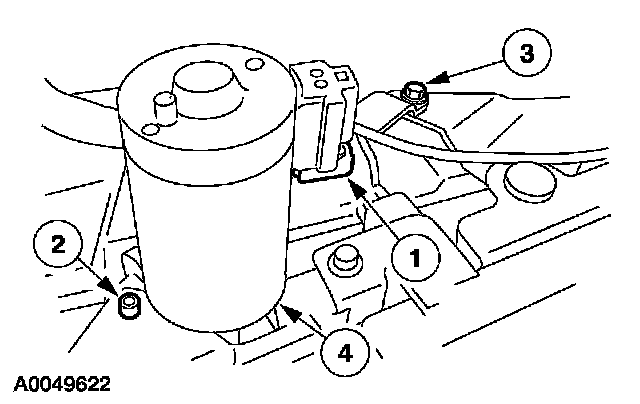

Remove the rear height motor.
1 Disconnect the rear height motor electrical connector.
2 Remove the roll pin.
3 Remove the bolt and nut.
4 Remove the rear height power seat motor.
Front height motor
6. If equipped, remove the temperature controlled seat fan motor.
7. NOTE: If equipped with memory seat, disconnect the memory seat motor sensor electrical connector and remove sensor from the motor.

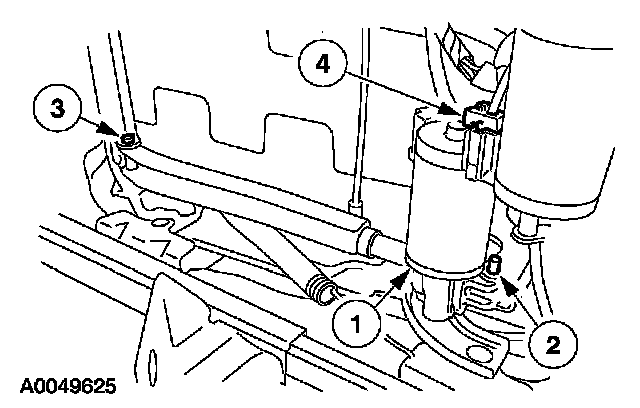

Remove the front height motor.
1 Disconnect the front height motor electrical connector.
2 Remove the roll pin.
3 Remove the roll pin
4 Remove the front height power seat motor.
INSTALLATION
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.
Front height motor
1. NOTE: If equipped with memory seat, install the sensor to the motor and connect the memory seat motor sensor electrical connector.
Install the front height motor.
1 Install the front height motor.
2 Install the roll pin.
3 Install the roll pin.
4 Connect the front height motor electrical connector.
2. If equipped, install the temperature controlled seat fan motor.
Rear height motor
3. NOTE: If equipped with memory seat, install sensor to the motor and connect the memory seat motor sensor electrical connector.

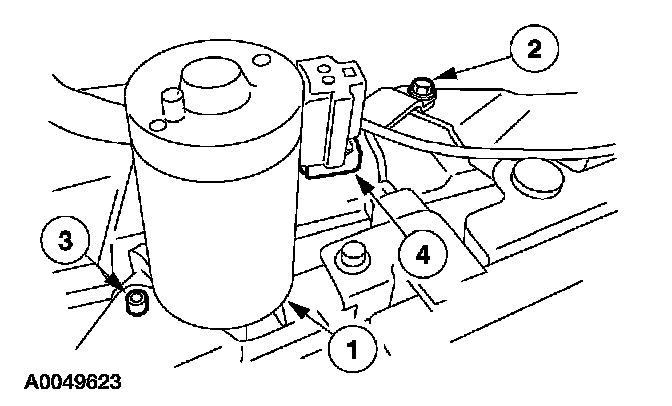

Install the rear height motor.
1 Install the rear power seat motor.
2 Install the bolt and nut.
3 Install the roll pin.
4 Connect the rear height motor electrical connector.
Forward/Reverse motor
4. NOTE: If equipped with memory seat, install sensor to the motor and connect the memory seat motor sensor electrical connector.

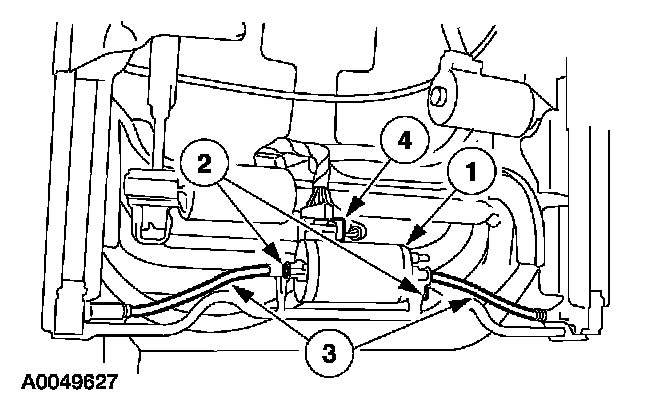

Install the forward/reverse motor.
1 Install the forward/reverse power seat motor.
2 Install the four screws (two shown).
3 Install the power seat motor cables.
4 Connect the forward/reverse motor electrical connector.
All motors
5. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the front seat removal and installation procedure.
Install the 40 percent seat.
6. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
Reactivate the supplemental restraint system (SRS).
7. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
