Seat Temperature Switch: Service and Repair

CLIMATE CONTROLLED SEAT SWITCH

REMOVAL

Navigator







1. Open the center console lid.







2. Remove the temperature controlled seat switch housing.

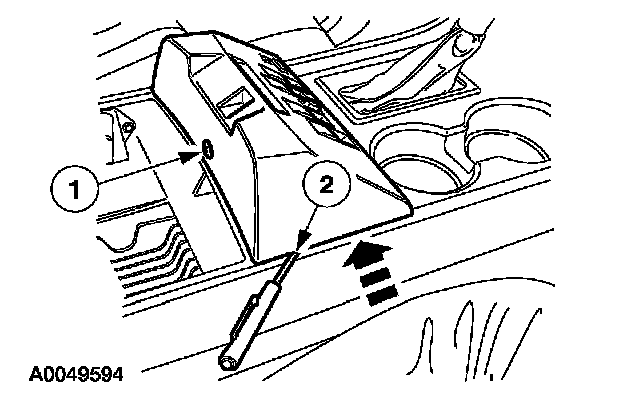

1 Remove the scrivet.

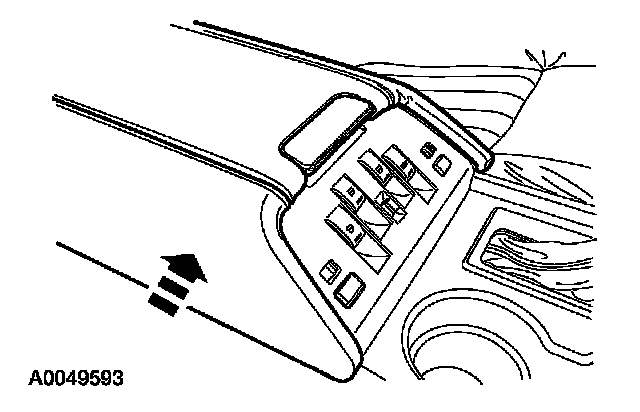

2 Pry the switch housing up from the retaining clips.

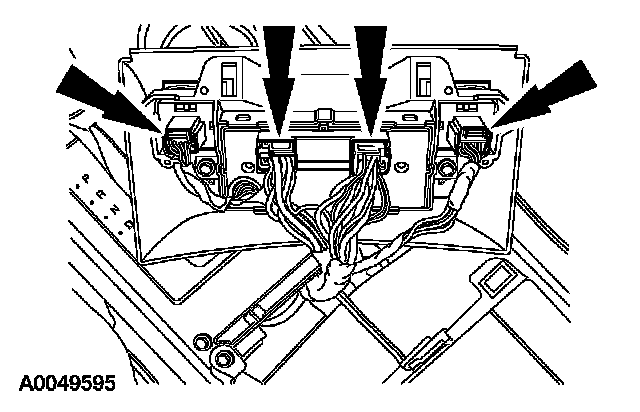

3. Disconnect the electrical connectors.







4. Remove the screws and remove the switches from the switch housing.

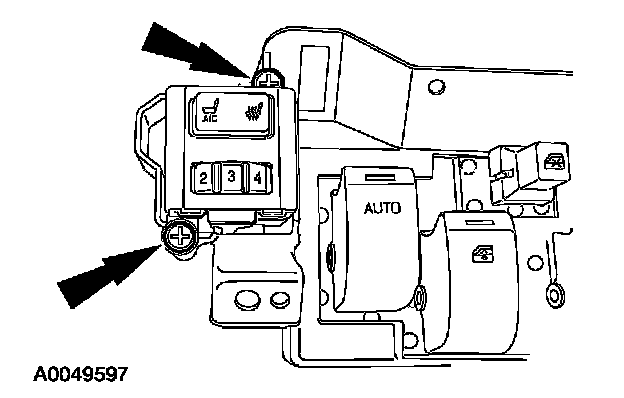

5. Remove the screws and remove the temperature controlled switch (passenger side shown).

Expedition
6. Open the center console lid.







7. Remove the temperature controlled switch housing.

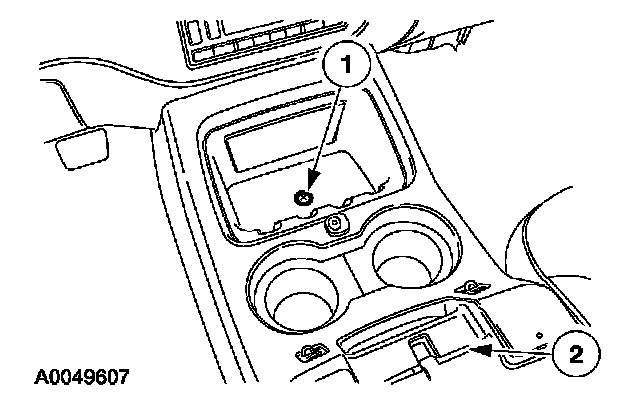

1 Remove the screw.
2 Pry up on the back of the switch housing and release the retaining clips.

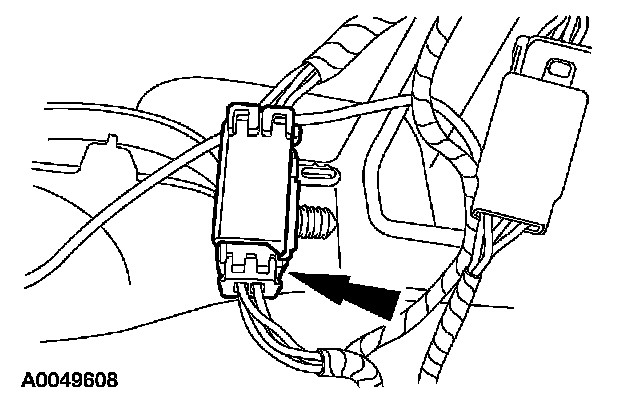

8. Detach and disconnect the electrical connector.

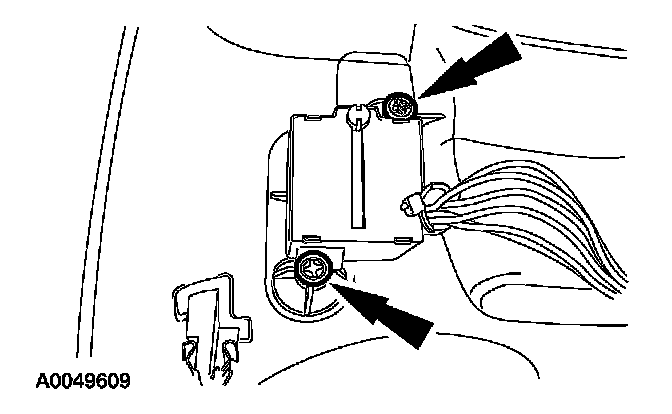

9. Remove the screws and remove the temperature controlled switch.

INSTALLATION

All vehicles
1. To install, reverse the removal procedure.
