Seat Control Switch, Third Row

SEAT CONTROL SWITCH - THIRD ROW

REMOVAL
1. Partially remove the RH quarter trim panel for access to the third row power seat switch(es).
2. Remove the retainer nuts on the back side of the power seat switch housing.

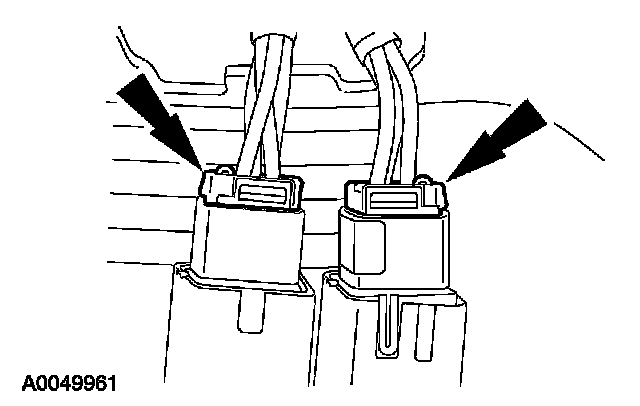

3. Disconnect the power seat switch electrical connectors.

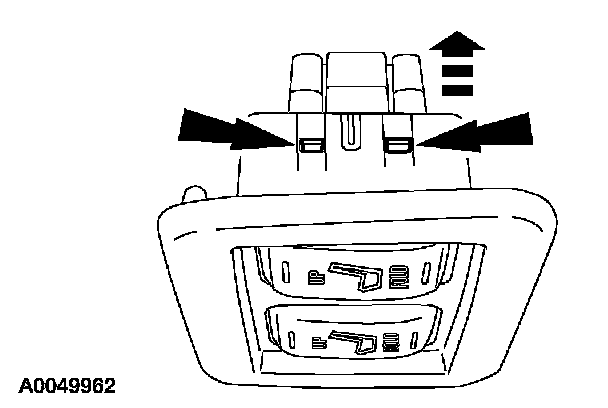

4. Release the four locking tabs (two shown) on the affected switch, and remove the switch.

INSTALLATION
1. To install, reverse the removal procedure.
