Seat Control Switch, 6-Way

SEAT CONTROL SWITCH - 6-WAY

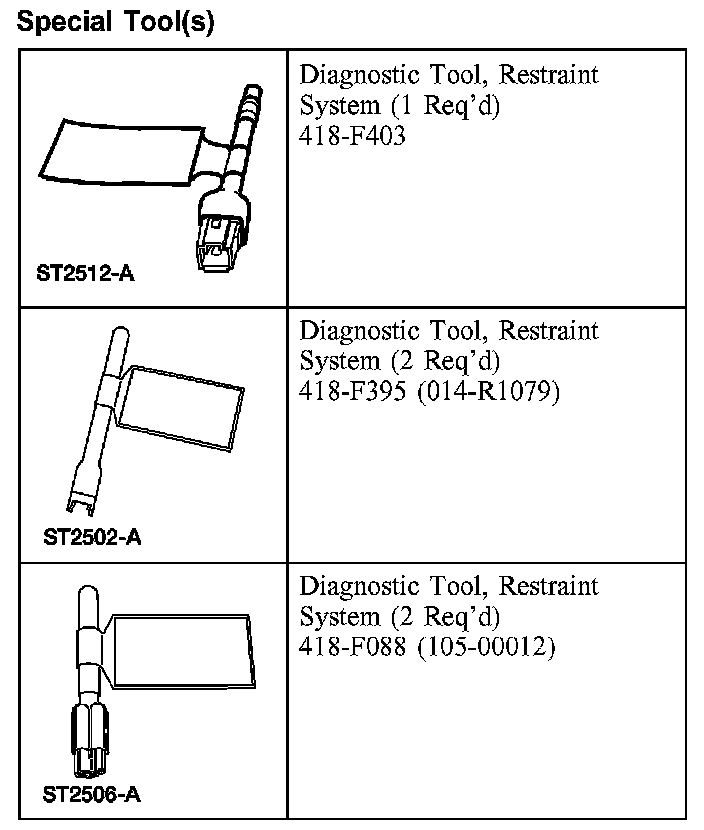

Special Tool(s):

SPECIAL TOOL(S)

REMOVAL

WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe pretensioner electrical connectors. Doing so could result in pretensioner or air bag deployment and could result in personal injury.

NOTE: Driver seat is shown, passenger is similar.

1. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

The front impact severity sensor is located at the bottom of the hood latch support bracket.

The first row side impact sensors (if equipped) are located in the first row doors, behind the door trim panel.

The second row side impact sensors (if equipped) are located at or near the base of the C-pillars.

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

Disconnect the battery ground cable and wait at least one minute.

2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Deactivate the supplemental restraint system (SRS).

3. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.

Remove the affected seat.

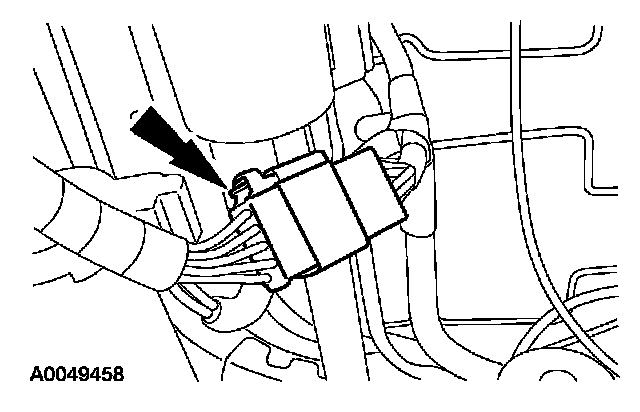

4. Disconnect the 6-way power seat switch electrical connector.

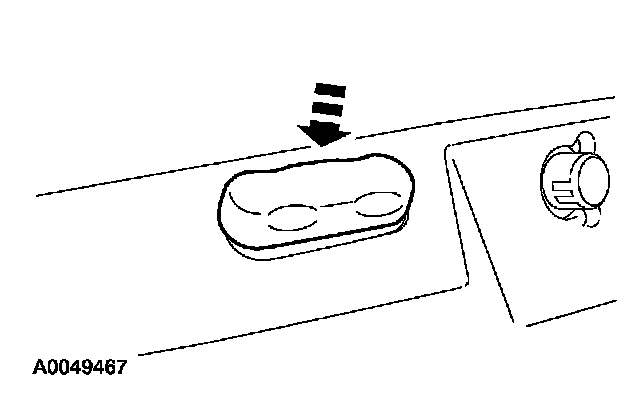

5. Remove the recliner handle screw cover.







6. Remove the recliner handle screw and the recliner handle.

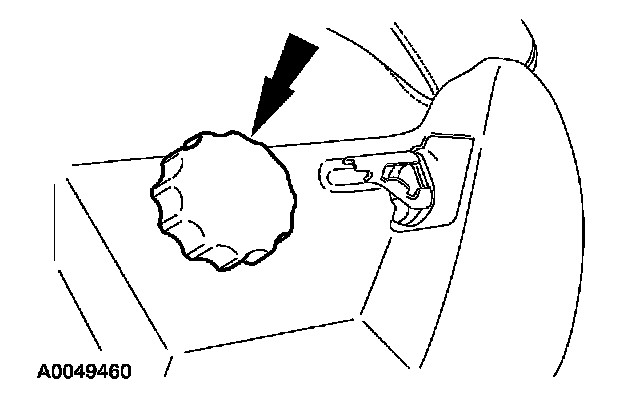

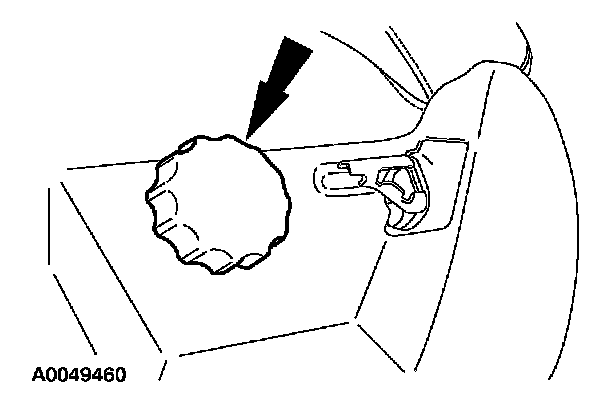

7. CAUTION: Use care when removing the lumbar knob. Using both hands, pull with even pressure on both sides of the knob to remove.

Pull out to remove the lumbar knob.

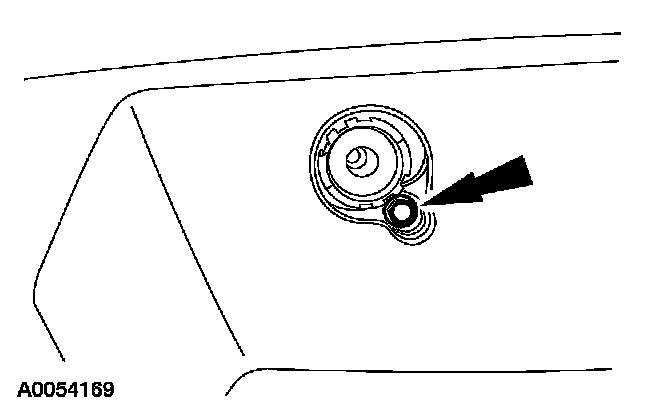

8. Remove the screw from the side shield under the lumbar knob.

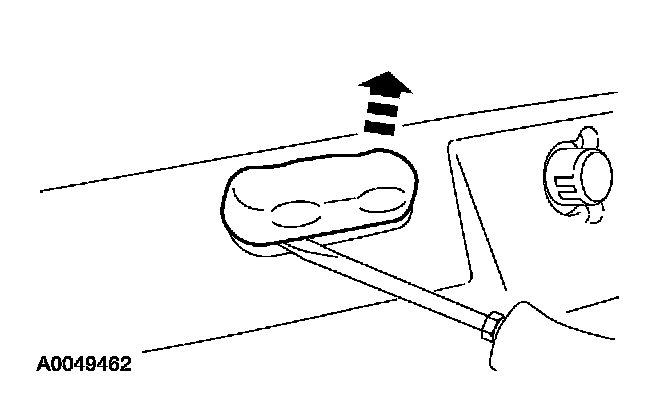

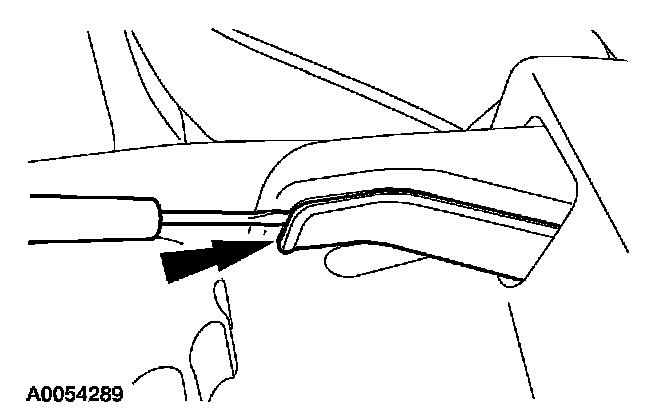

9. CAUTION: Use care not to scratch the side shield when removing the power seat knob.

Pry the power seat knob off.

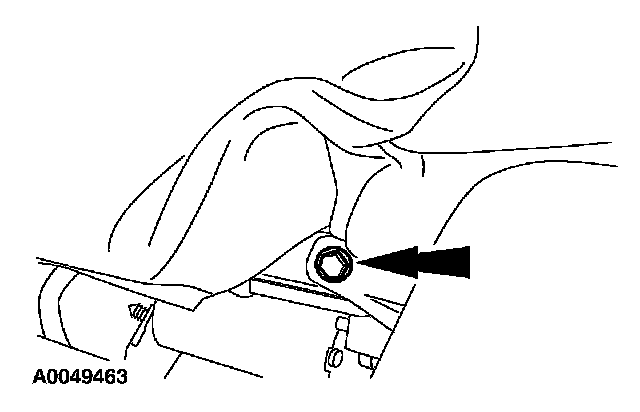

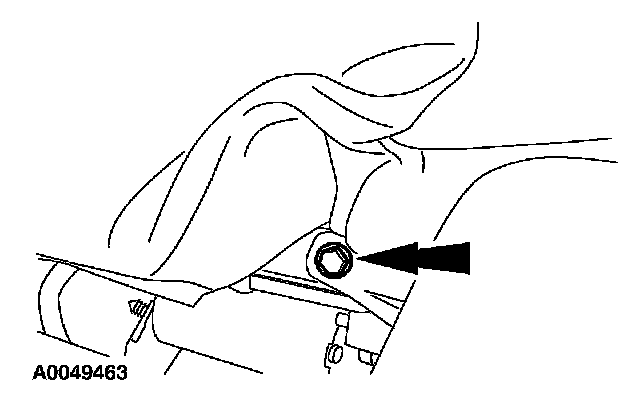

10. Access and remove the front side shield screw.

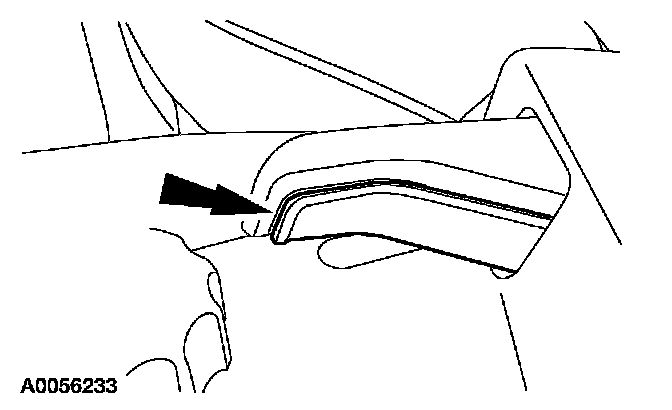

11. Pull to release the center retainer on side shield.

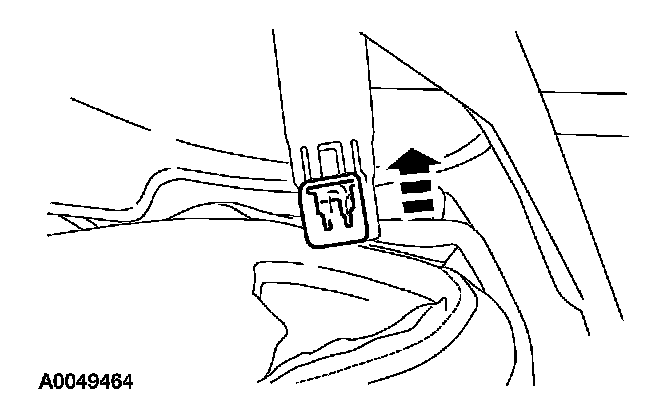

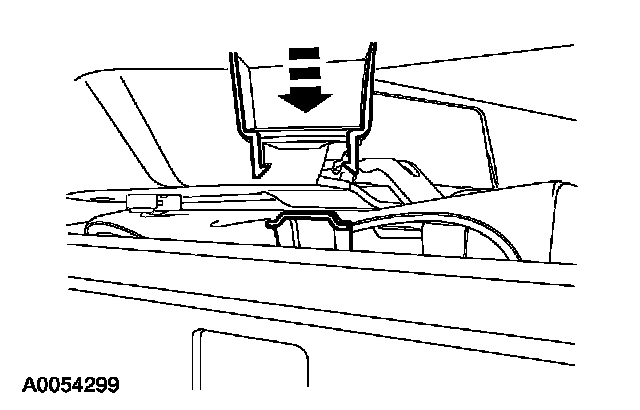

12. Pull to release the retainer clip on the rear of side shield.
13. Remove the side shield from the seat.

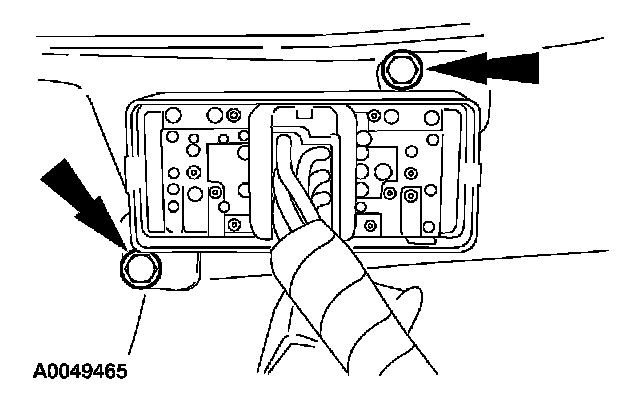

14. Remove the two screws and remove the 6-way power seat switch from the side shield.

INSTALLATION

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.







1. Install the 6-way power seat switch on the side shield and install the two screws.







2. Push to install the rear side shield retainer on seat frame.







3. Push to install the middle side shield retainer on the seat.







4. Access and install the front side shield screw.







5. Install the 6-way power seat knob.

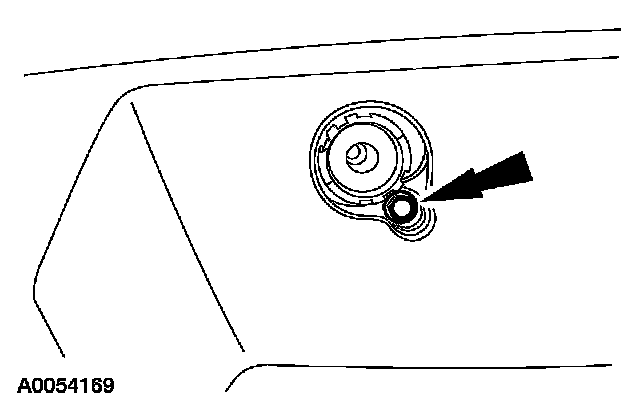

6. Install the screw on the side shield under the lumbar knob.







7. Align and install the lumbar knob.







8. Install the recliner handle and install the screw.







9. Install the recliner handle cover.

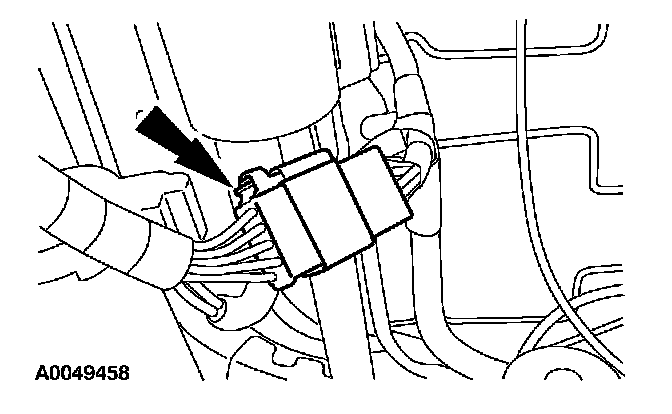

10. Connect the 6-way power seat switch electrical connector.

11. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.

Install the affected seat.

12. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Reactivate the supplemental restraint system (SRS).

13. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.

With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
