Power Mirror Switch: Service and Repair

EXTERIOR MIRROR CONTROL SWITCH

REMOVAL

All vehicles
1. Remove the driver front door trim panel.

Navigator

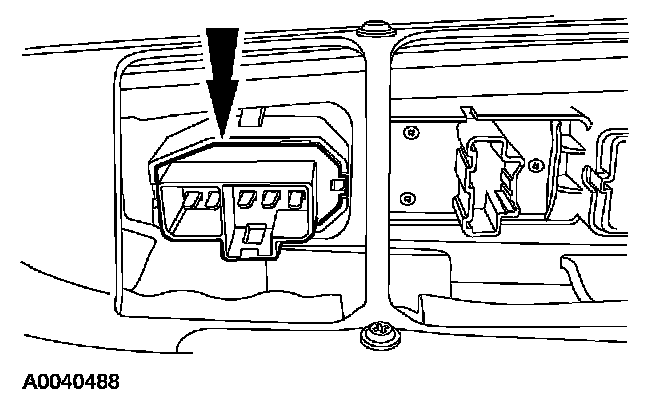

2. Depress the locking tabs and remove the exterior mirror control switch.

Expedition







3. Remove the exterior mirror control switch.

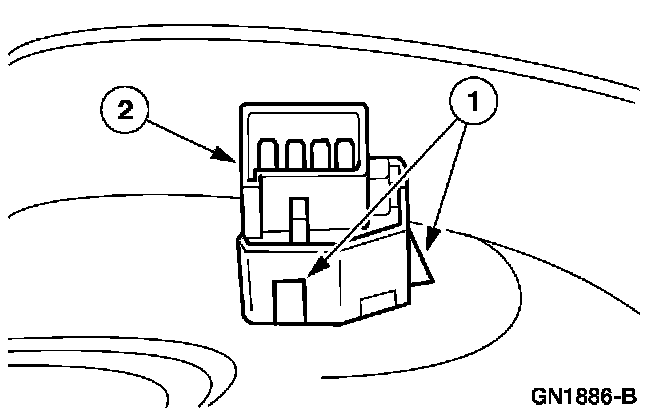

1 Depress the locking tabs.
2 Remove the exterior mirror control switch.

INSTALLATION

All vehicles
1. To install, reverse the removal procedure.
