Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

REMOVAL







1. WARNING: Place a shop towel between the exterior mirror glass and the hand to avoid personal injury in the instance of glass breakage.

Position the exterior mirror glass to obtain a gap at the top edge of the mirror and carefully pull the top edge of the glass away from the exterior mirror housing.

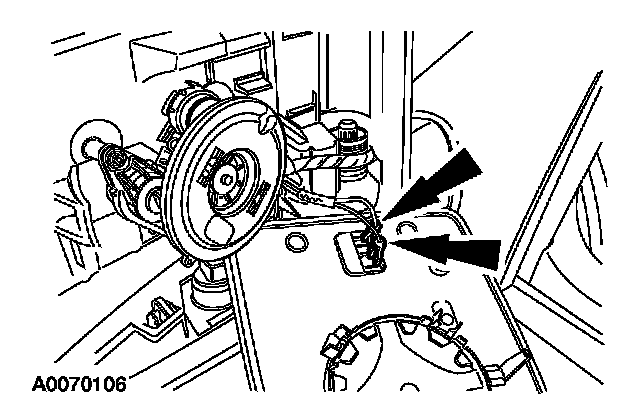

2. If equipped, disconnect the heated mirror electrical connectors.

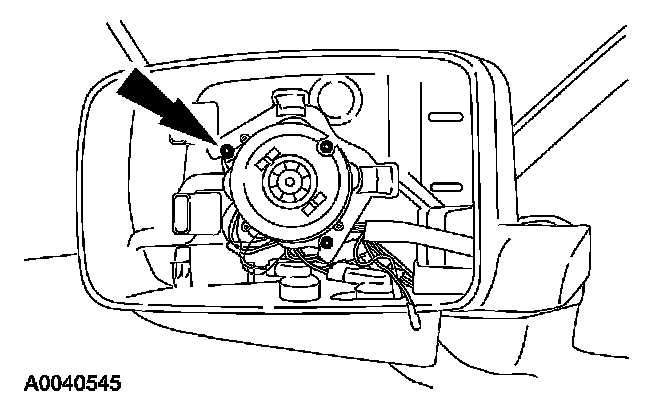

3. Remove the exterior mirror motor screws and exterior mirror motor.
- Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
