Test G

PINPOINT TEST G: THE KEYLESS ENTRY KEYPAD ILLUMINATION IS INOPERATIVE


Test G1:

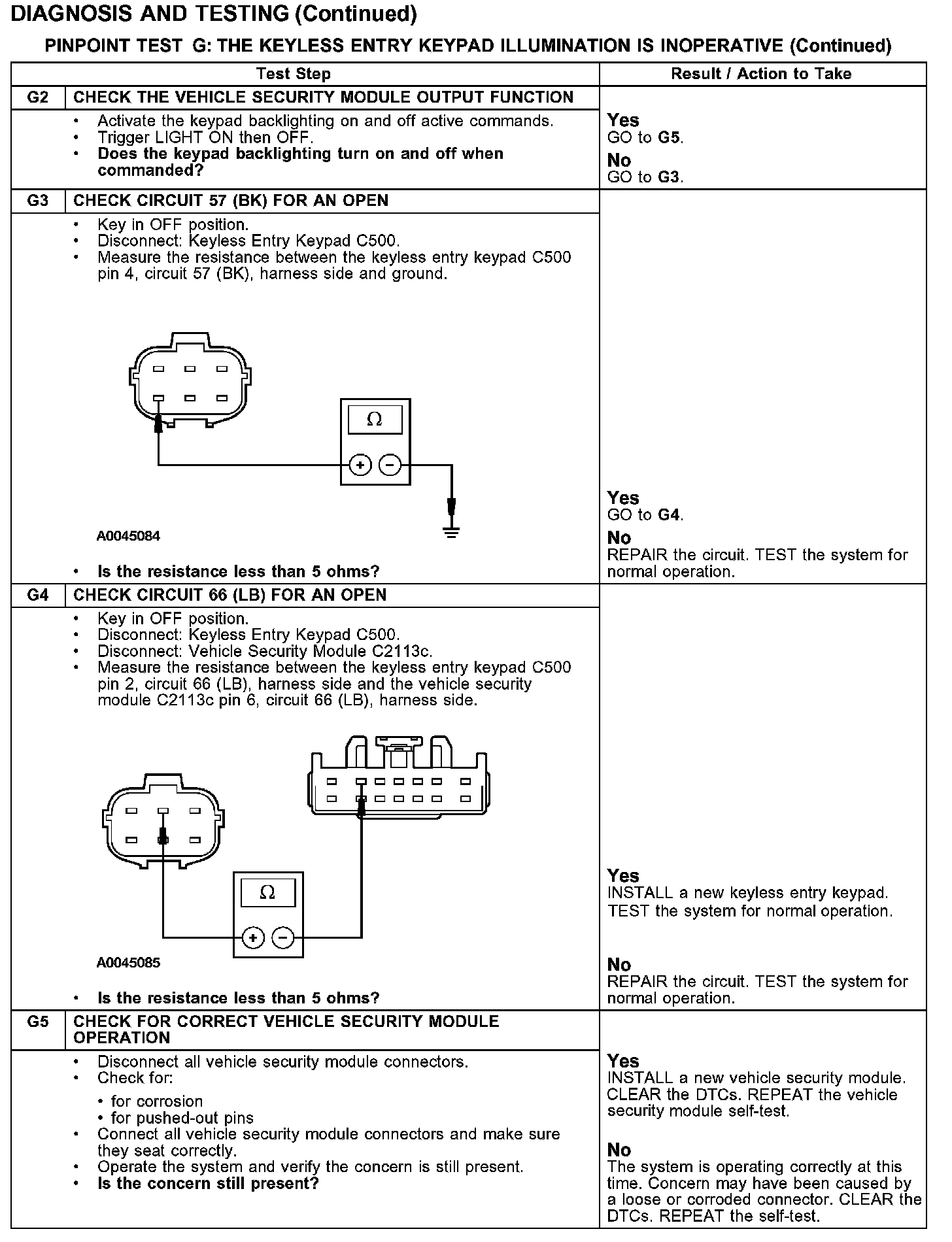

Test G2-G5:
