Liftgate Trim Panel

LIFTGATE TRIM PANEL

REMOVAL

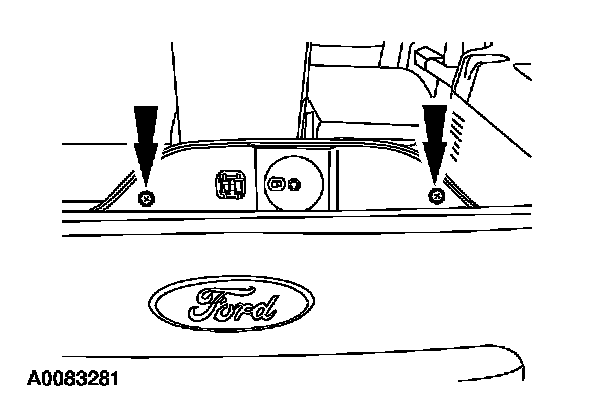

1. Open the liftgate glass and remove the scrivets.

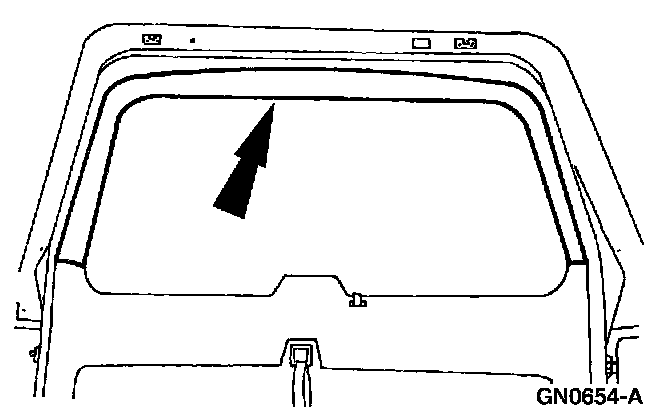

2. Open the liftgate and remove the upper liftgate trim panel.
- Pull lower corners toward the center on both sides and pull down along the top.

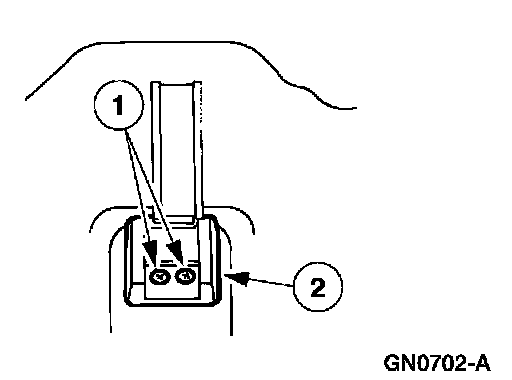

3. Remove the assist handle.
1 Remove the screws.
2 Remove the assist handle.

4. Open the tailgate glass.

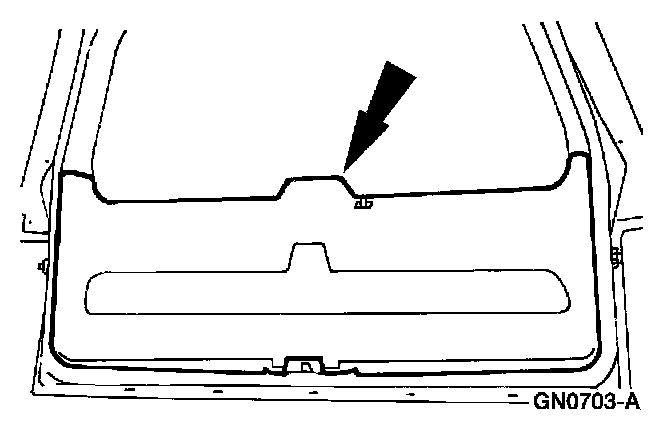

5. Remove the lower liftgate trim panel.
- Release the panel from all clips before sliding the panel forward and down to remove.

INSTALLATION
1. To install, reverse the removal procedure.
