Headliner: Service and Repair

HEADLINER

REMOVAL

All vehicles
1. Disconnect the battery ground cable and wait at least one minute.

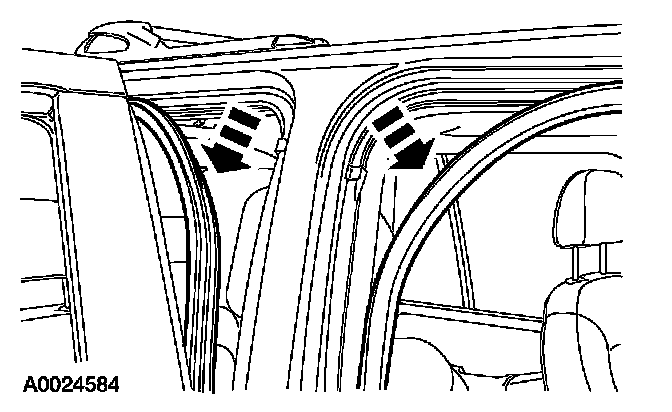

2. Position aside the front and rear door seals.

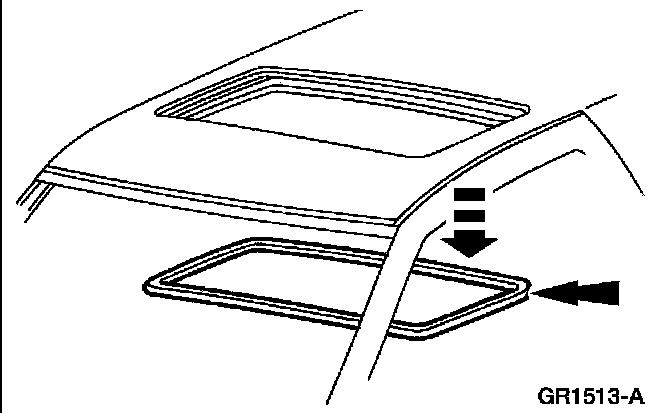

3. If equipped, remove the roof opening panel trim.

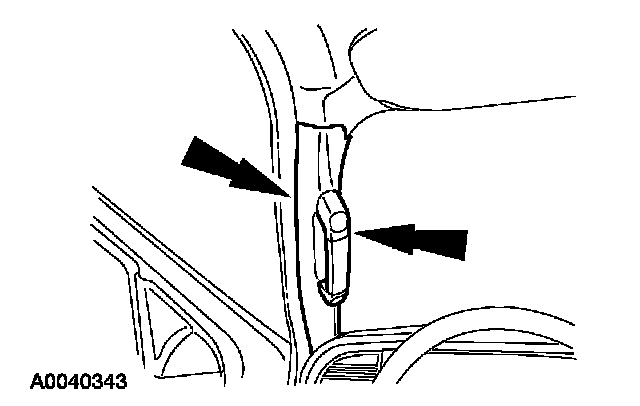

4. Remove the A-pillar trim panels.
- Remove the bolt covers and bolts.

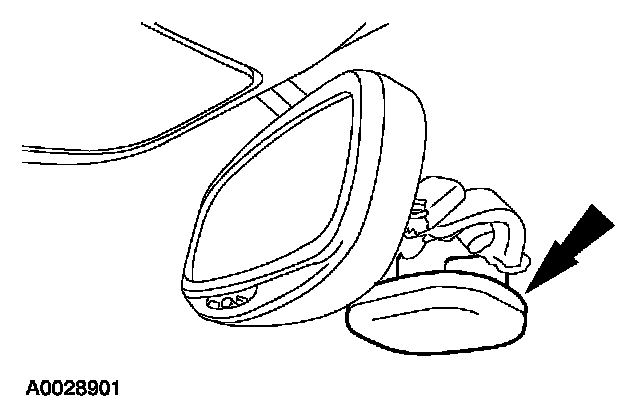

5. If equipped, remove the electronic compass sensor.







6. If equipped, disconnect the auto dimming mirror electrical connector.

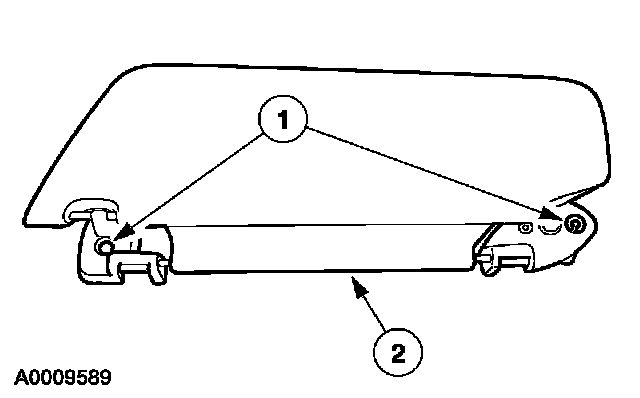

7. Remove the two sun visors and visor clips.
1 Remove the eight screws.
2 Remove the two sun visors and visor clips.
- If equipped, disconnect the electrical connectors.

8. If equipped, remove the overhead console.
9. If equipped, remove the DVD player.
10. Remove the upper B-pillar trim panel.
11. Remove the C-pillar trim panel.
12. Remove the D-pillar trim panel.

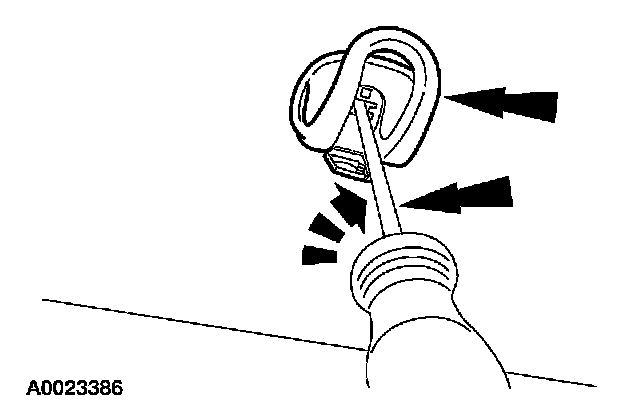

13. CAUTION: To prevent damage to the coat hanger retainer, use a 3/16-inch flat-blade screwdriver for this step.

Remove the four coat hooks.
- Open the access cover.
- Insert a screwdriver into the slot and rotate.

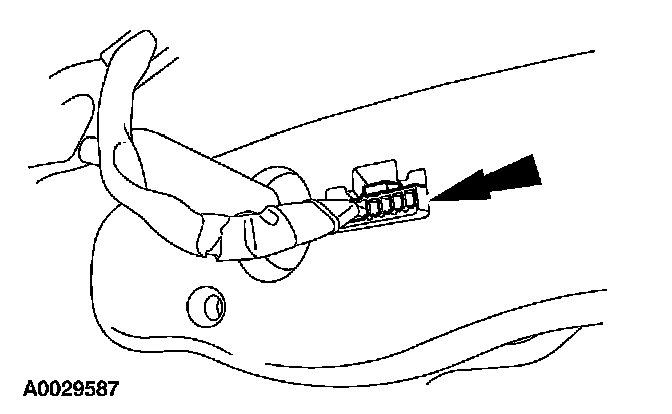

14. Disconnect the two electrical connectors at the right side C-pillar and one electrical connector at the left side C-pillar.

Vehicles equipped with rear climate control

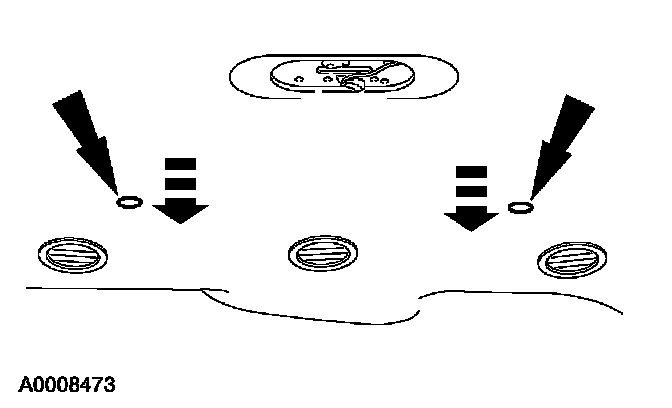

15. Remove the center pin-type retainers.

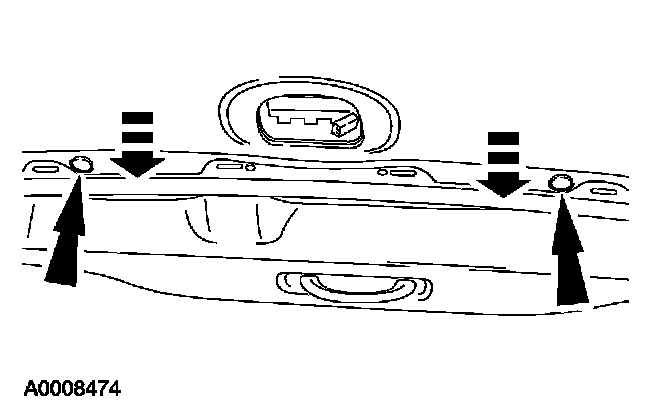

16. Remove the rear pin-type retainers.

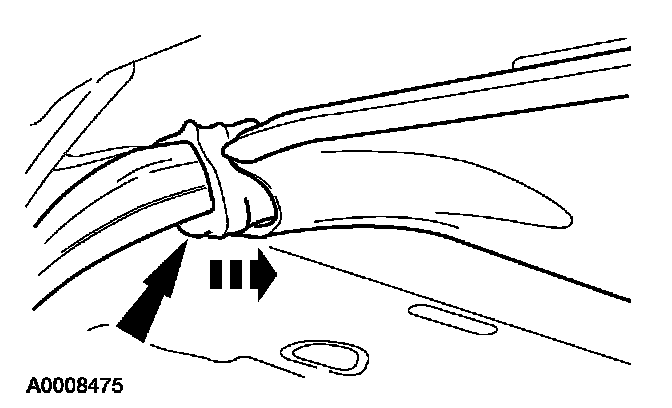

17. Tilt the headliner to release the vent duct.

All vehicles
18. Remove the headliner.

INSTALLATION
1. To install, reverse the removal procedure.
- Transfer parts as necessary.
