Test A

PINPOINT TEST A: THE RETRACTABLE RUNNING BOARD DOES NOT OPERATE CORRECTLY - BOTH RUNNING BOARDS

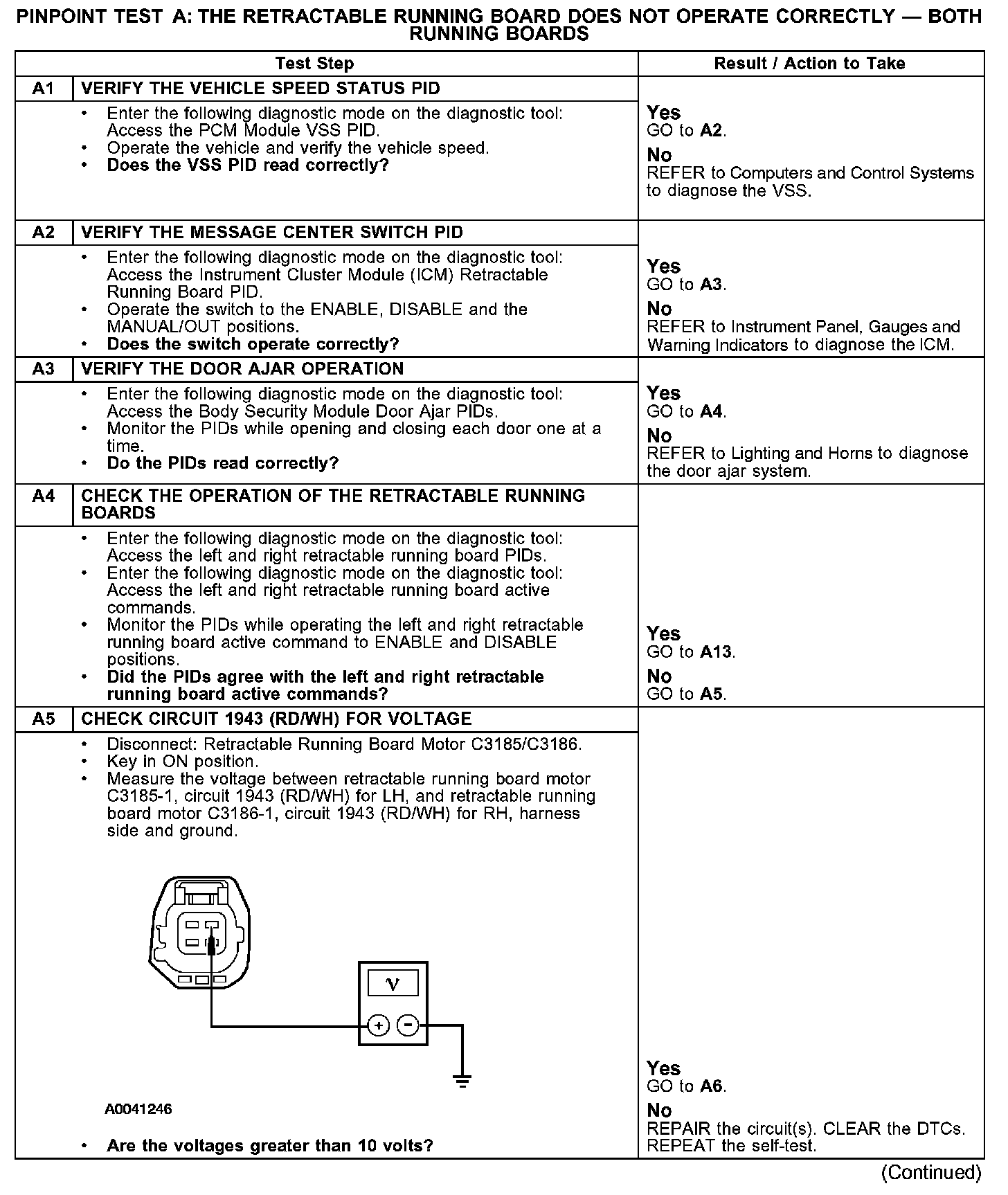

Test A1-A5:






Test A6-A8:

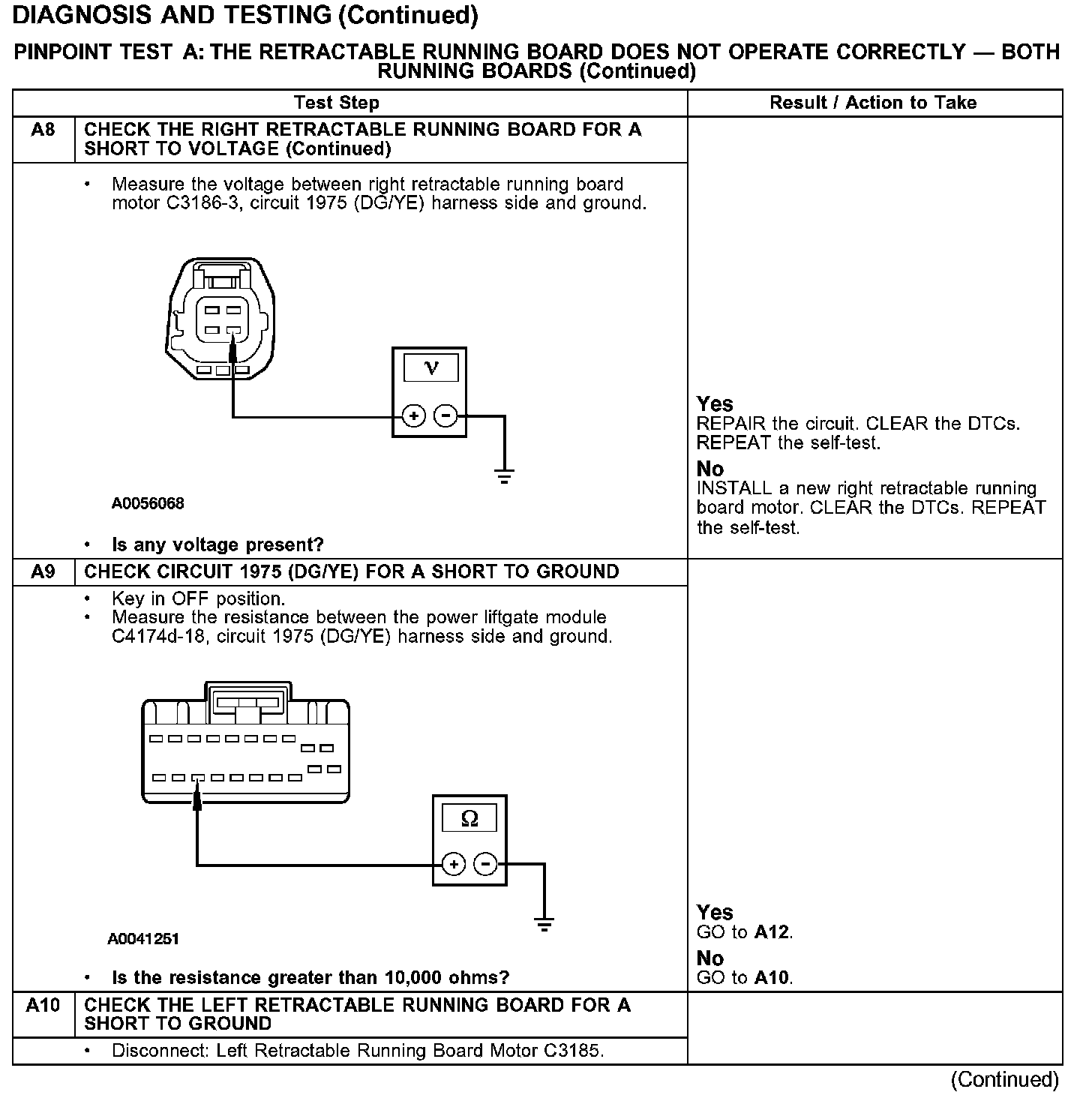

Test A8-A10:

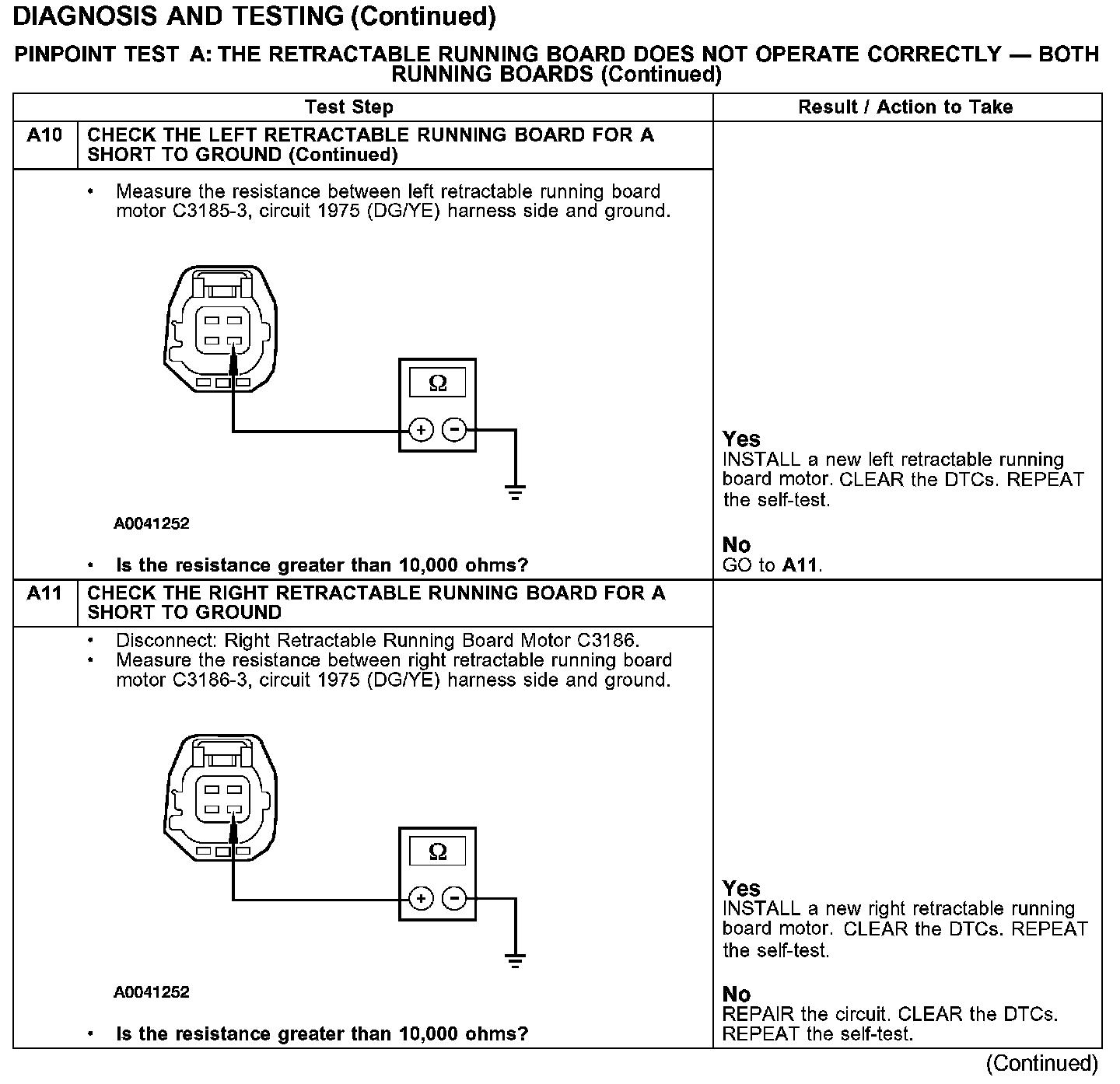

Test A10-A11:

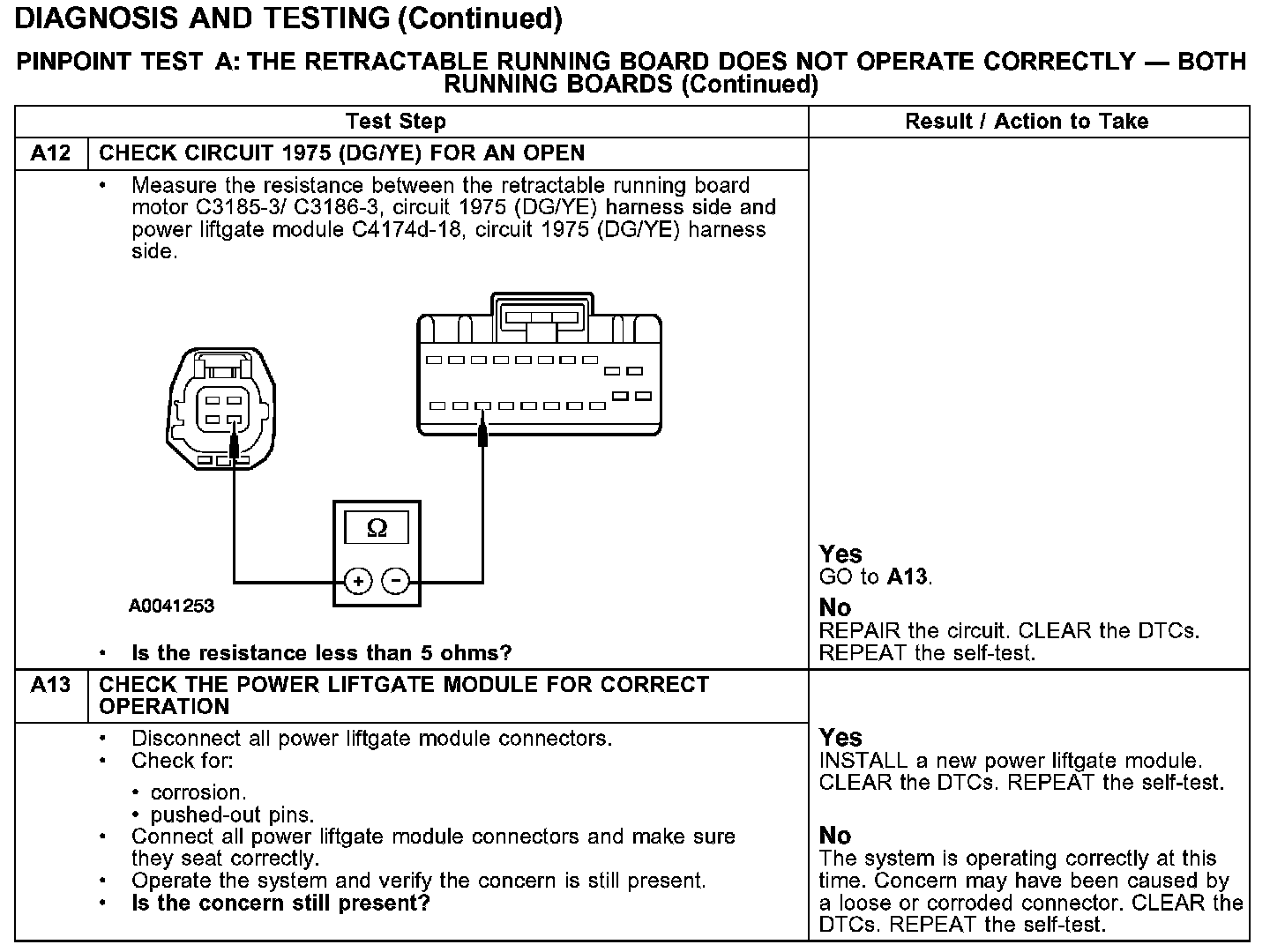

Test A12-A13:
