Retractable Running Board

RETRACTABLE RUNNING BOARD

REMOVAL

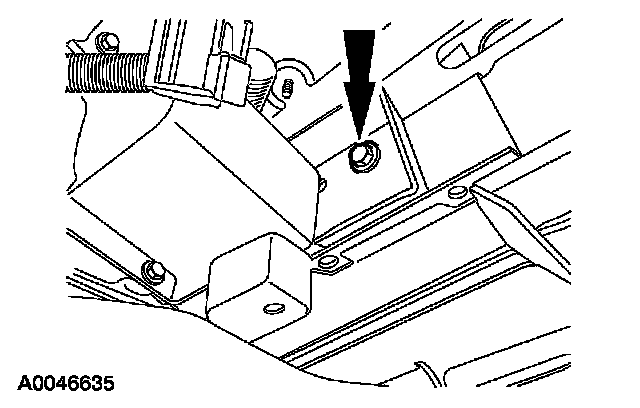

1. NOTE: If the retractable running board cannot be extended, extend the running board by hand.

Extend the retractable running board.

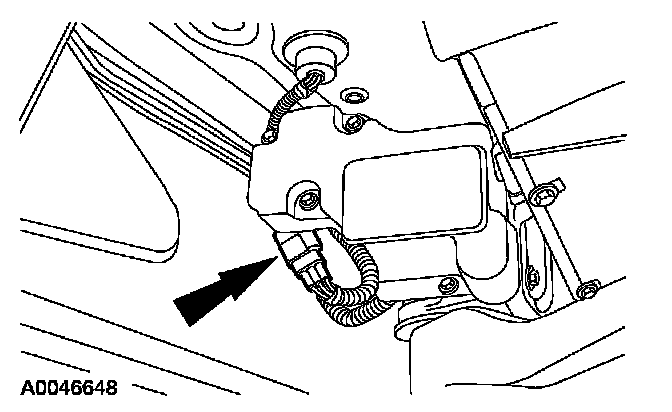

2. Disconnect the retractable running board motor electrical connector.

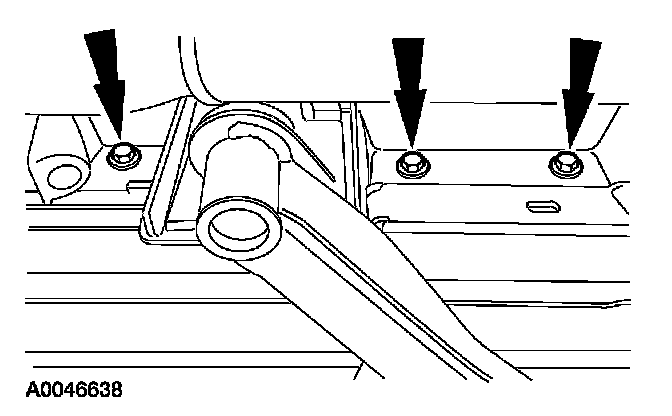

3. Remove the rear retractable running board bolts.

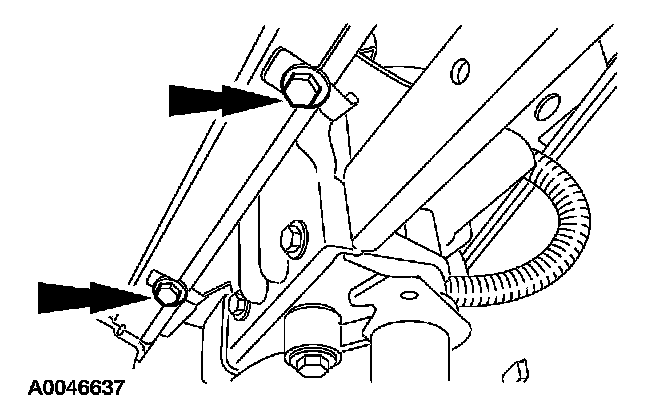

4. Remove the front retractable running board bolts.







5. CAUTION: An assistant is required to hold the retractable running board before removing the lower bolts.

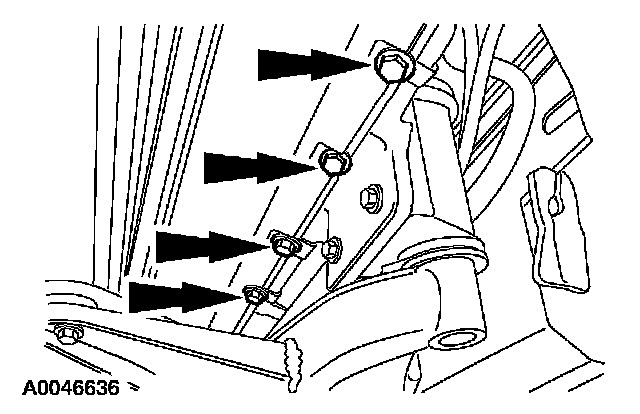

Remove the front retractable running board lower bolts.







6. Remove the rear retractable running board lower bolts and remove the retractable running board.

INSTALLATION
1. To install, reverse the removal procedure.
