Auxiliary Step / Running Board Motor: Service and Repair

RETRACTABLE RUNNING BOARD MOTOR

REMOVAL

1. NOTE: If the retractable running board cannot be extracted, extend the running board by hand.

Extend the retractable running board.

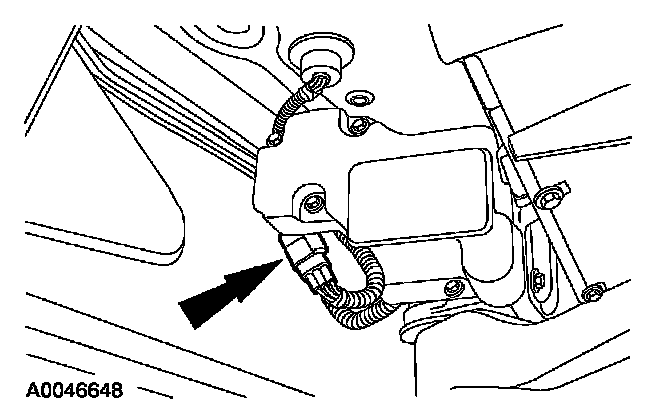

2. Disconnect the retractable running board motor electrical connector.







3. Remove the retractable running board motor.
- Remove the bolts and remove the cover and retractable running board motor.

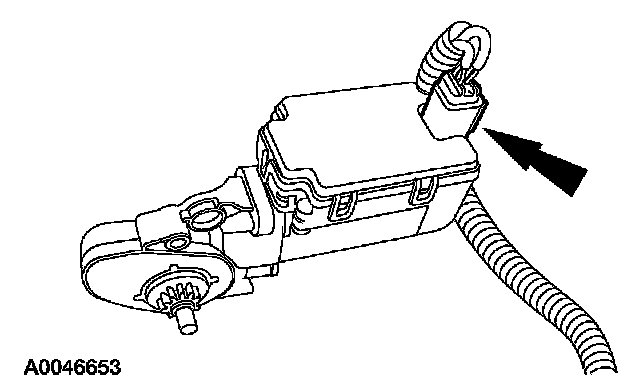

4. Disconnect the retractable running board sensor wiring harness.

INSTALLATION
1. To install, reverse the removal procedure.
