Remote Control: Service and Repair

REAR AUXILIARY AUDIO CONTROLS

REMOVAL
1. Disconnect the battery ground cable.

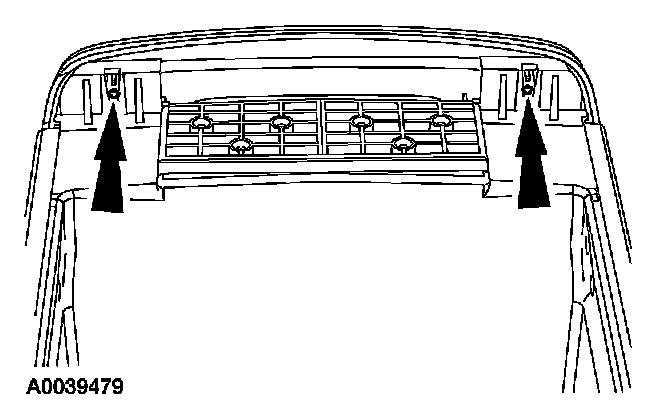

2. Remove the screws underneath the armrest cover.

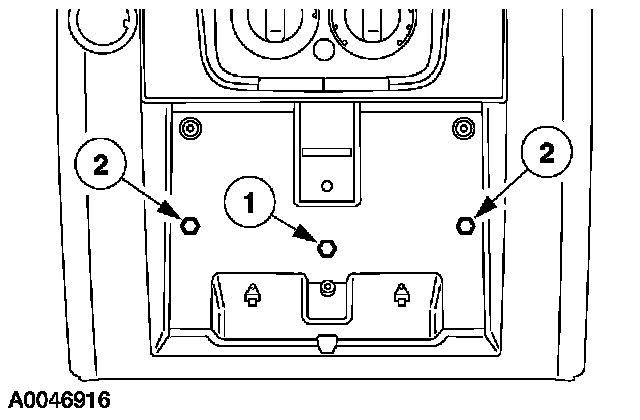

3. Open the rear cup holder and remove the bolt(s).
1 Navigator
2 Expedition

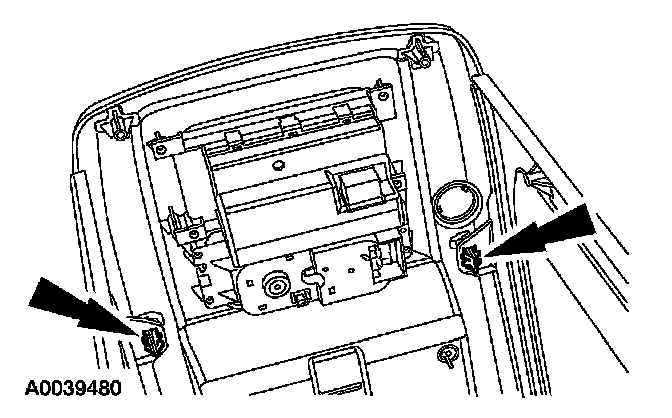

4. Detach the pin-type retainers.

NOTE: Standard audio is shown, others are similar

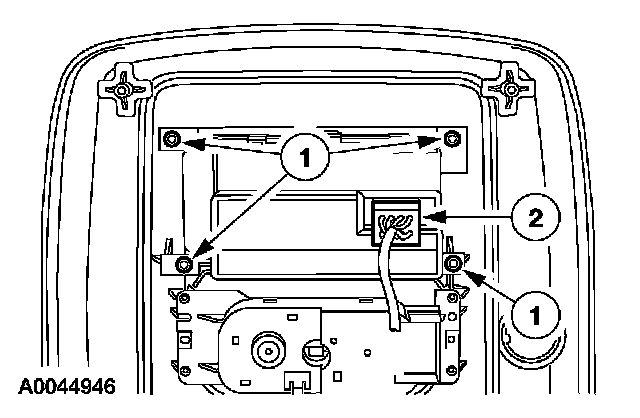

5. Remove the rear auxiliary audio control unit.
1 Remove the screws.
2 Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
