Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lincoln Truck
>>
2004
>>
Navigator 2WD V8-5.4L DOHC VIN R
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test I
Test I
PINPOINT TEST I:
NAVIGATION SYSTEM
DOES NOT OPERATE CORRECTLY - THE AUDIO UNIT IS INOPERATIVE

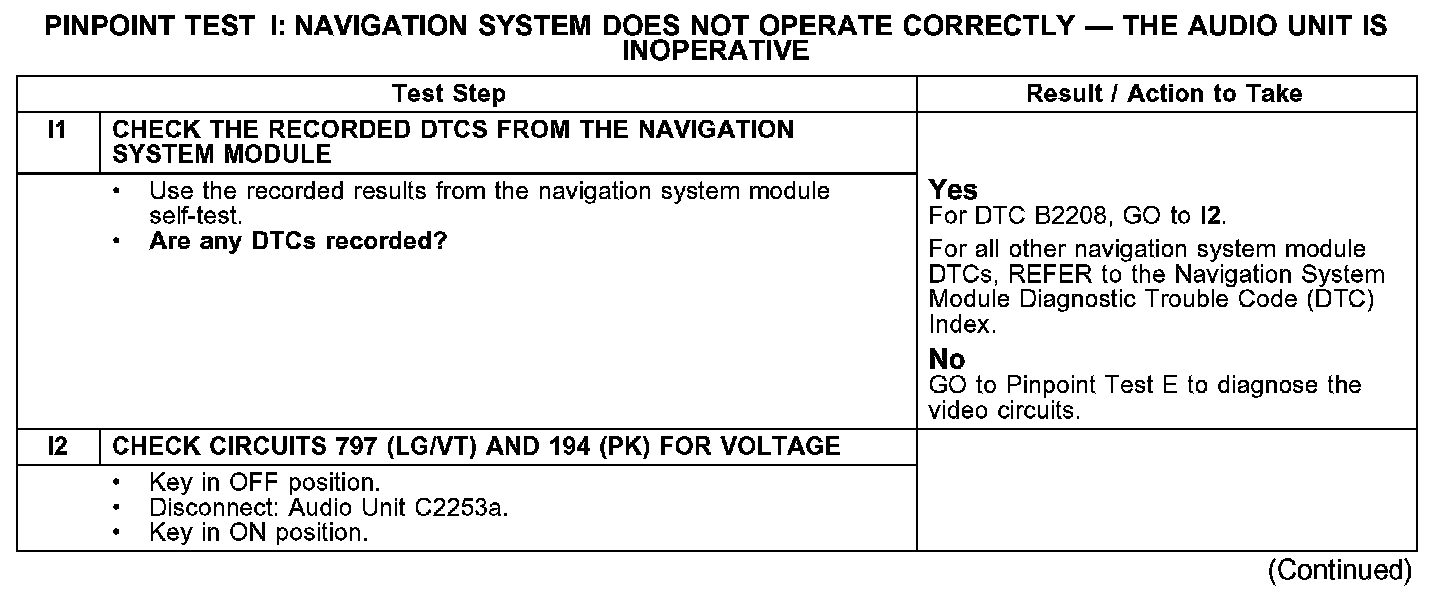

Test I1-I2:

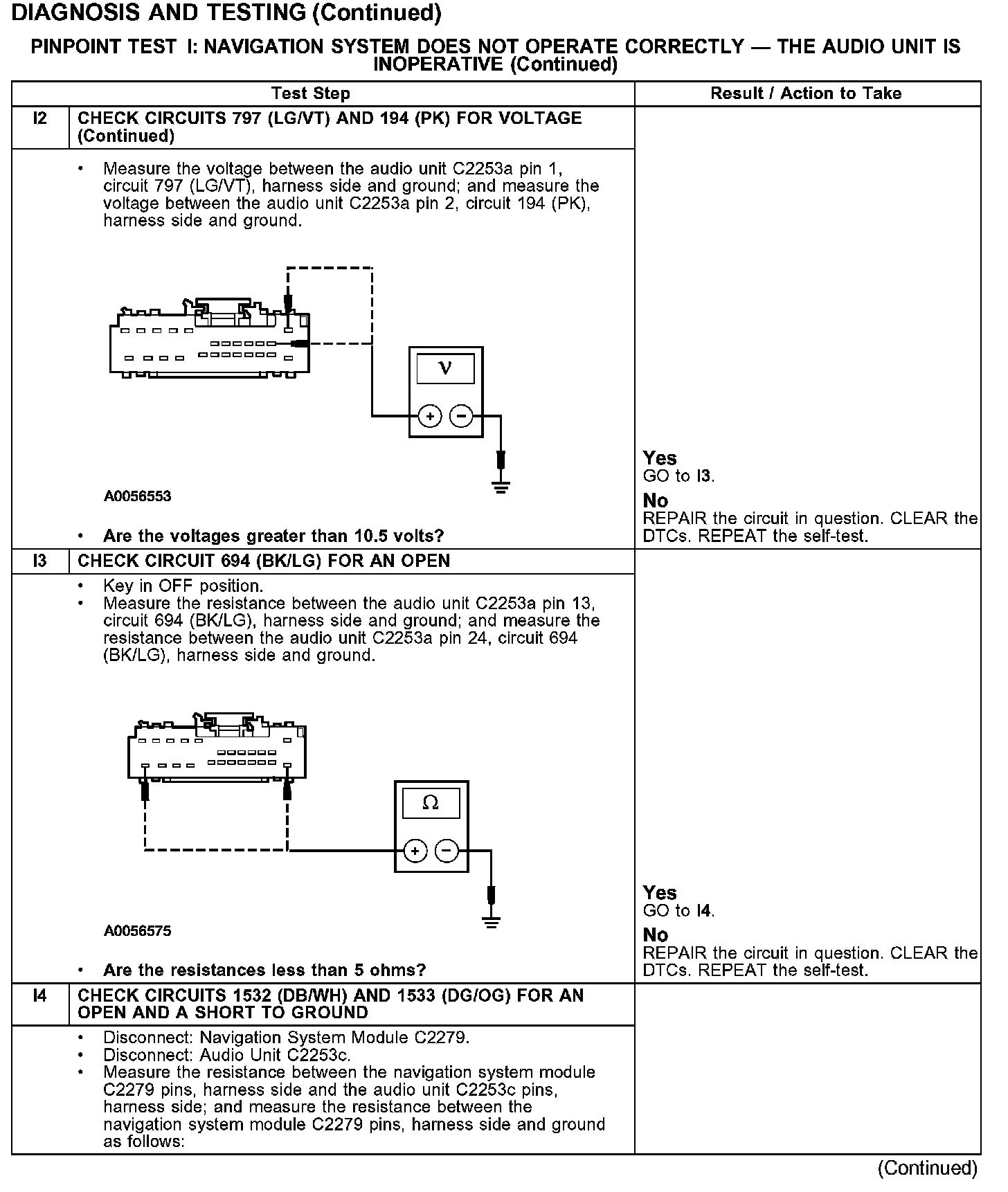

Test I2-I4:

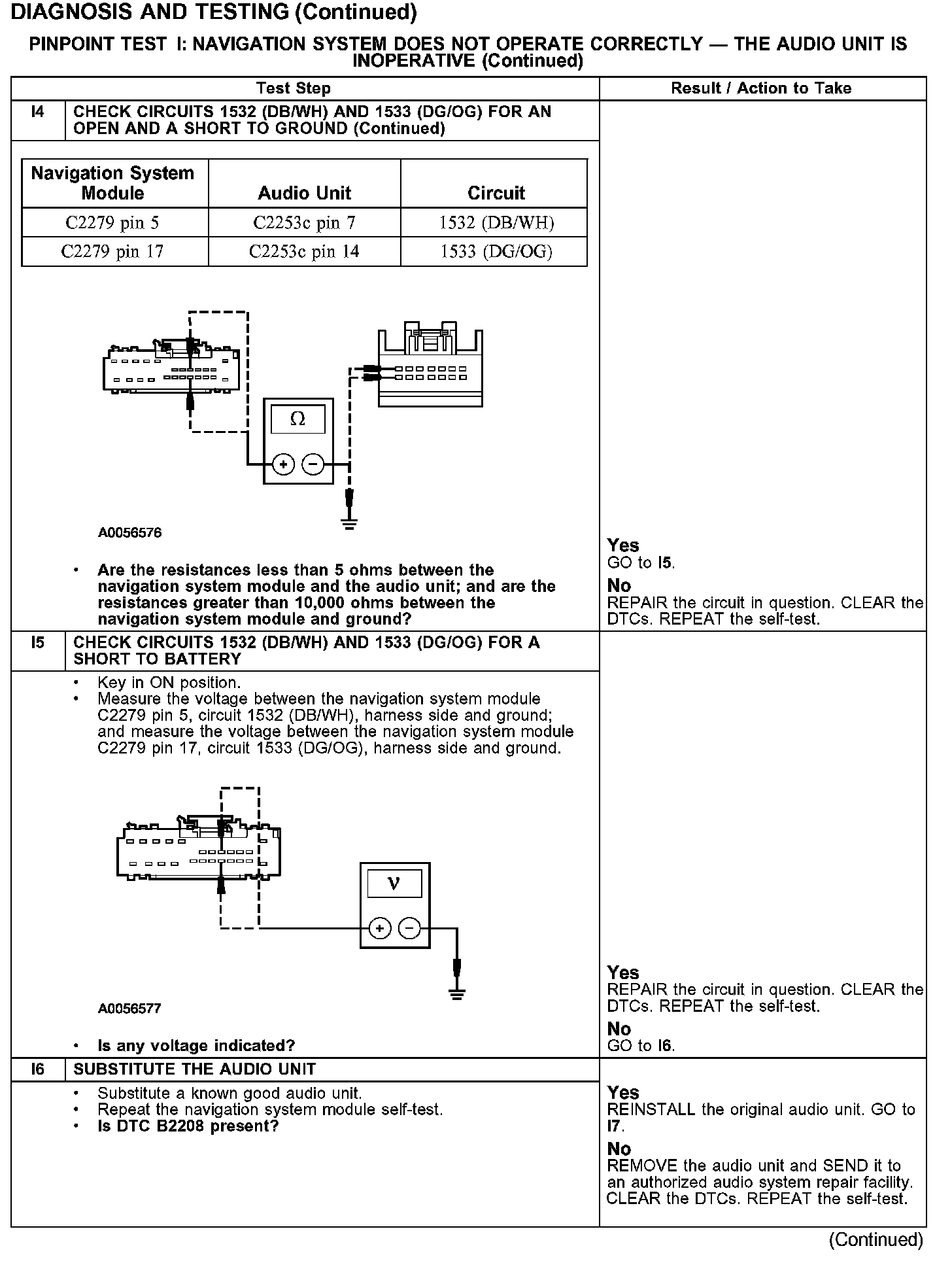

Test I4-I6:
Test I7:
