Test D

PINPOINT TEST D: NAVIGATION SYSTEM DOES NOT OPERATE CORRECTLY - THE VOICE GUIDANCE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

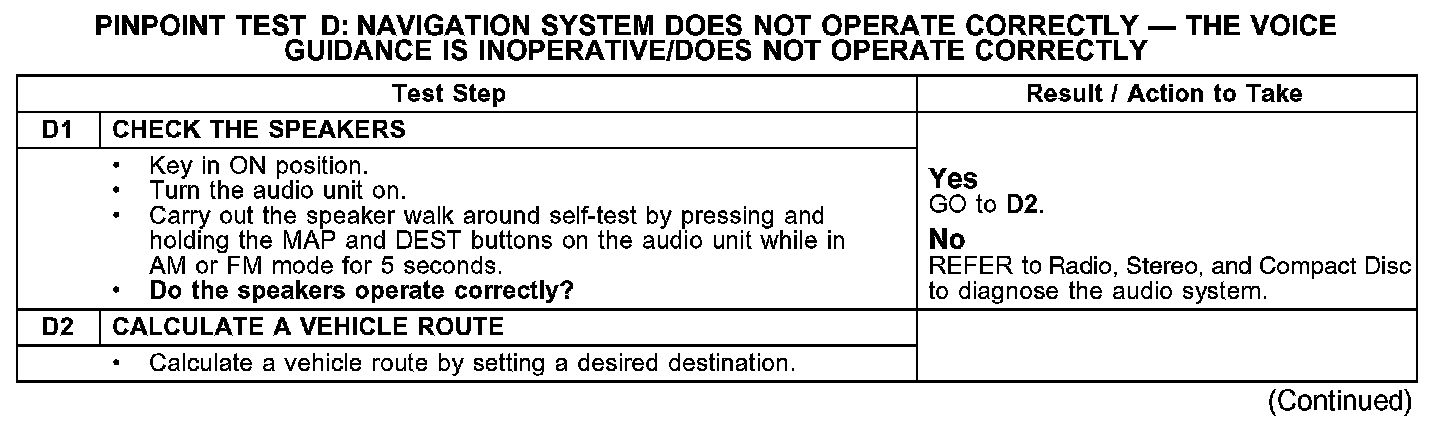

Test D1-D2:

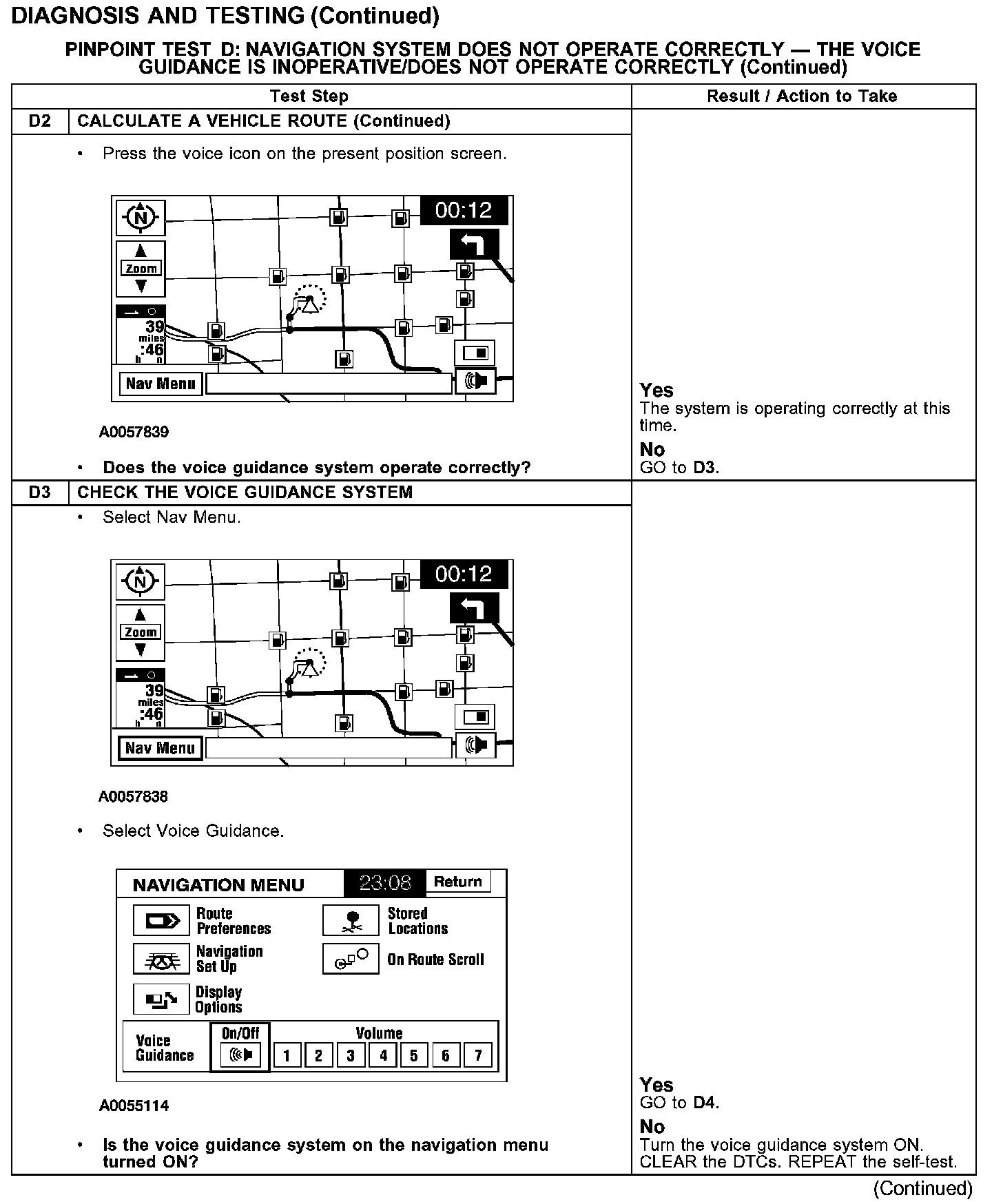

Test D2-D3:

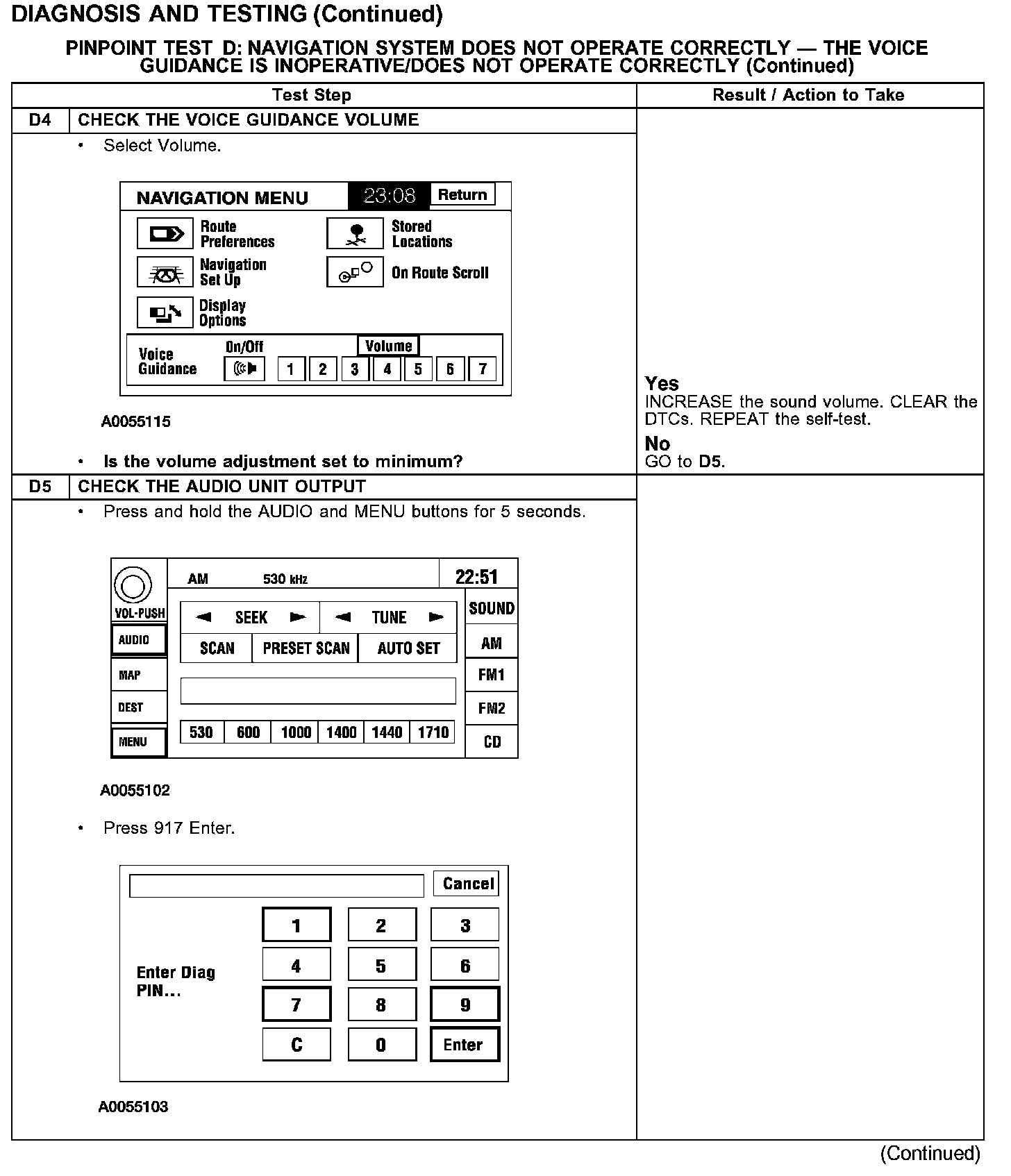

Test D4-D5:

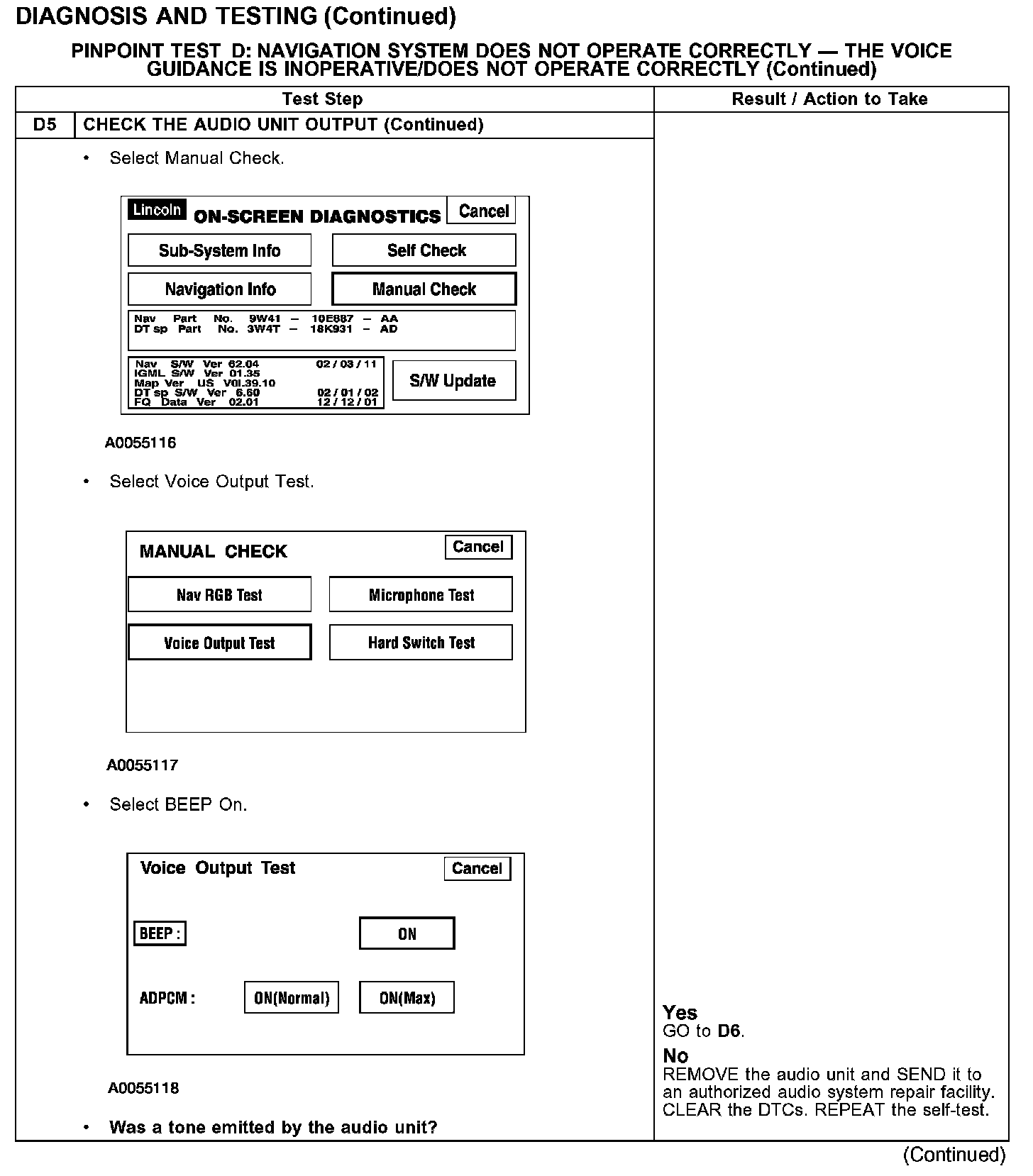

Test D5 Continued:

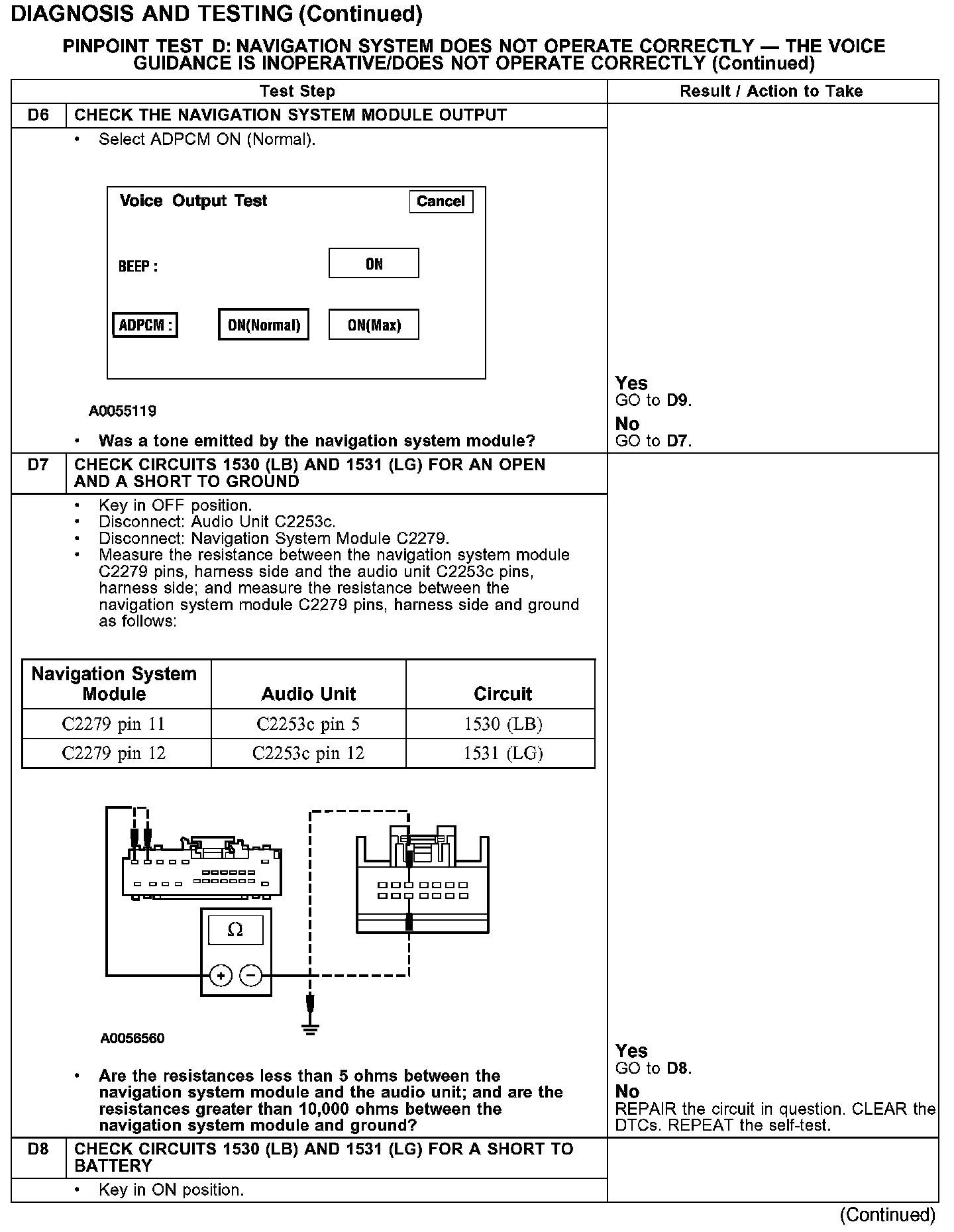

Test D6-D8:

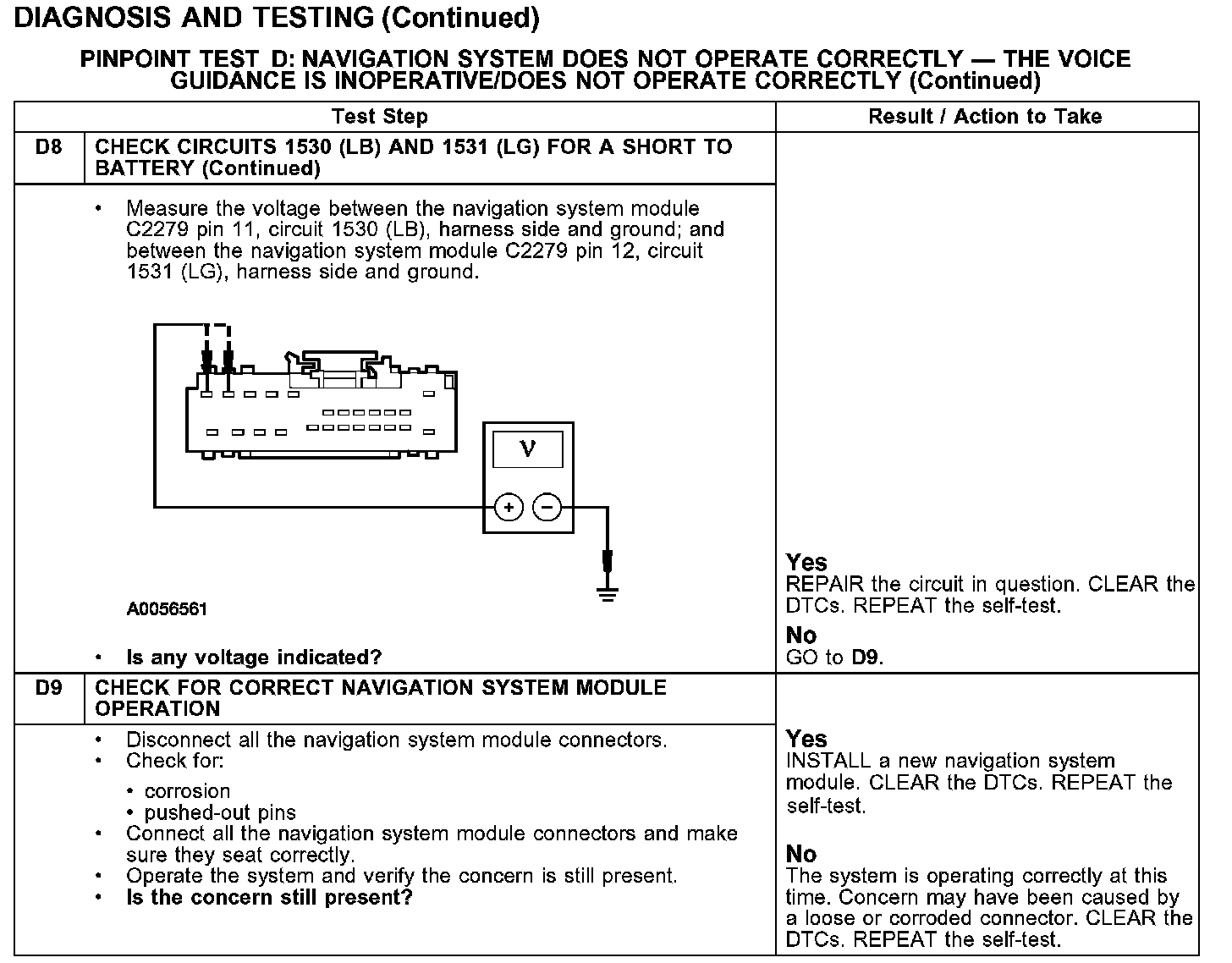

Test D8-D9:
