Test C

PINPOINT TEST C: NAVIGATION SYSTEM DOES NOT OPERATE CORRECTLY - THE POSITION CURSOR IS INOPERATIVE

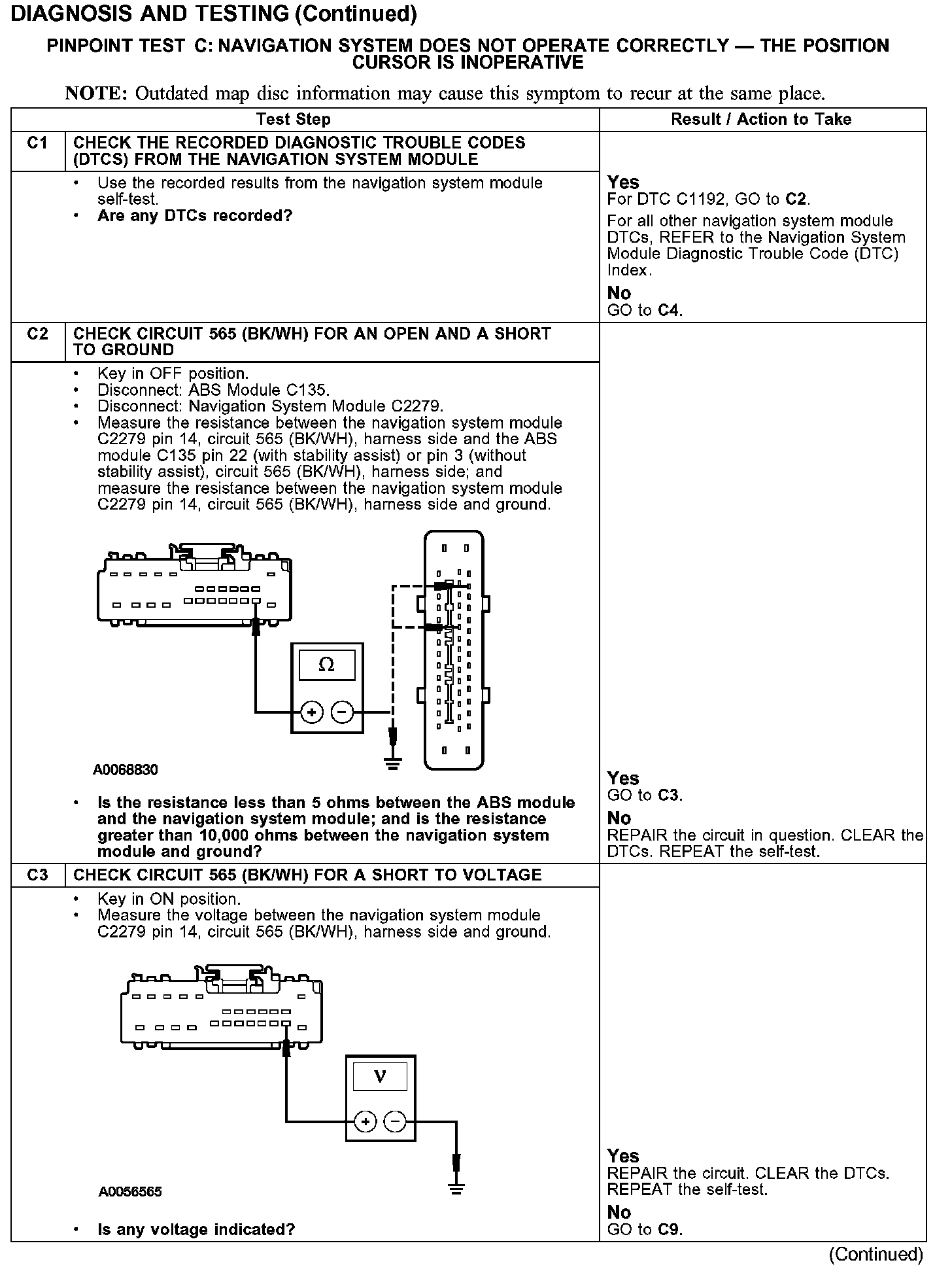

Test C1-C3:

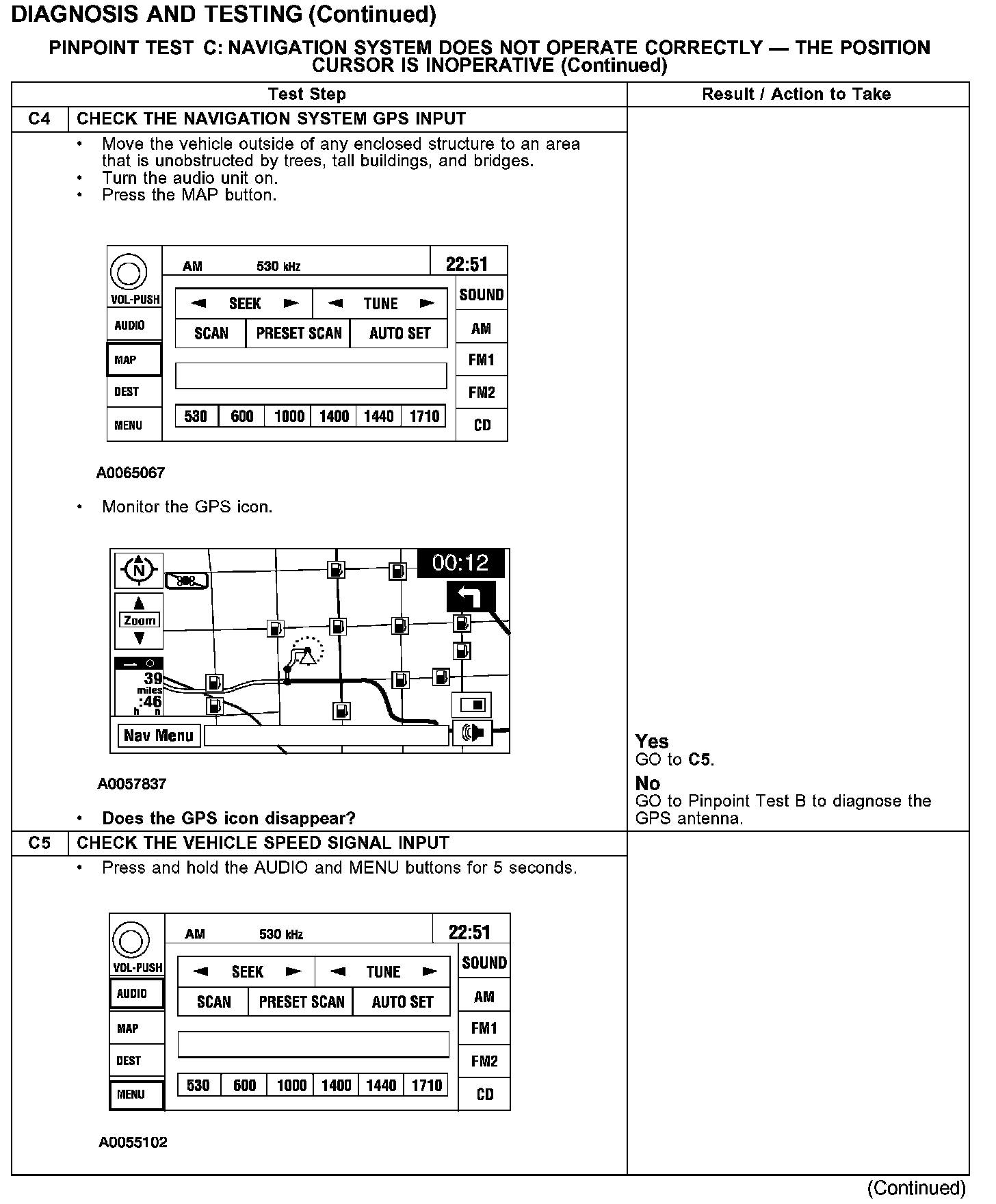

Test C4-C5:

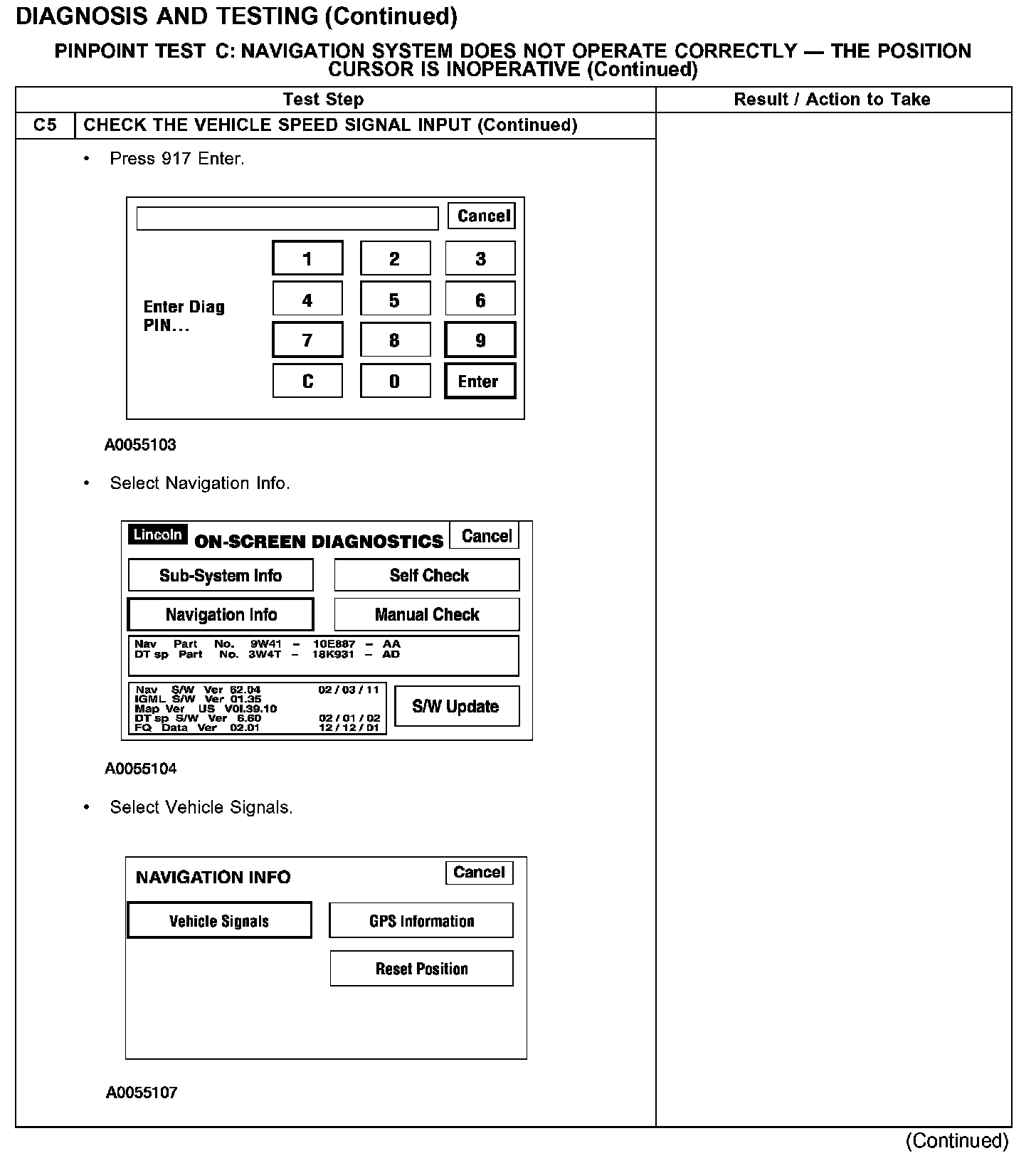

Test C5 Continued:

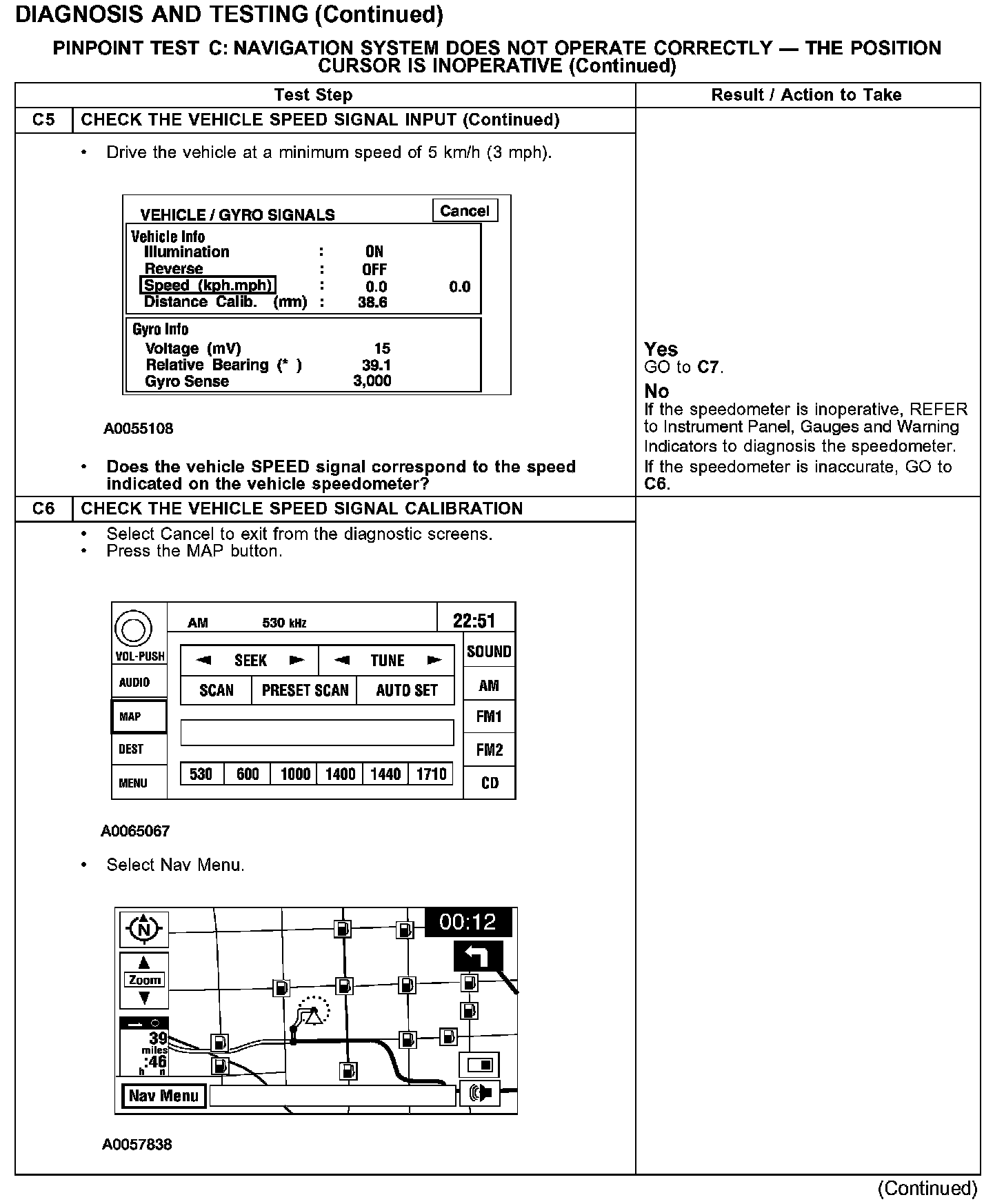

Test C5-C6:

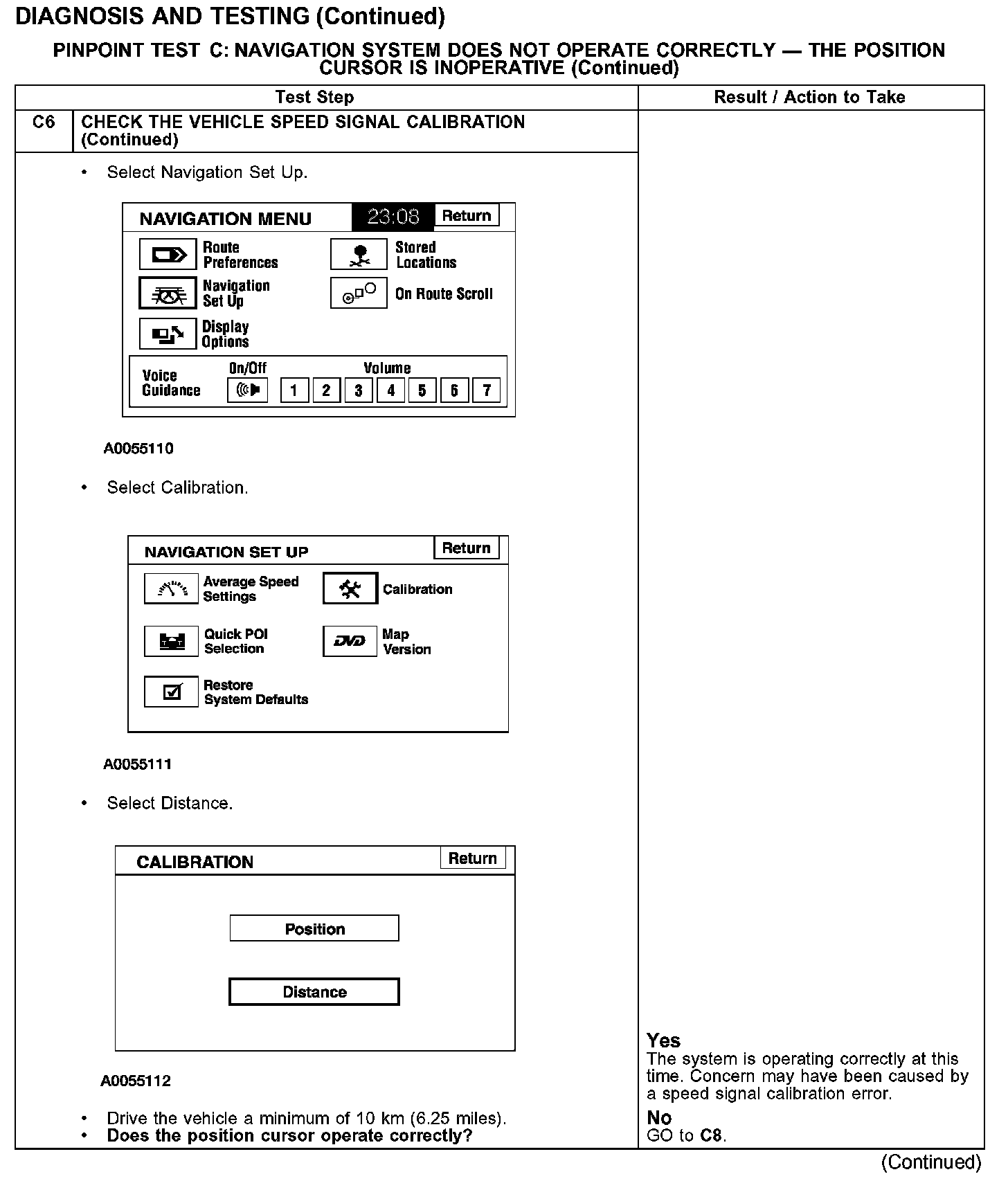

Test C6 Continued:






Test C7-C9:
