Test A

PINPOINT TEST A: NO COMMUNICATION WITH THE NAVIGATION SYSTEM MODULE

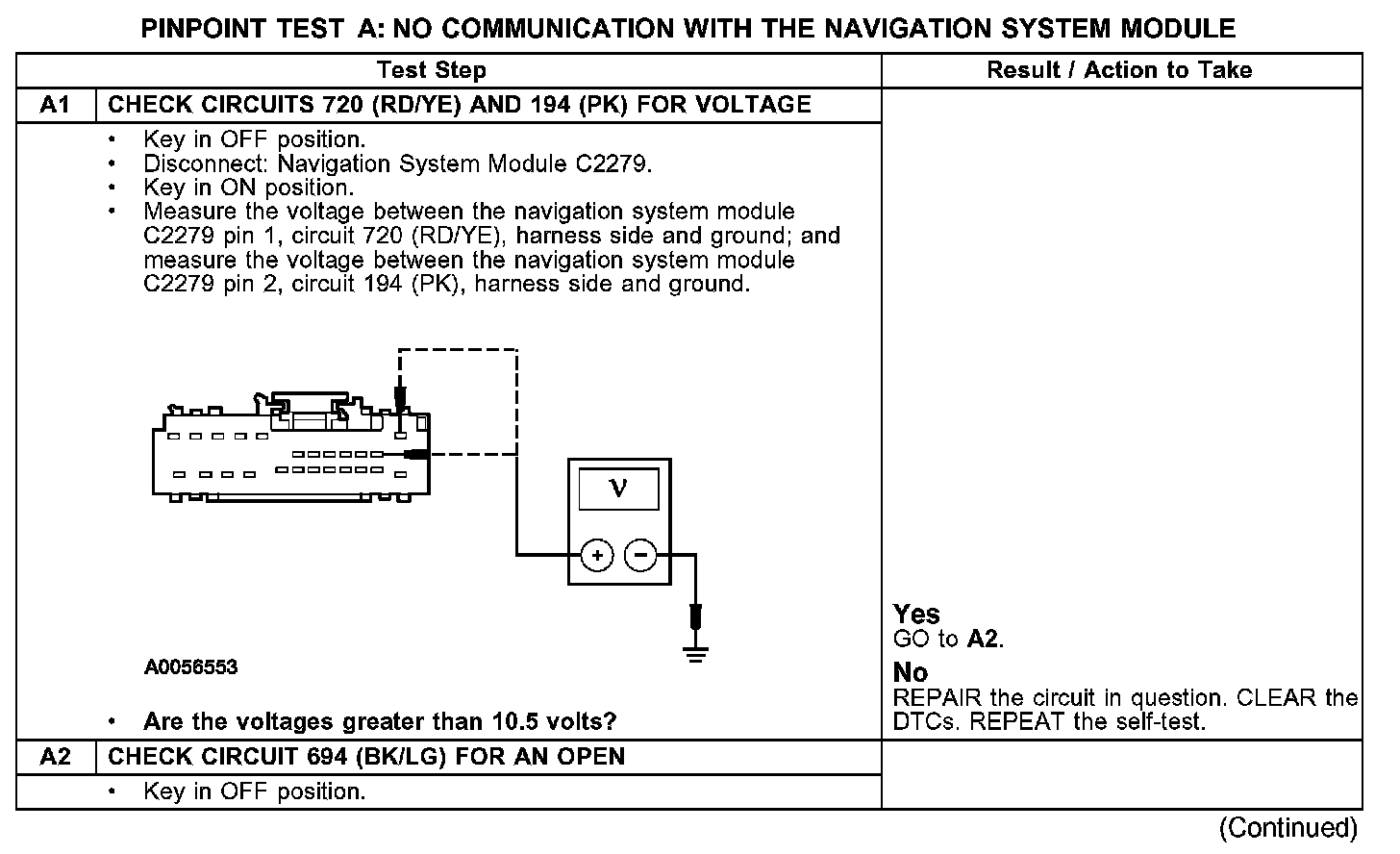

Test A1-A2:

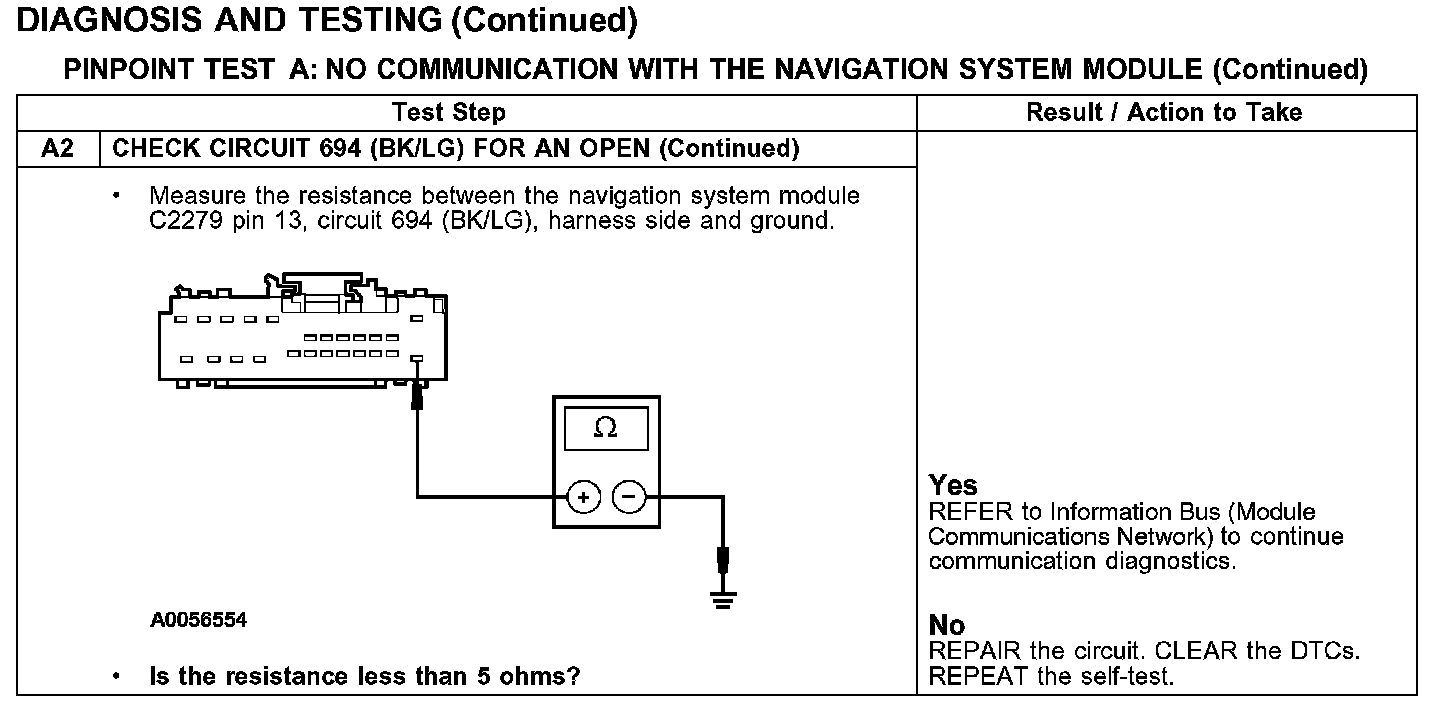

Test A2 Continued:
