Parking Assist Control Module: Service and Repair

PARKING AID MODULE

REMOVAL
1. Remove the LH quarter trim panel.

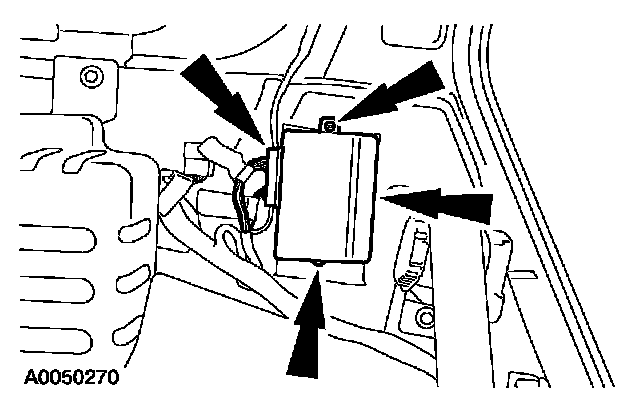

2. Remove the parking aid module (PAM).
- Disconnect the electrical connectors.
- Remove the screws.

INSTALLATION
1. To install, reverse the removal procedure.
2. Perform the Park Aid Calibration and Self-Test Diagnostics.
