Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor

NOTE: Lubricate the sensor O-ring seal with petroleum jelly prior to installing the sensor.

1. On 4x4 vehicles, remove the front driveshaft.
2. For 4x2 vehicles, with the vehicle in PARK, position on a hoist.

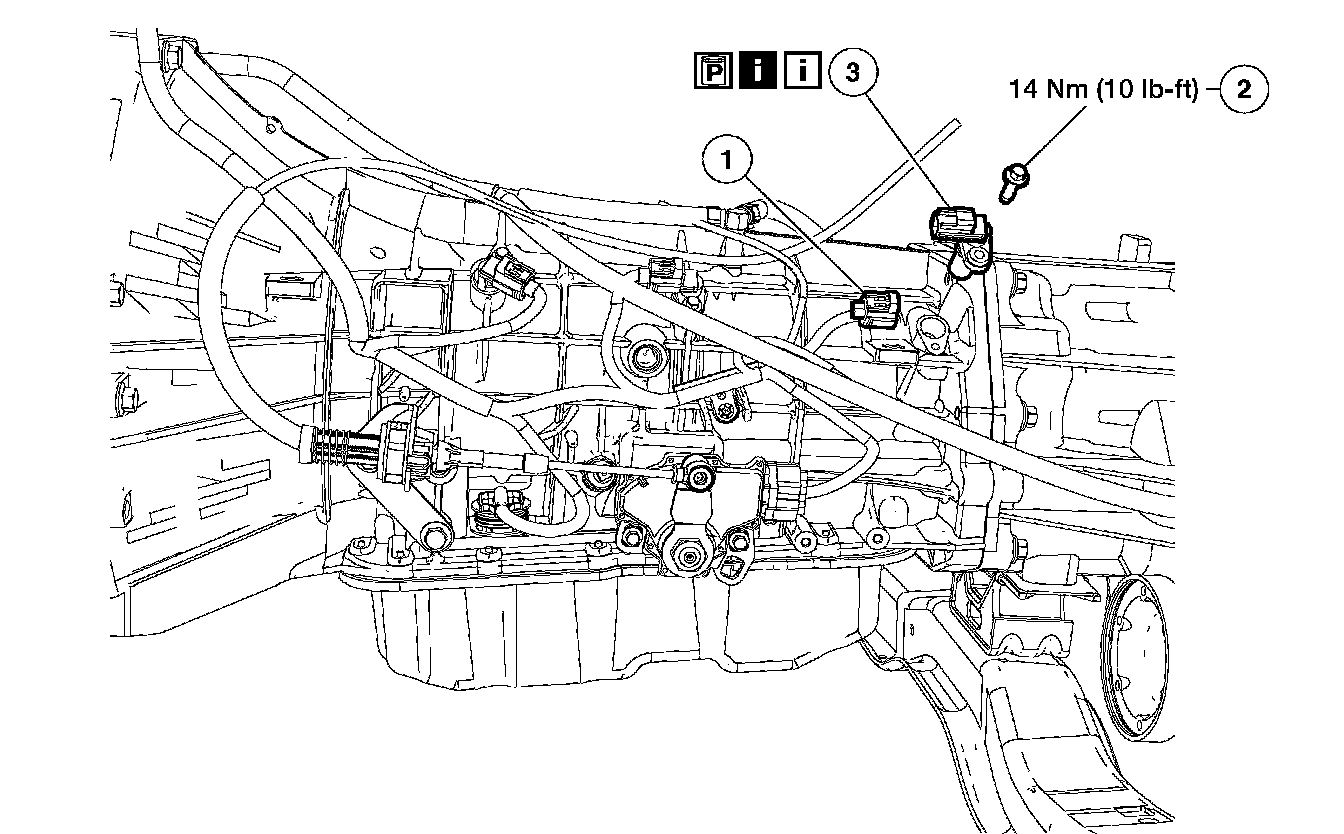

Part 1 Of 2:

Part 2 Of 2:

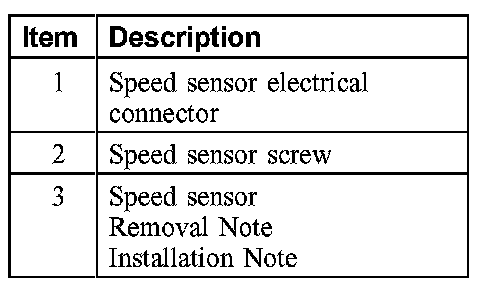

3. Remove the parts in the order indicated in the above illustration and table.
4. To install, reverse the removal procedure.

Item 3: Speed Sensor Removal Note

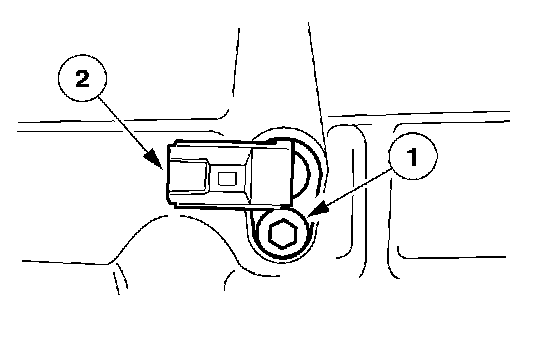

1. Remove the OSS sensor.
1 Remove the OSS sensor screw.
2 Remove the OSS sensor from the transmission.
^ Inspect the OSS sensor O-ring seal for damage. If damaged, install a new O-ring seal.

Item 3: Speed Sensor Installation Note





1. Inspect and lubricate the O-ring seal with petroleum jelly.

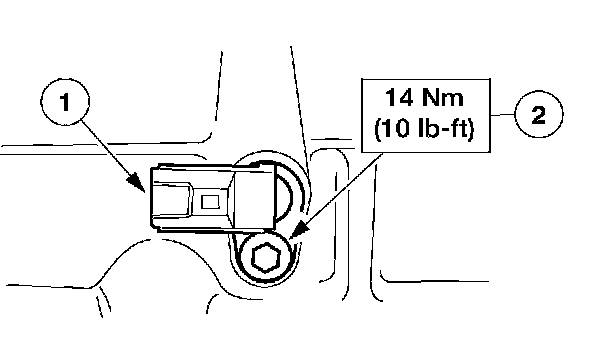

1 Install the OSS sensor into the transmission.
2 Tighten the screw.
