Transmission Mount: Service and Repair

Transmission Support Insulator - 4x2
1. With the vehicle in PARK, position on a hoist.
2. Support the transmission with a transmission jack.

Part 1 Of 2:

Part 2 Of 2:

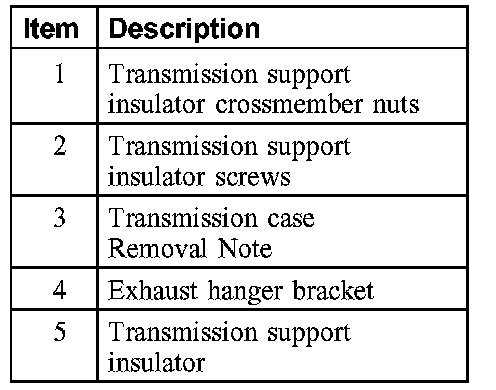

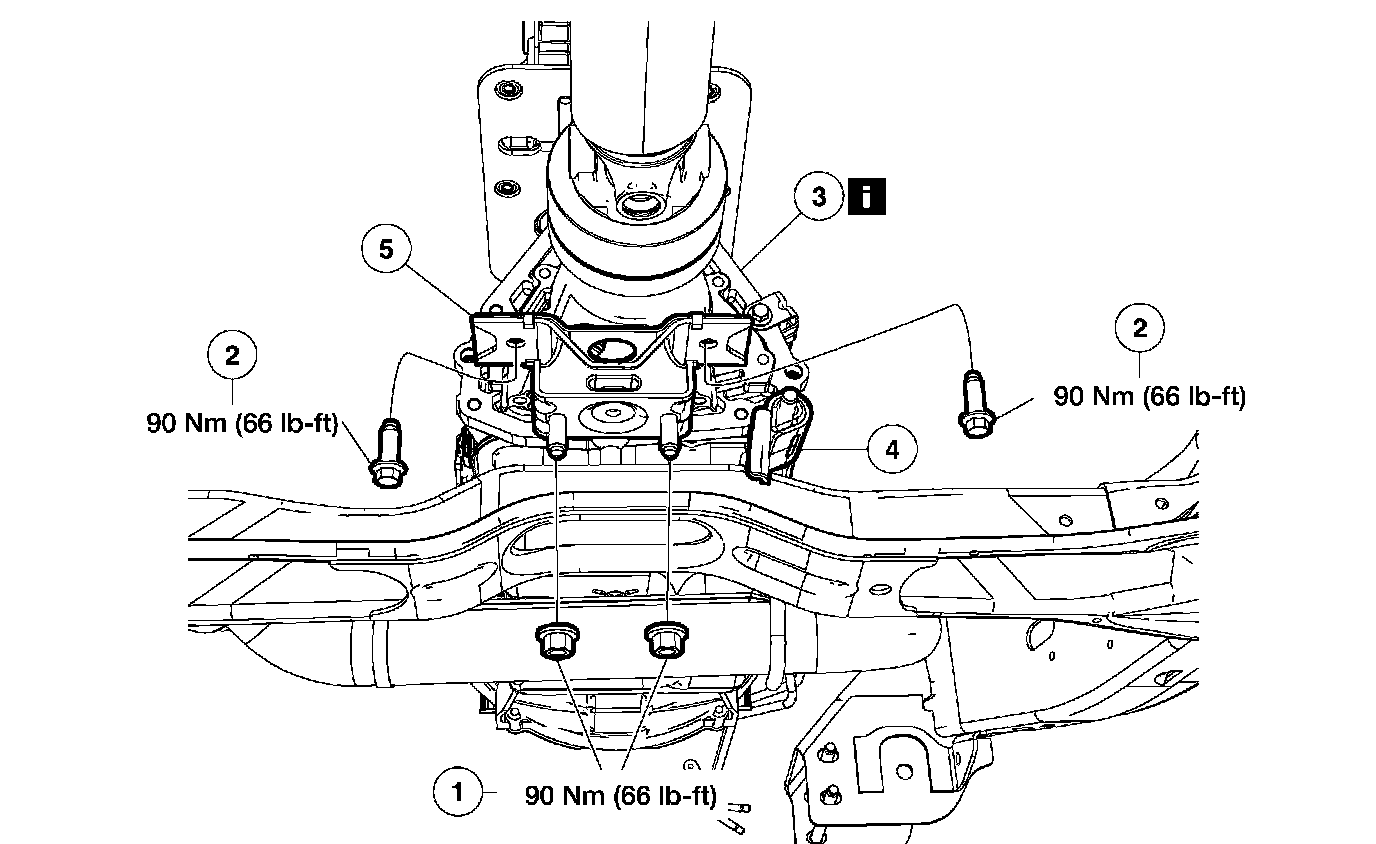

3. Remove the parts in the order indicated in the above illustration and table.
4. To install, reverse the removal procedure.

Item 3: Transmission Case Removal Note

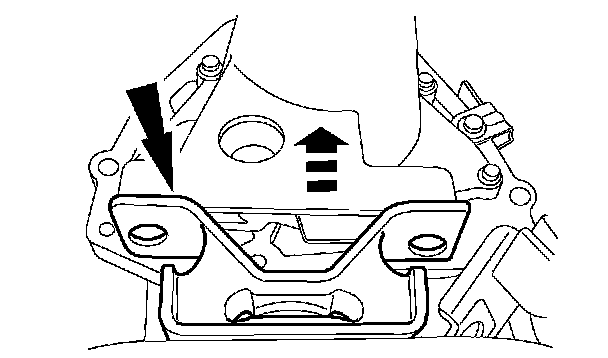

1. Raise the transmission up to gain access to the rear transmission mount.
