Shifter A/T: Service and Repair

Transmission Selector Lever

1. If installing a new transmission range selector bezel or the transmission range selector lever, remove the center console.

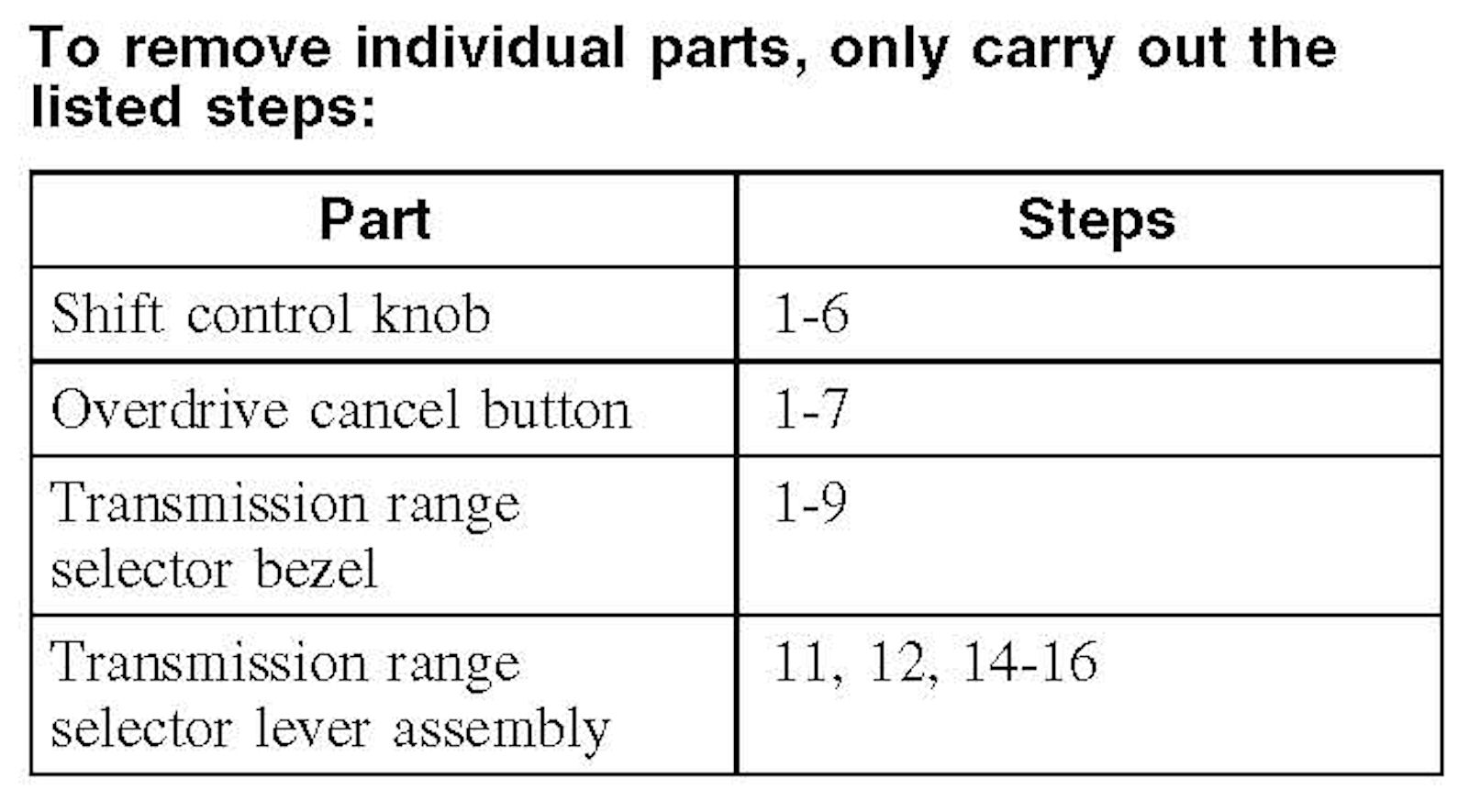

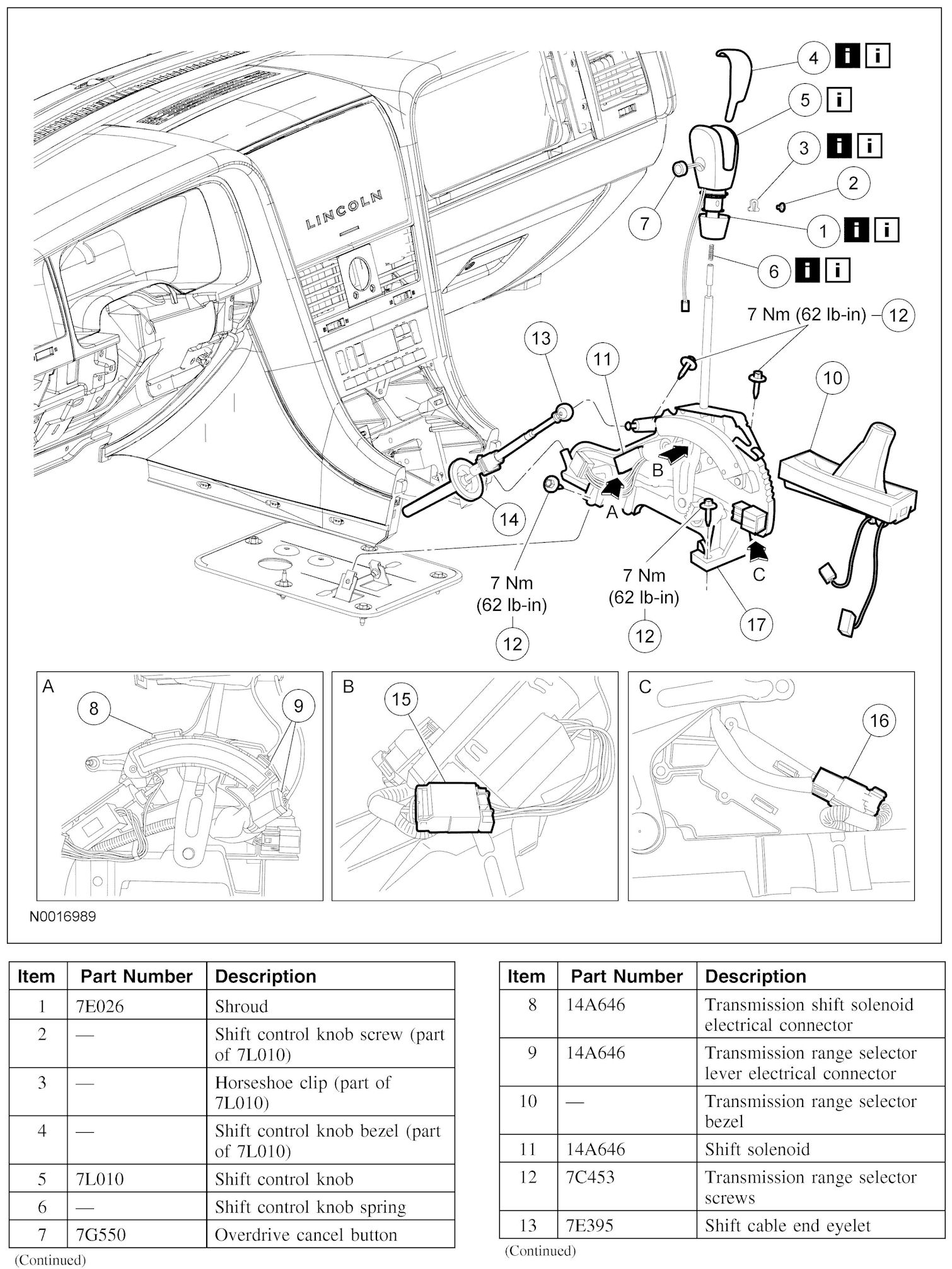

2. Remove the parts in the order indicated in the following illustration and table.

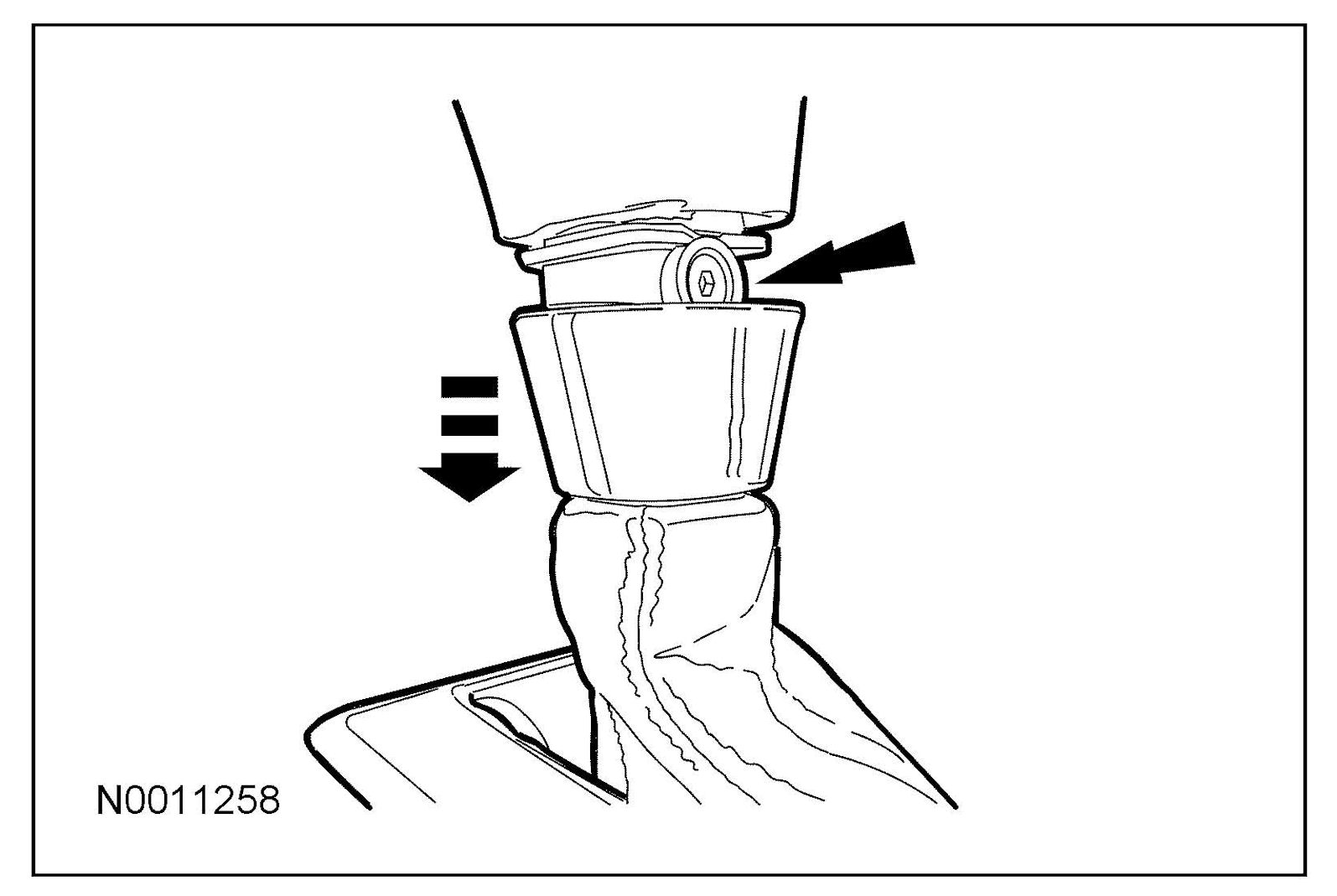

Item 1: Shroud Removal Note

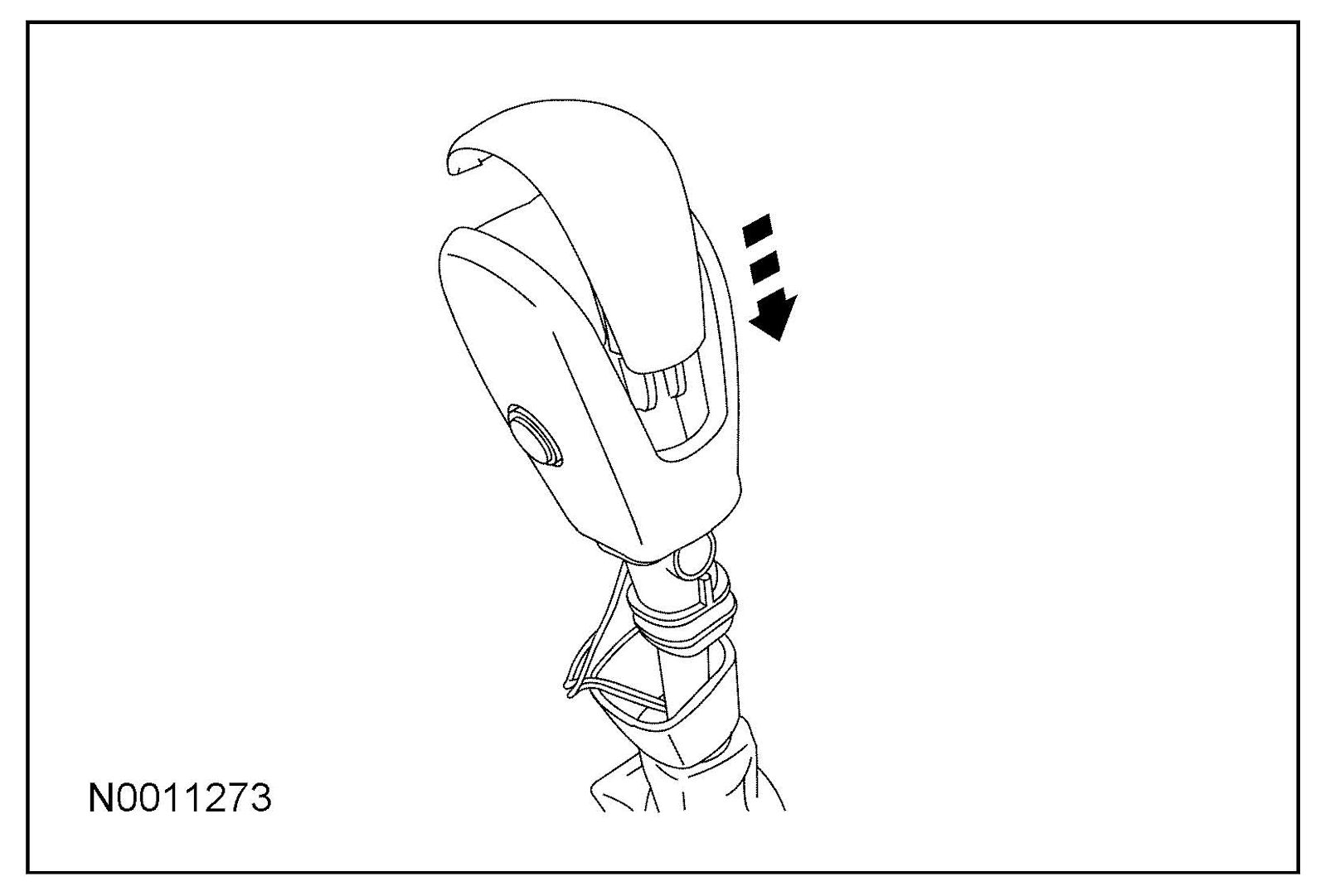

1. Pull down on the knob shroud and boot. Remove the knob Tocating screw.

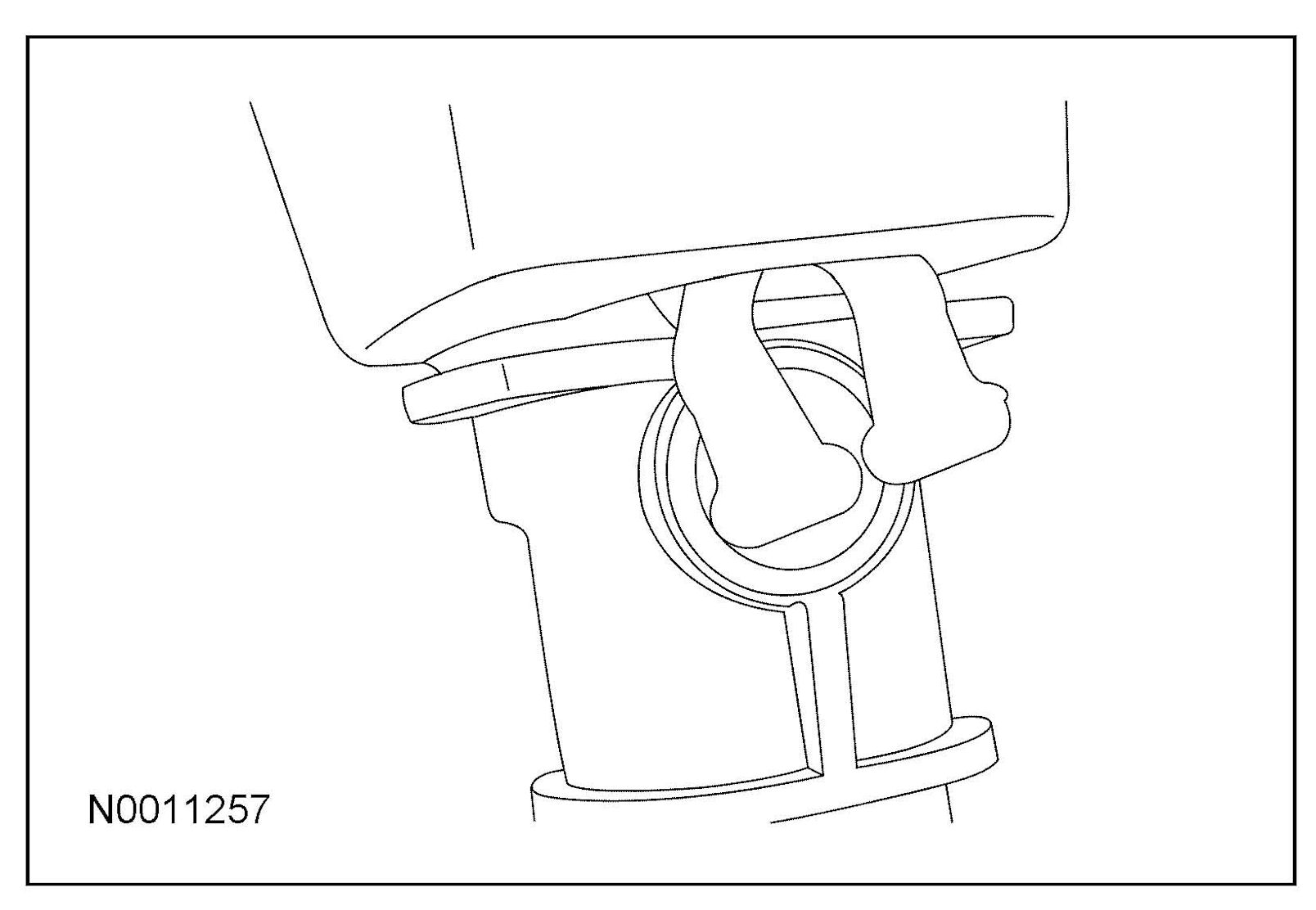

Item 3: Horseshoe Clip Removal Note

1. Carefully remove the horseshoe clip from the rear of the knob.






Item 4: Shift Knob Bezel Removal Note

1. Slide the knob bezel up and remove the shift knob.

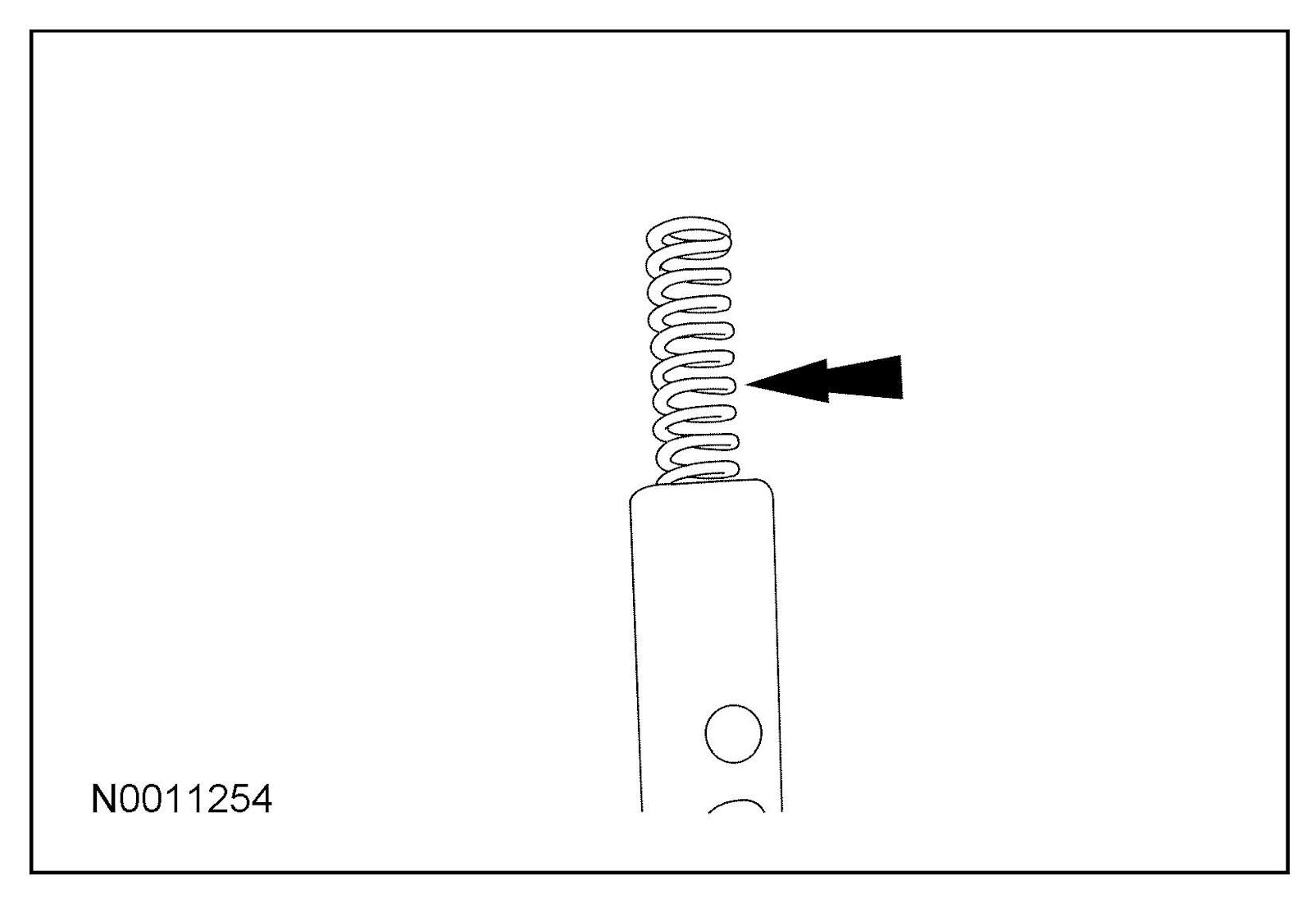

Item 6: Shift Knob Spring Removal Note

1. The spring may dislodge from the shift rod pocket. Locate and retain the spring for installation.






Item 6: Shift Knob Spring Installation Note

1. Make sure the shift knob spring is securely seated in the shift rod pocket.

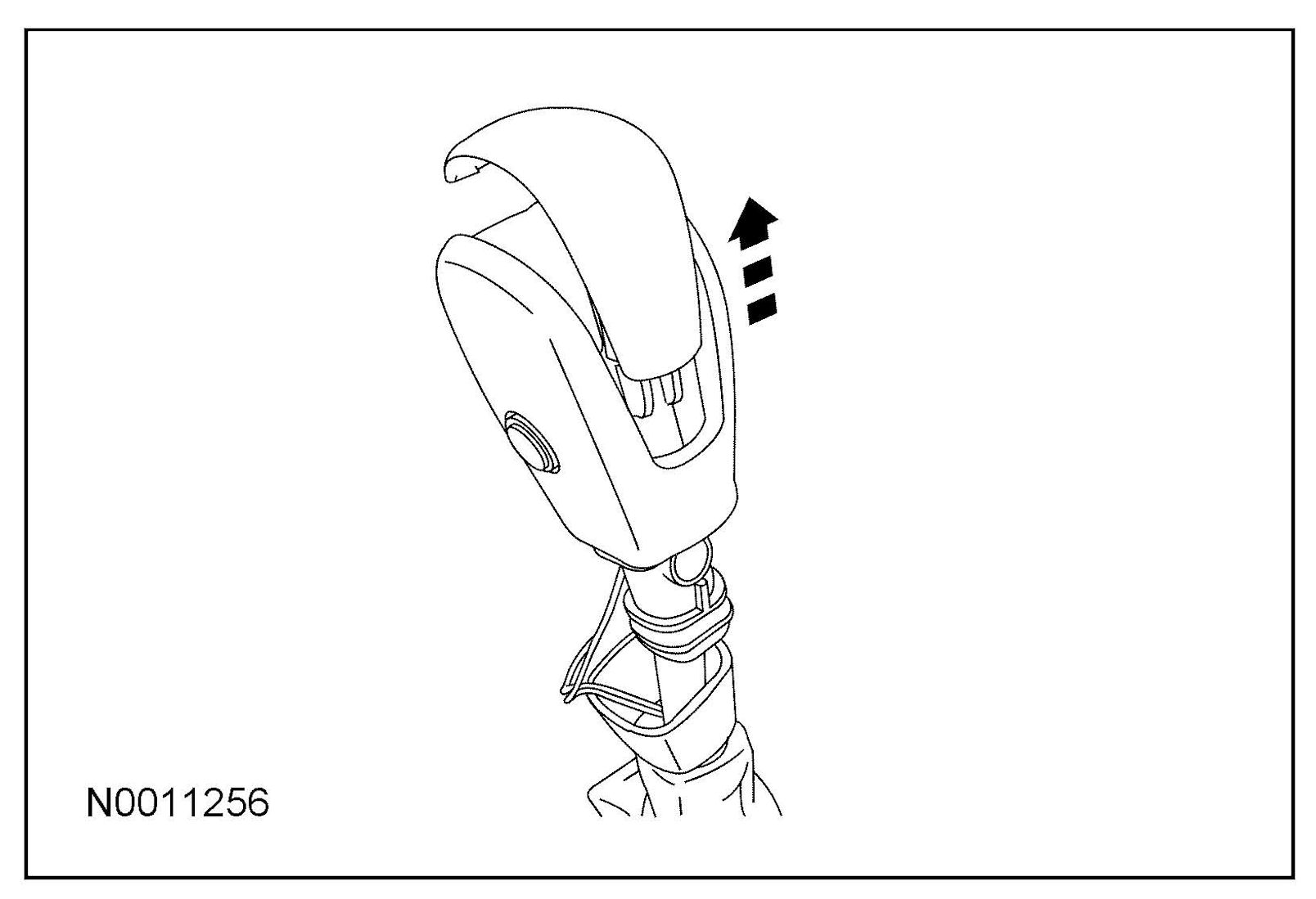

Item 5: Shift Knob Installation Note

1. Carefully position the shift knob on the shift rod while pulling the release button outboard.






Item 4: Shift Knob Bezel Installation Note

1. Install the shift knob bezel into the bottom of the shift knob until the retainer snaps in place.

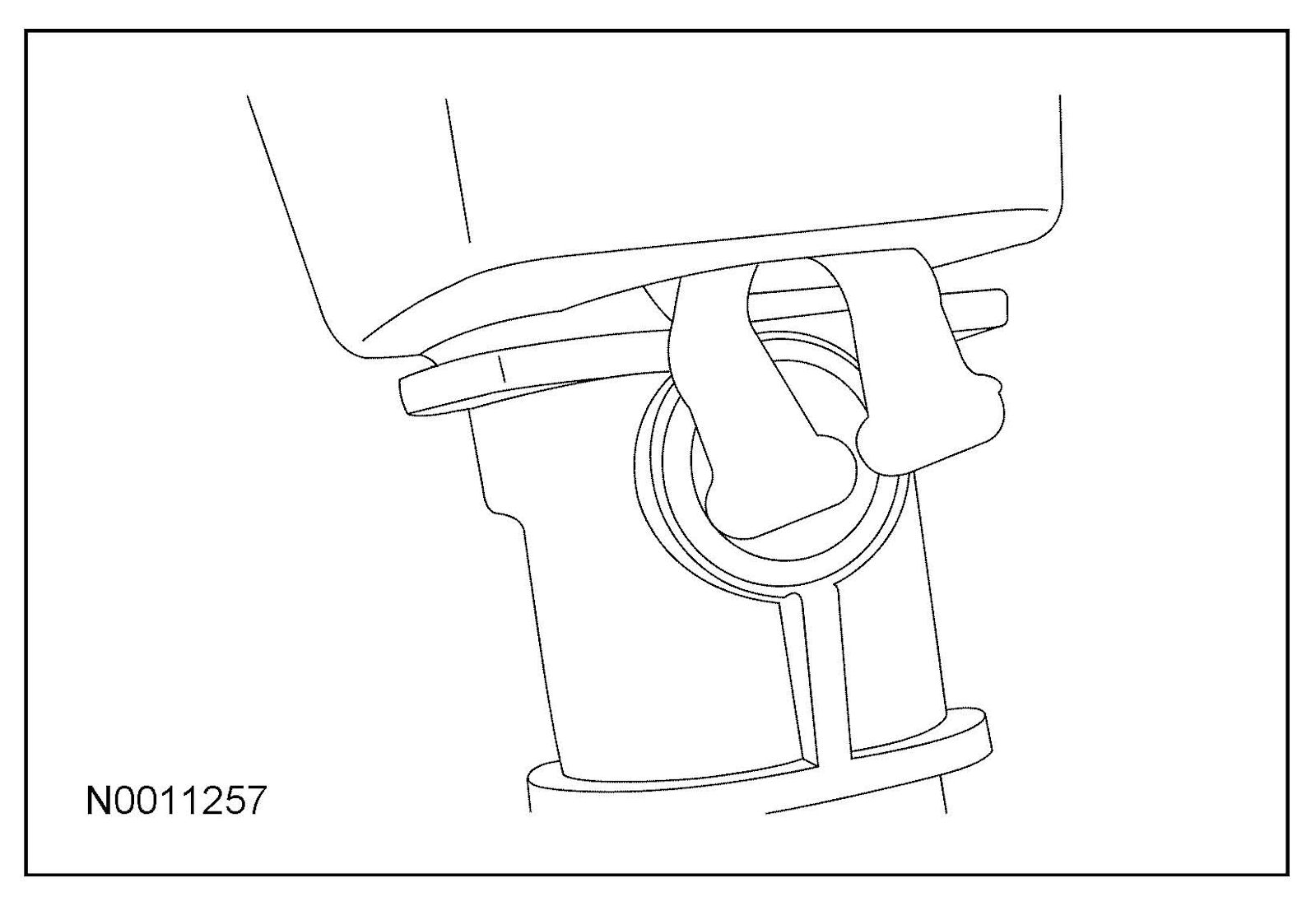

Item 3: Horseshoe Clip Installation Note

1. Insert the horseshoe clip in the shift knob.

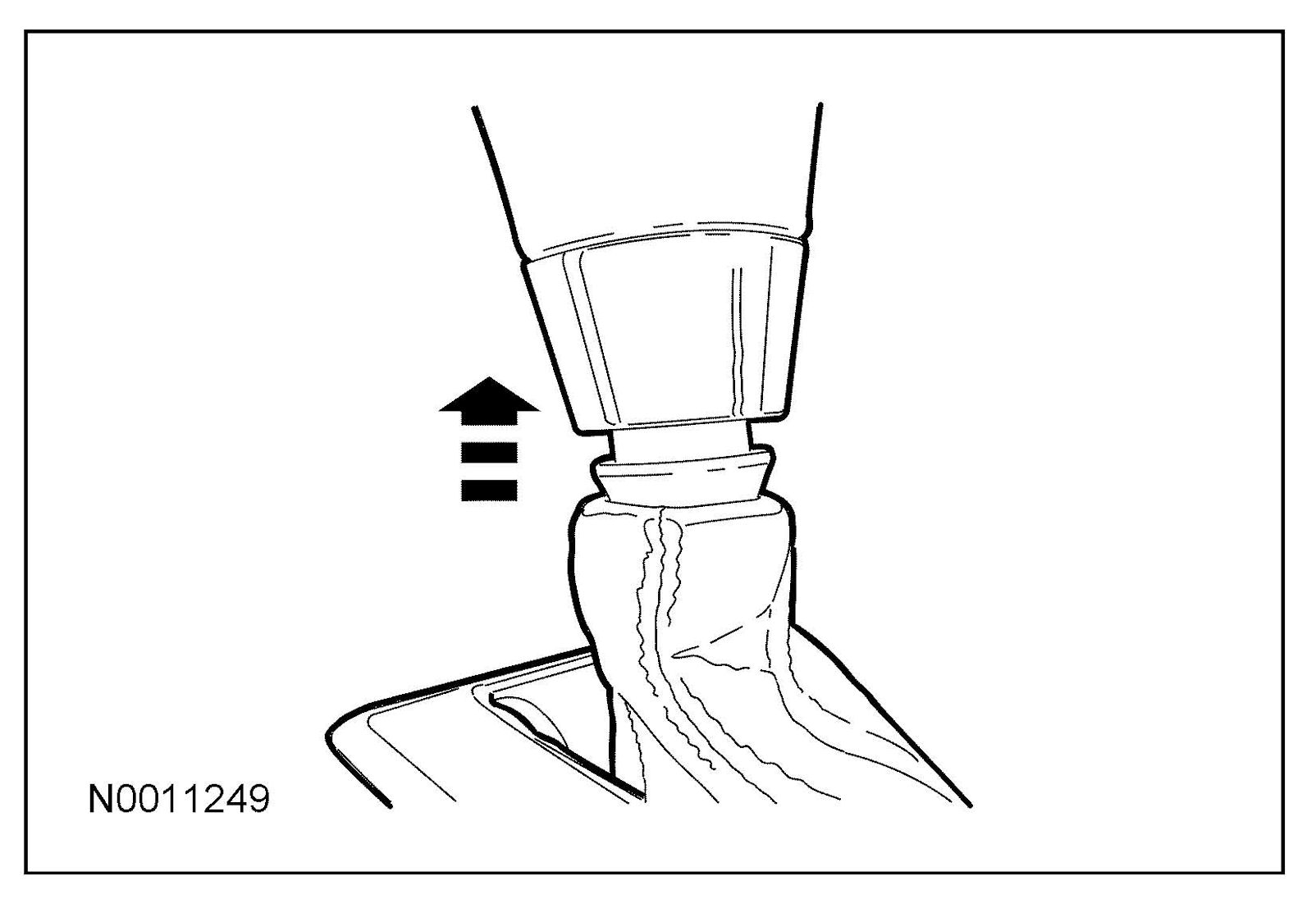

Item 1: Shroud Installation Note

1. Pull up on the knob shroud and boot until the retainers are seated.
