Torque Converter Flushing

Torque Converter Flushing

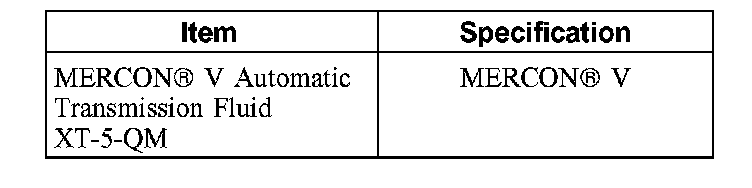

Material

1. CAUTION: The torque converter drain plug and seal are not reusable. If equipped, discard the drain plug and seal, and install a new drain plug and seal assembly.

Using a suitable torque converter fluid cooler cleaner, flush the torque converter.

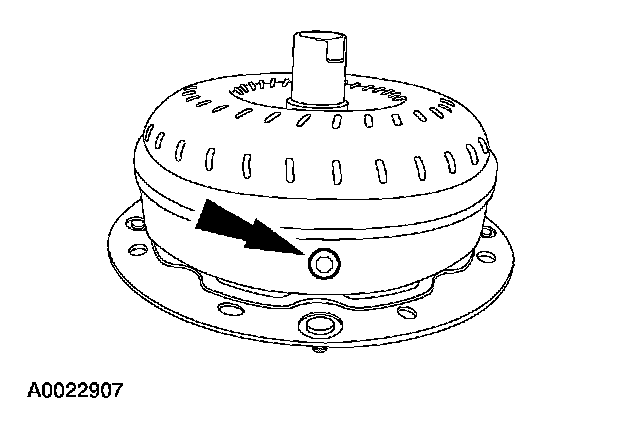

2. After flushing, remove the drain plug, if equipped, and drain the remainder of the transmission fluid.
3. Add 1.9 liters (2 quarts) of clean automatic transmission fluid into the torque converter and agitate by hand.
4. Thoroughly drain the fluid.

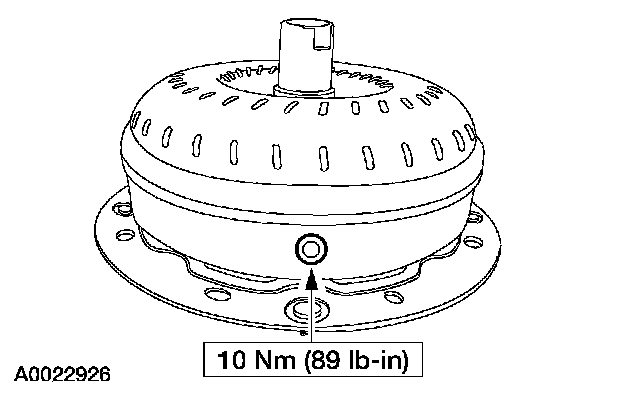

5. If equipped, install a new torque converter drain plug.
