Fuel Injector: Service and Repair

FUEL INJECTION SUPPLY MANIFOLD AND FUEL INJECTOR

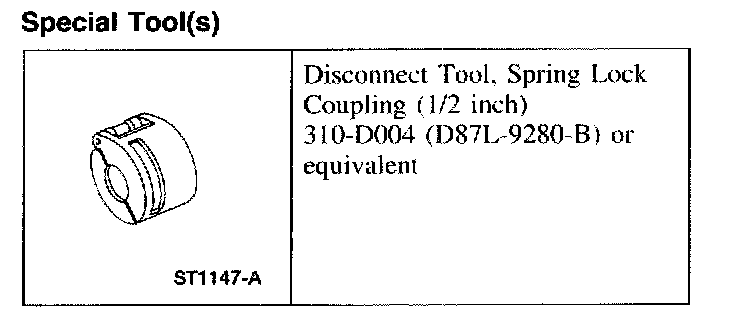

Disconnect Tool, Spring Lock Coupling:

SPECIAL TOOL(S)

WARNING:
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions can result in personal injury.
- Fuel in the system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components, the fuel system must be relieved. Failure to follow these instructions can result in personal injury.

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the engine appearance cover.
3. Remove the air cleaner assembly.
4. Release the fuel pressure.

Part 1:

Part 2:

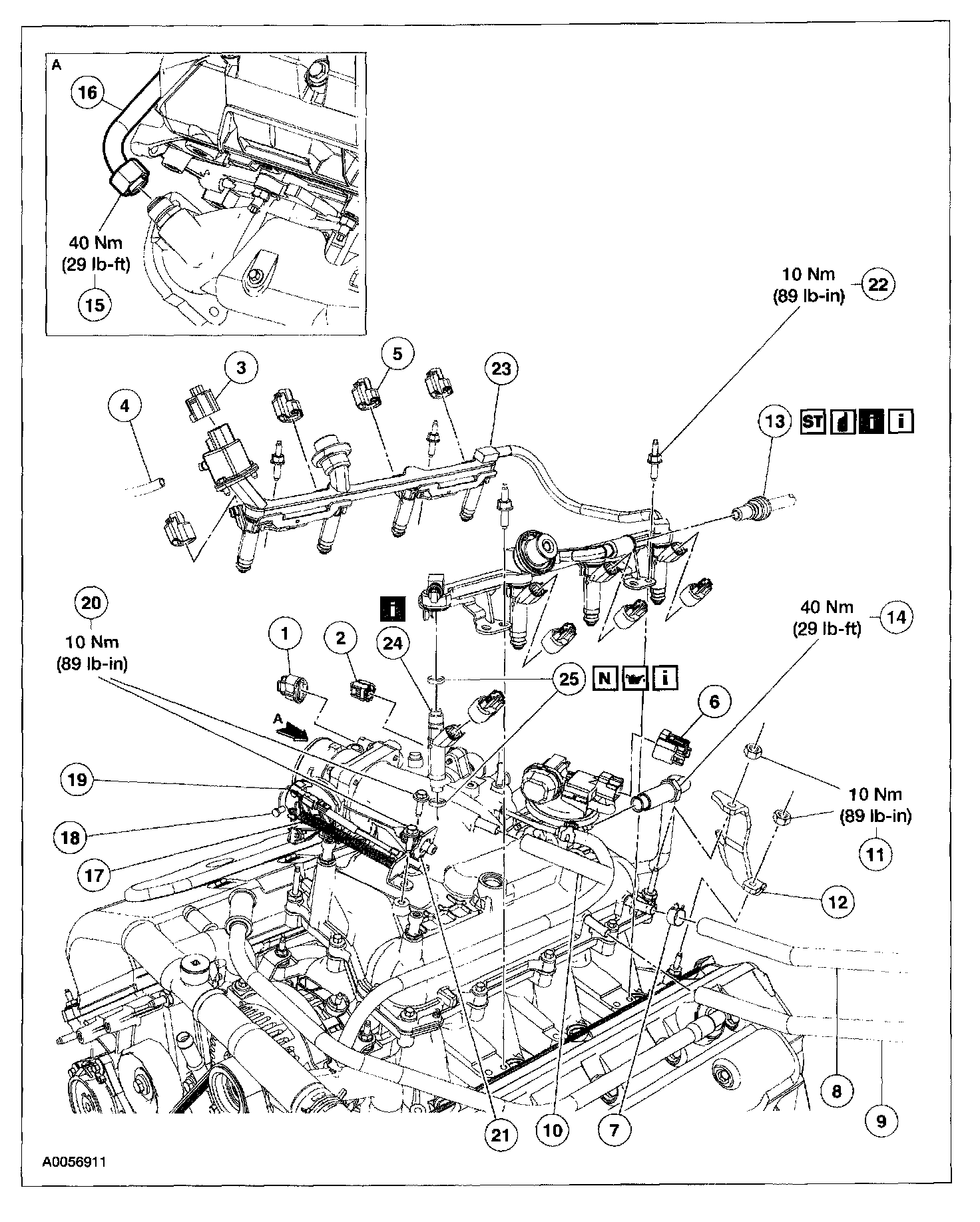

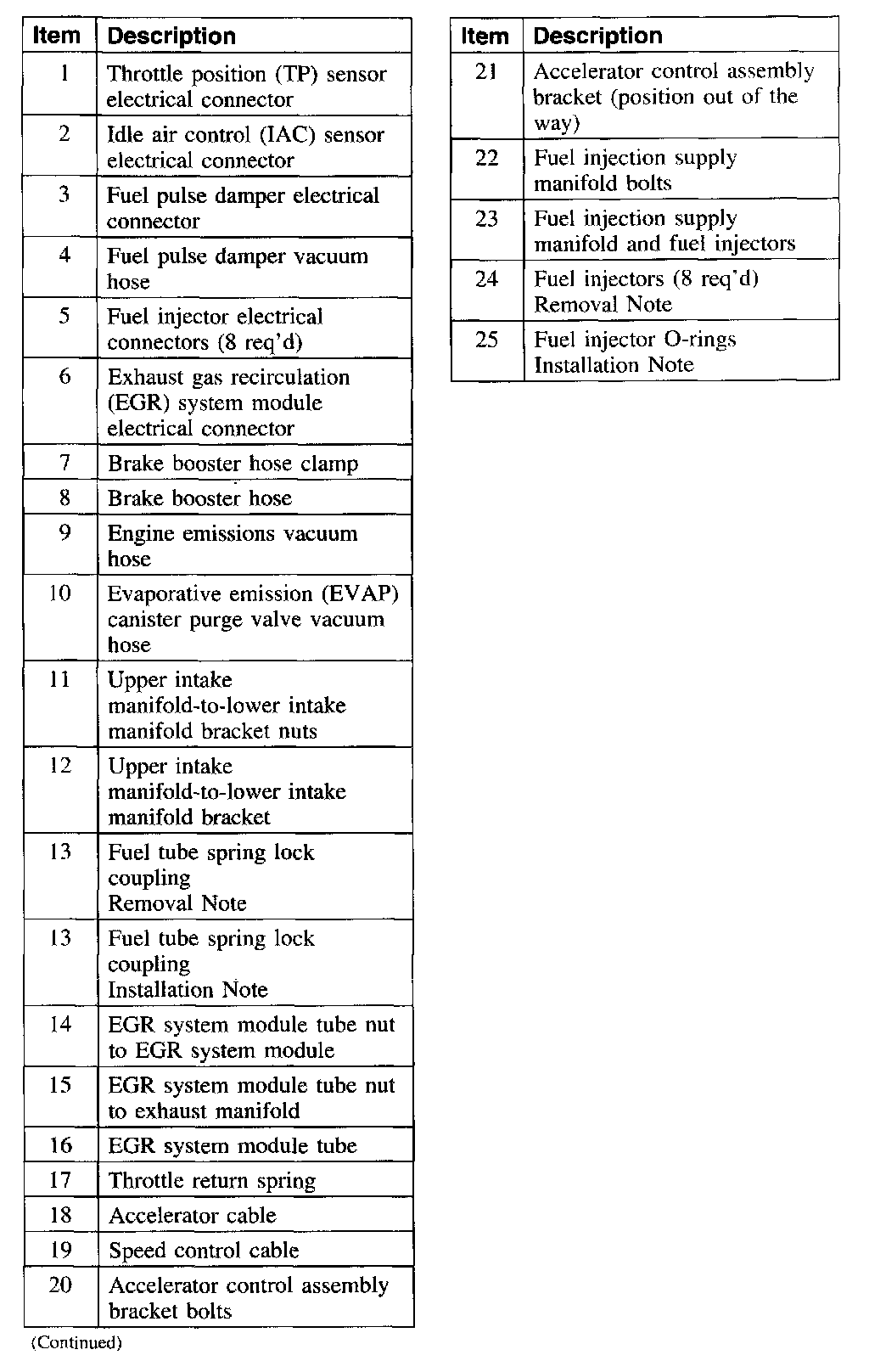

5. Remove the components in the order indicated in the illustration and table.

Item 13: Fuel Tube Spring Lock Coupling Removal Note

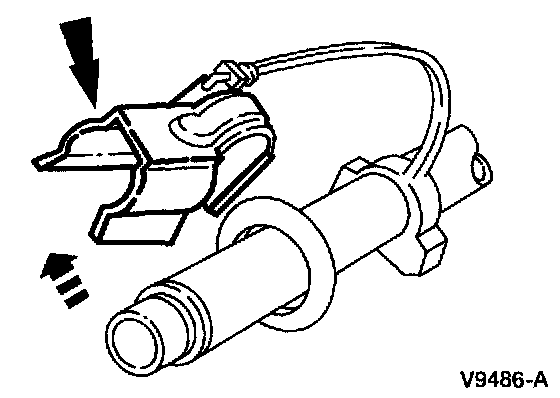

1. Remove the fuel tube safety clip.

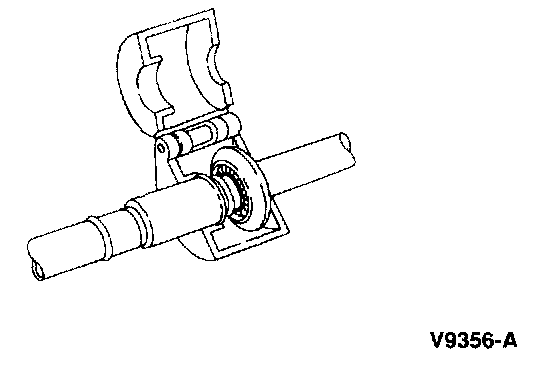

2. Install the special tool.

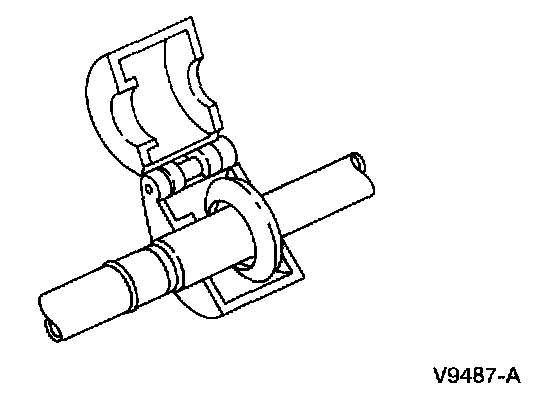

3. Close and push the special tool into the open side of the cage.

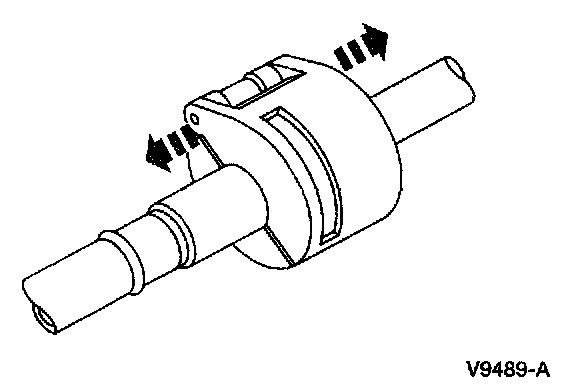

4. Separate the fuel tube fitting.







5. Remove the special tool.

Item 24: Fuel Injectors Removal Note

CAUTION: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.

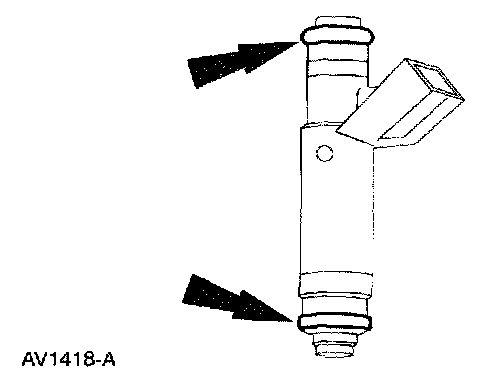

1. Install new O-ring seals.

INSTALLATION
1. To install, reverse the removal procedure.

Item 25: Fuel Injector O-rings Installation Note
1. Lubricate the new O-ring seals with clean engine oil before installing.

Item 13: Fuel Tube Spring lock Coupling Installation Note
1. Align the fuel tube fittings and press together until an audible click is heard.
2. Pull on the fittings to make sure they are fully engaged, and then install the safety clip.
