Lincoln Truck
>>
2004
>>
Aviator 2WD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Locations
>>
Harness Locations
>>
Catalyst Monitor Sensor (CMS) #12
Catalyst Monitor Sensor (CMS) #12

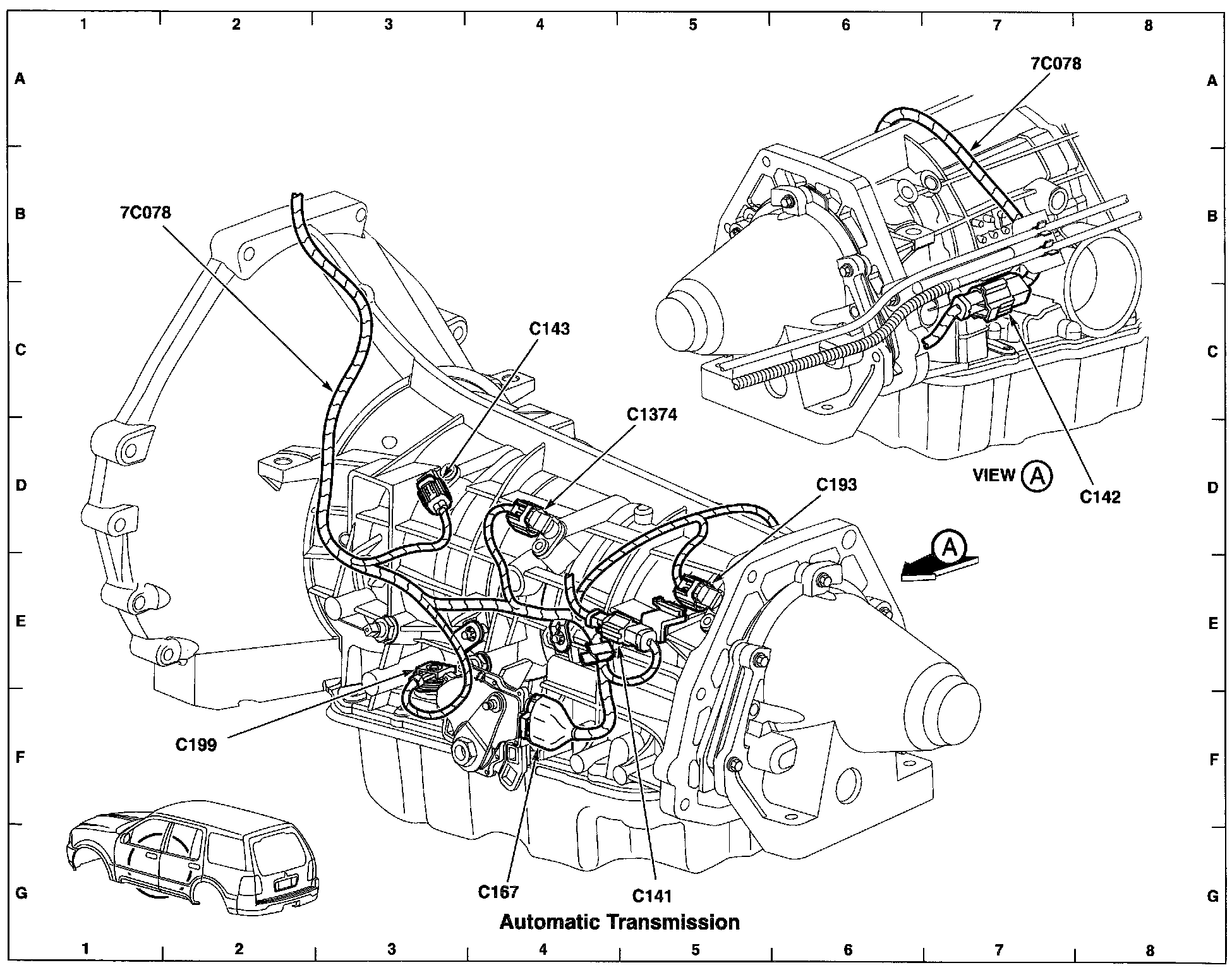

View 151-9:

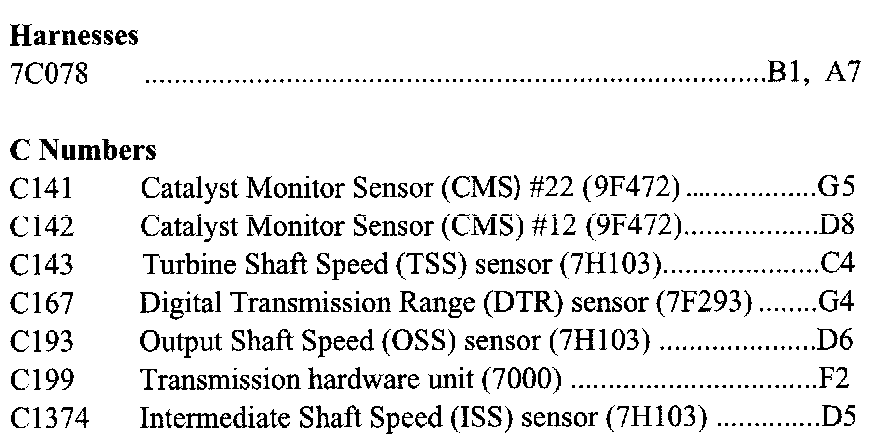

View 151-9 (Legend):
