Pinpoint Test C: Message Center Displays "WARNING TPMS SYSTEM FAULT"
Refer to Wiring Diagram schematic and connector information.

Normal Operation
If there is a fault in the TPMS, the message center receives information from the TPMS module. Faults such as low tire pressures, damaged or nonfunctional tire pressure sensors, and TPMS module DTC's are sent to the message center.

Possible Causes
- Low tire pressure(s)
- Tire pressure sensor(s)
- TPMS module DTC(s)

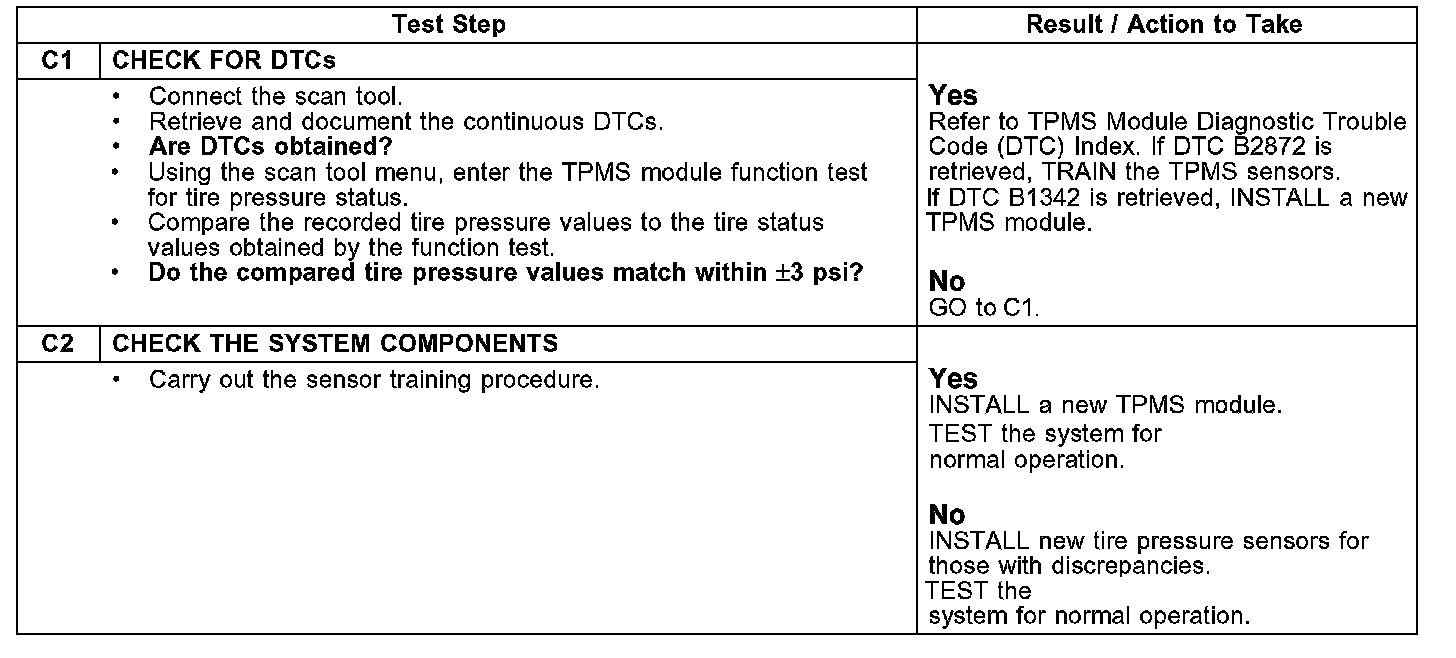

Test Steps C1-C2:

PINPOINT TEST C: MESSAGE CENTER DISPLAYS "WARNING TPMS SYSTEM FAULT"
