Test I

PINPOINT TEST I: INSUFFICIENT, ERRATIC OR NO HEAT

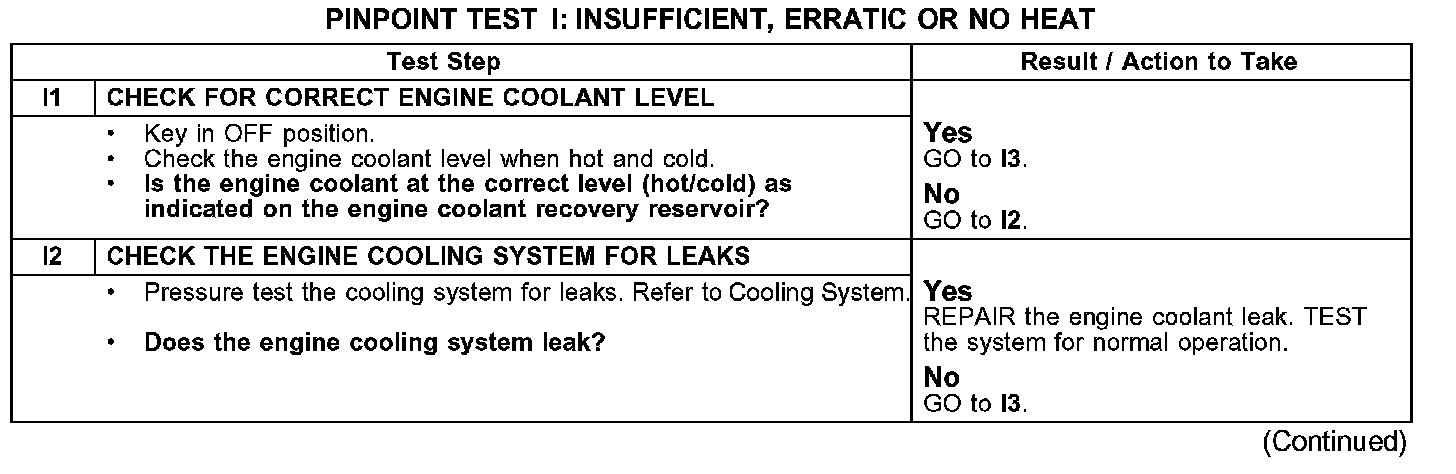

Test I1-I2:

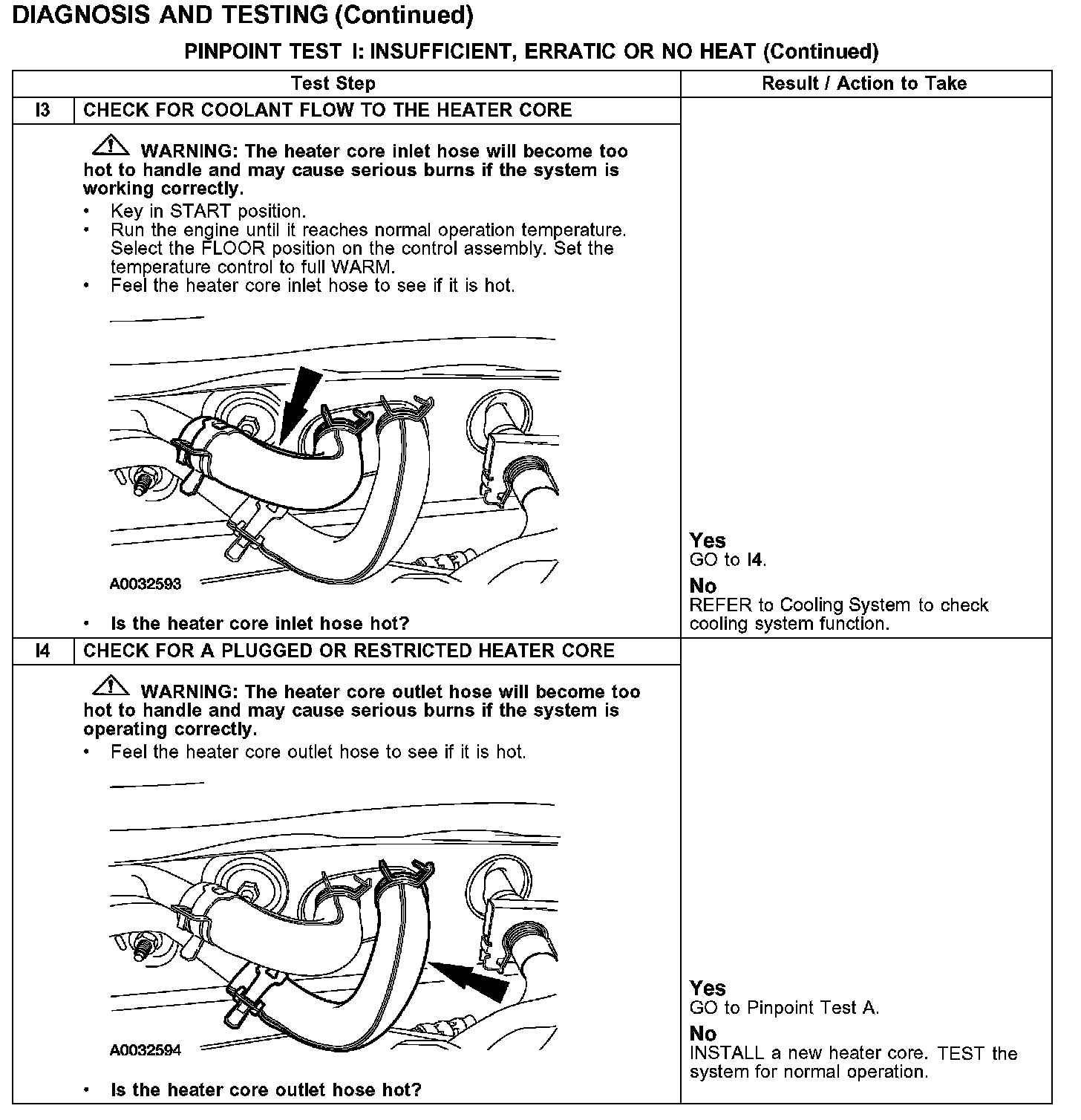

Test I3-I4:

Normal Operation
Under normal operation, warm coolant flows from the engine through the heater core and back to the engine.

Possible Causes
- Temperature blend door/actuator.
- Coolant level.
- Plugged heater core.
