Front

BLOWER MOTOR - FRONT

REMOVAL
1. Remove the RH lower instrument panel insulator.

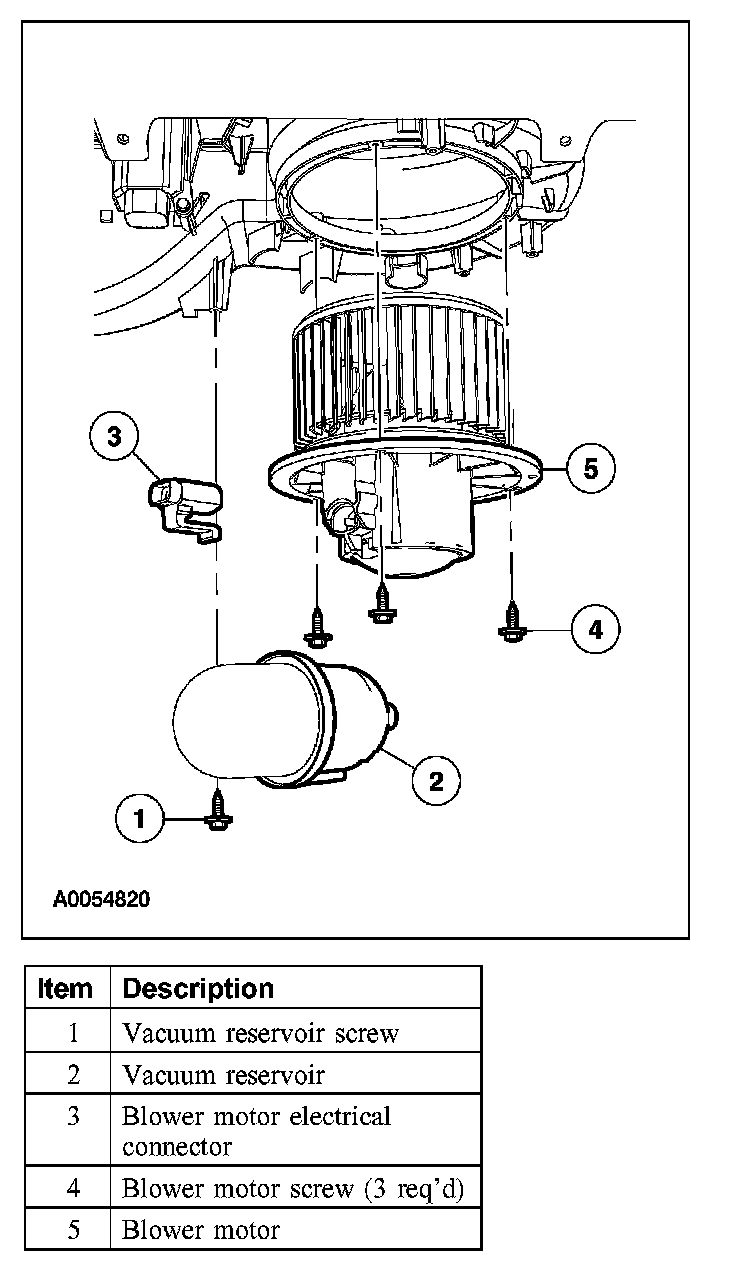

2. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install reverse the removal procedure.
