Home >> Lincoln Truck >> 2004 >> Aviator 2WD V8-4.6L DOHC VIN H >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Service and Repair >> Auxiliary

Auxiliary

BLOWER MOTOR - AUXILIARY

REMOVAL

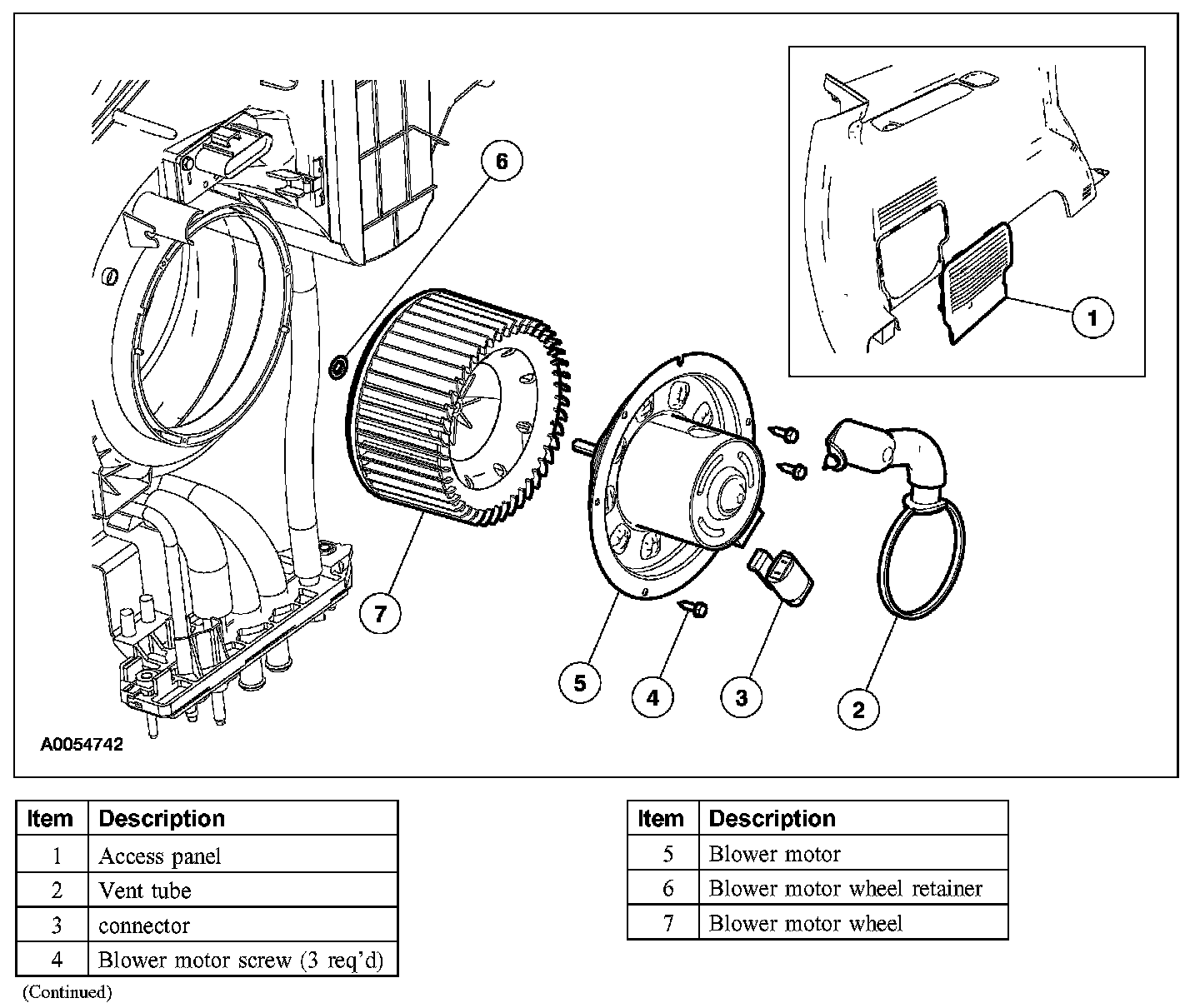

1. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
