Blower Motor Switch: Service and Repair

BLOWER MOTOR SPEED CONTROL

REMOVAL
1. Remove the variable assist power steering module screw and position the module aside.

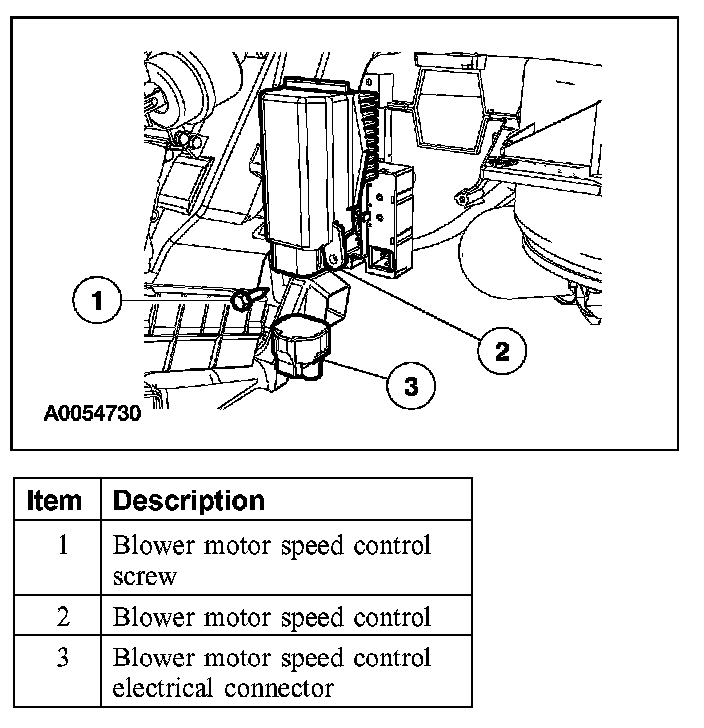

2. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
