Air Register: Service and Repair
INSTRUMENT PANEL REGISTERSREMOVAL

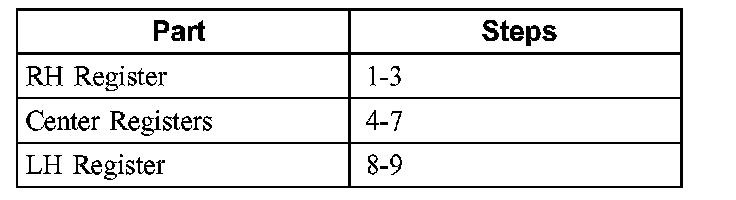

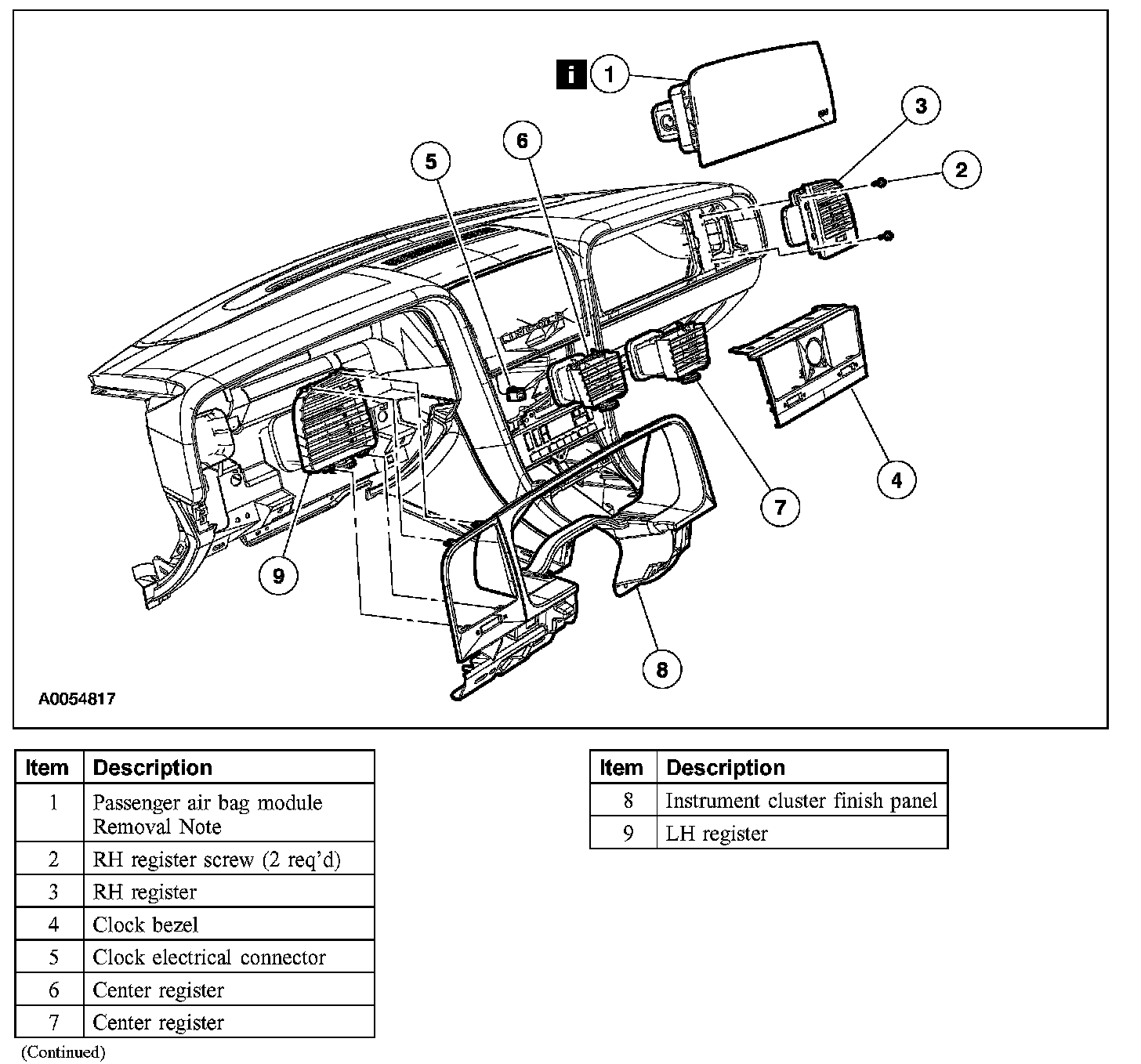

1. Remove the parts in the order indicated in the illustration and table.
To remove individual parts, only carry out the listed steps.
Item 1: Passenger Air Bag Module Removal Note
1. Remove the passenger side air bag module.
INSTALLATION
1. To install, reverse the removal procedure.
