Air Duct: Service and Repair

AIR DISTRIBUTION DUCTS

REMOVAL

Part 1:

Part 2:

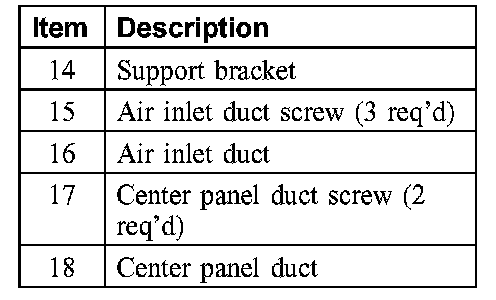

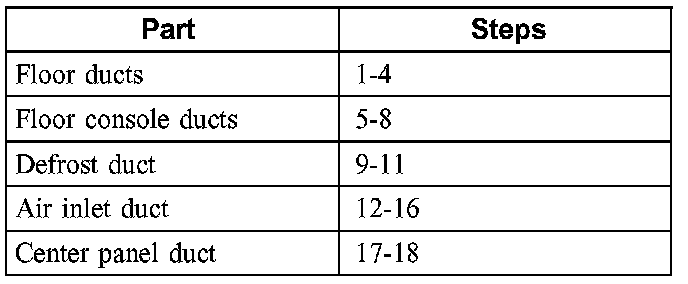

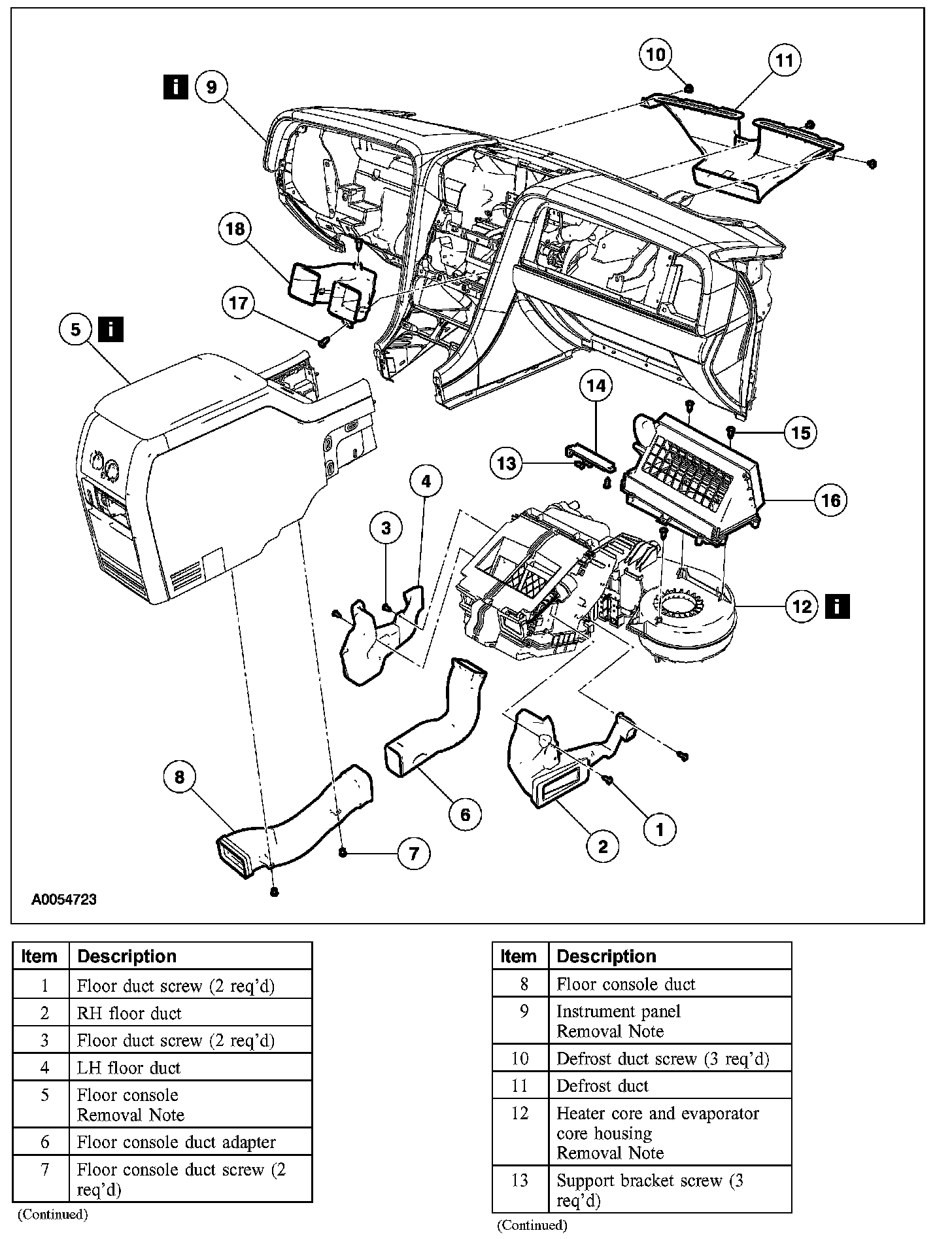

1. Remove the parts in the order indicated in the illustration and table.

To remove individual parts, only carry out the listed steps.

Item 5: Floor Console Removal Note
1. Remove the front floor console.

Item 9: Instrument Panel Removal Note
1. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

Item 12: Heater Core and Evaporator Core Housing Removal Note
1. Remove the heater core and evaporator core housing. Refer to: Heating and Air Conditioning, Housing Assembly HVAC, Service and Repair, Service and Repair

INSTALLATION
1. To install, reverse the removal procedure.
